Overview

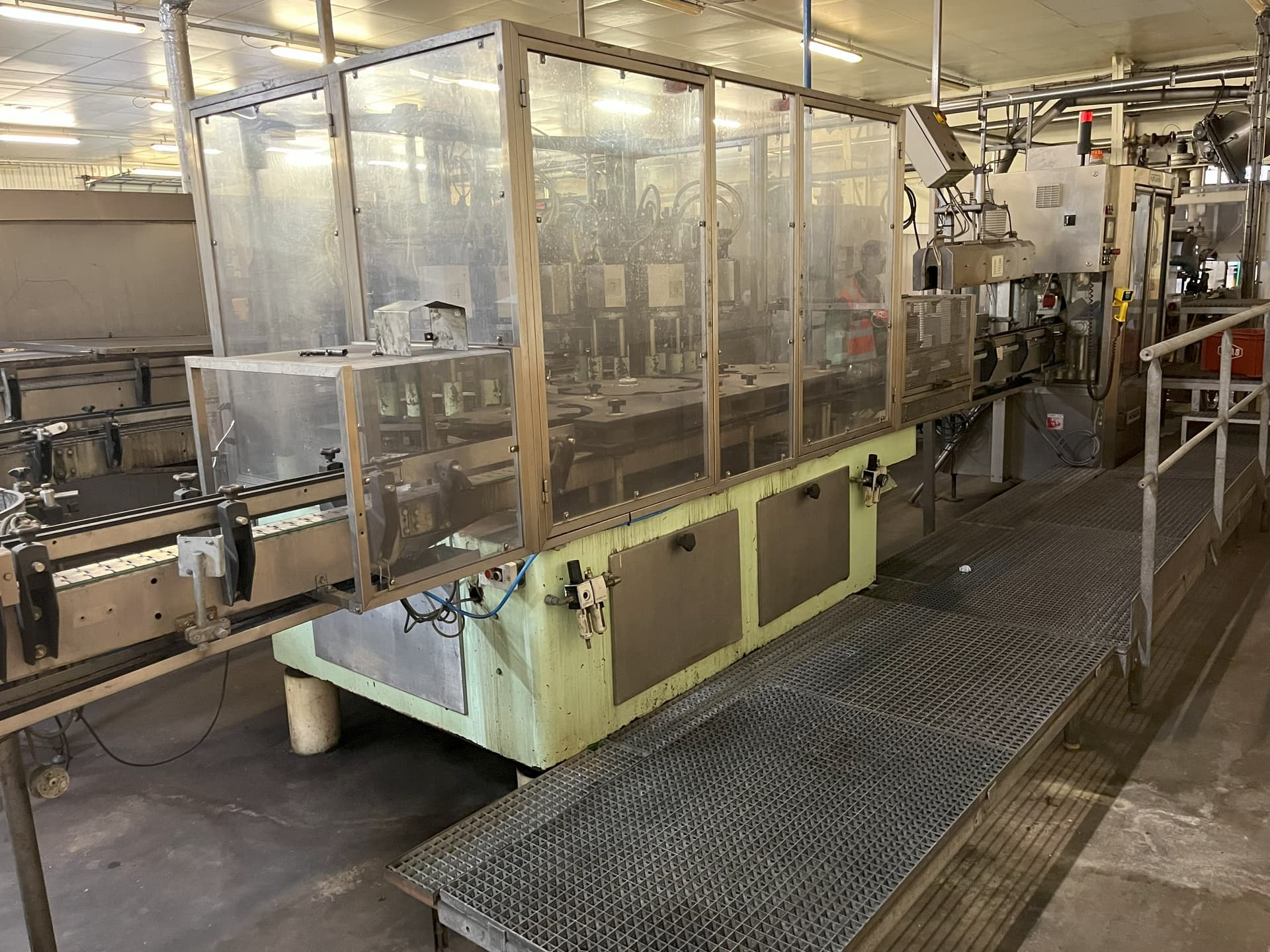

This rotary vacuum capping machine was manufactured in 2023 by Alwid (Germany). The machine is equipped with three vacuum capping heads and is configured for TO82 twist-off closures on round jars. It is in excellent condition and comes with infeed and outfeed conveyors. The machine is available immediately.

Technical data

• Capacity: approx. 1,000–1,400 jars/h
• Formats: Round jars Ø77/86 mm, 90 mm height; TO82 twist-off closures
• Working direction: Right to left
• Working height: Adjustable from 850 mm
• Electrical connection: 400 V, 50 Hz, 3-phase/N/PE
• Capping heads: 3 vacuum heads with torque adjustment via hysteresis clutch
• Conveyor: 1.5 m infeed + 1.5 m outfeed, stainless steel chain, width 82.5 mm
• Control: Siemens S7 HMI (German)
• Construction: V2A stainless steel base, drip tray, capping head unit, CE-compliant safety guarding with Makrolon panels and safety doors

Scope of Delivery

• Alwid Favorit-3SK rotary vacuum capping machine (2023)
• Integrated conveyors (1.5 m infeed + 1.5 m outfeed)

Note: Sorting unit and additional format parts can be offered optionally.
