KKT Kraus KLC 126 N Chiller (2004)

Overview

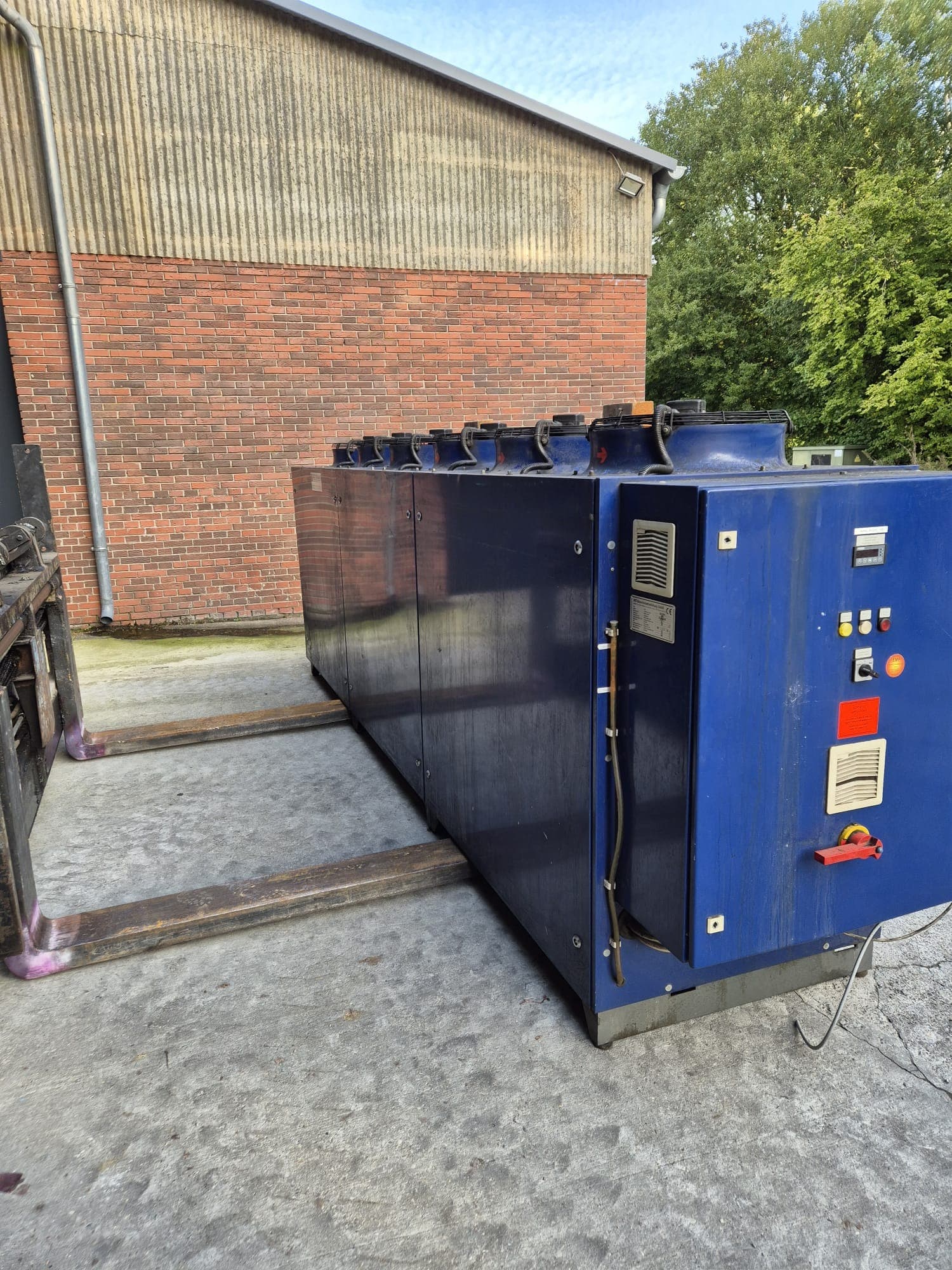

This KKT Kraus KLC 126 N is an air-cooled compact chiller for industrial process cooling, built in 2004 by KKT-Kraus Industriekühlung GmbH (Germany). The unit combines the refrigeration circuit, the air-cooled condenser with top-mounted fans and the control cabinet in one enclosed housing. The water circuit connects via two flanged connections with pressure gauge on the end face. It cooled the process water of a Krones Contiform S24 stretch blow moulder.

Technical data

• Manufacturer: KKT-Kraus Industriekühlung GmbH (Germany)
• Model: KLC 126 N
• Year of manufacture: 2004
• Machine type: air-cooled compact chiller
• Refrigerant: R407C, filling weight max. 43.5 kg
• Max. operating pressure: 28 bar
• Power supply: 400 V, 3 phases, 50 Hz
• Max. power input: 67.5 kW
• Max. current consumption: 127 A
• Main fuse: 160 A
• CE marked

Equipment

• Refrigeration circuit with air-cooled condenser coils along the side and fans on the roof
• Two flanged water connections with pressure gauge
• Control cabinet with main switch, indicator lamps and selector switch
• Separate electrical enclosure mounted on the housing

Condition

Used. In production until March 2026, dismantled by BEVMAQ in October 2026 and now in storage. Inspection on request.

Availability

Immediately. Location: Germany. Loading by arrangement.
