Overview

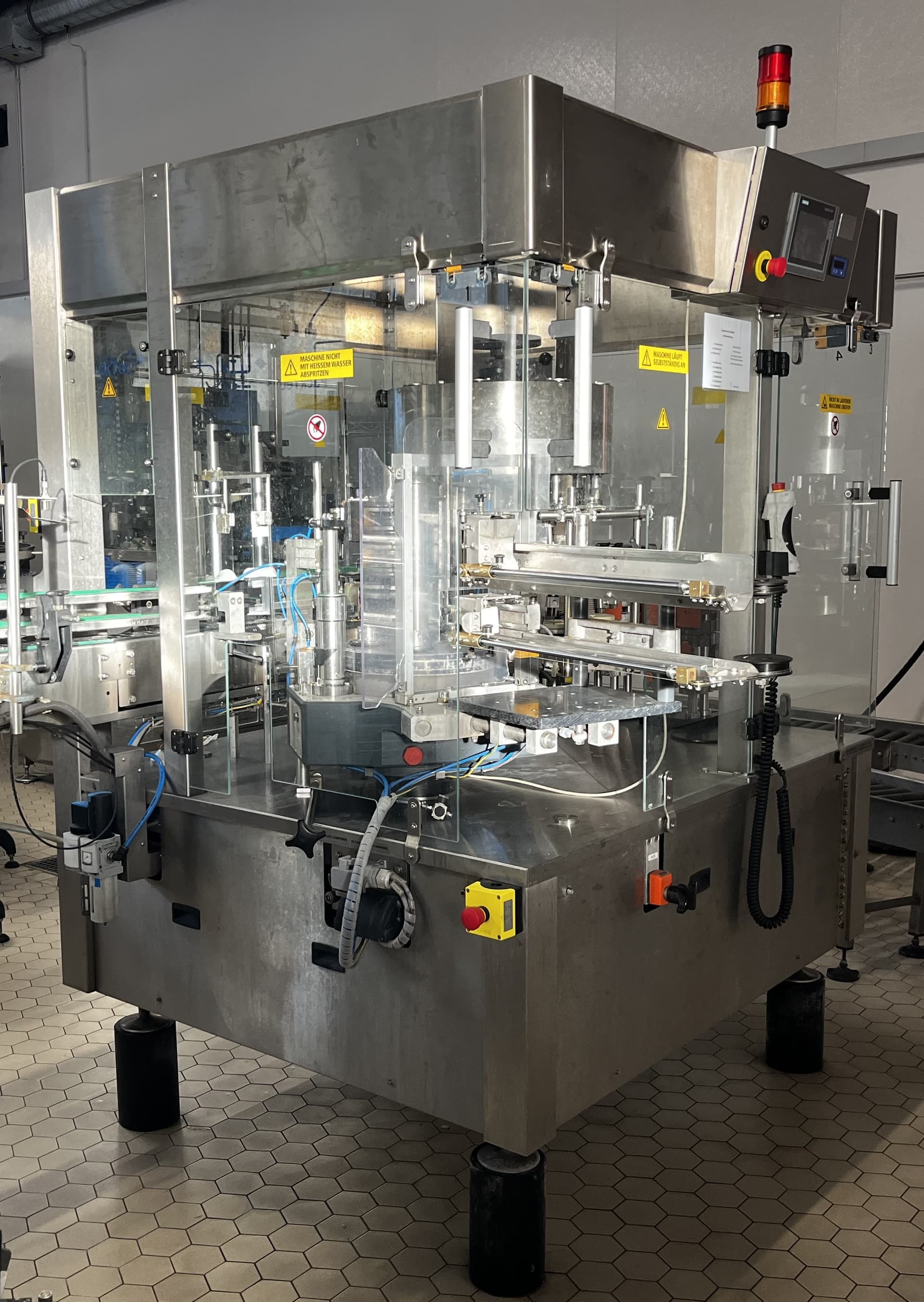

This cold glue labeling machine was manufactured in 2000 by Krones. The machine is designed for the application of cold glue labels on bottles. The machine is equipped with three labeling aggregates (front, back, and neck/seal label) and operates with a 20-head rotary table, making it suitable for medium-speed beverage production lines. The unit includes an integrated Krones Checkmat inspection system for quality control and comes with 11 bottle formats (0.5 – 1.0 L). Maintenance was performed as required.

Technical data

• Capacity: up to approx. 15,000 bph

• Formats: 0.5 L – 1.0 L, 11 formats

• Application: Cold glue labeling of bottles

• Configuration: 20-head rotary table, 3 labeling aggregates

• Label positions: Front, back, neck/seal label

• Utilities: Standard Krones control system

• Incl. 3 glue pumps for cold glue system, Inspection system (Krones Checkmat), Format parts, Documentation
