NIKO - Tunnel Pasteurizer (2007)

75,000 (ExWorks)

Get an official quote

Country:

Germany

Year:

2007

Category:

Tunnel Pasteurizer

Manufacturer:

NIKO

Model:

-

Availability:

Immediately

SKU:

DE-TUN-NIK-2007-00001

Overview

The tunnel pasteurizer was built in 2007 by the German manufacturer NIKO.

Technical details

  • Capacity:
    • Cans: 15,000 (500 ml standard) - 25,000 (250 ml slim) d/h
    • Bottles: 14,000 (500 ml longneck) - 18,000 (330 ml longneck) b/h
  • Dimensions: 16,000 x 4,800 x 2,000 mm
  • Treatment area: 14,450 x 3,200 mm = 46 m2
  • Chain: Plastic mat chain
  • Empty weight: approx. 8,000 kg
  • Operating weight: approx. 34,000 kg
  • Number of feet: 14 (2 x 7)
  • Load per foot: approx. 2,430 kg
  • Treatment zones: 9
    • Heating zone 1 ↔ Cooling zone 3
    • Heating zone 2 ↔ Cooling zone 2
    • Heating zone 3 ↔ Cooling zone 1
    • High heating zone
    • Holding zone
    • Cooling zone 4
  • Pumps: 10 pieces á 2.2 kW
  • Main drive: SEW (0.55 kW)
  • Inlet and outlet: SEW (0.75 kW each)
  • Can blower: 1.2 kW
  • Control system: Siemens S7
  • Connections:
    • Cooling water DN 32
    • Compressed air 3/8" (6 bar / 1,000 l/h)
    • Fresh water DN 50 (approx. 5 m3/h)
    • Steam connection DN 40 (saturated steam 5 bar)
    • Condensate connection DN 25

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

If you have any further questions please contact us

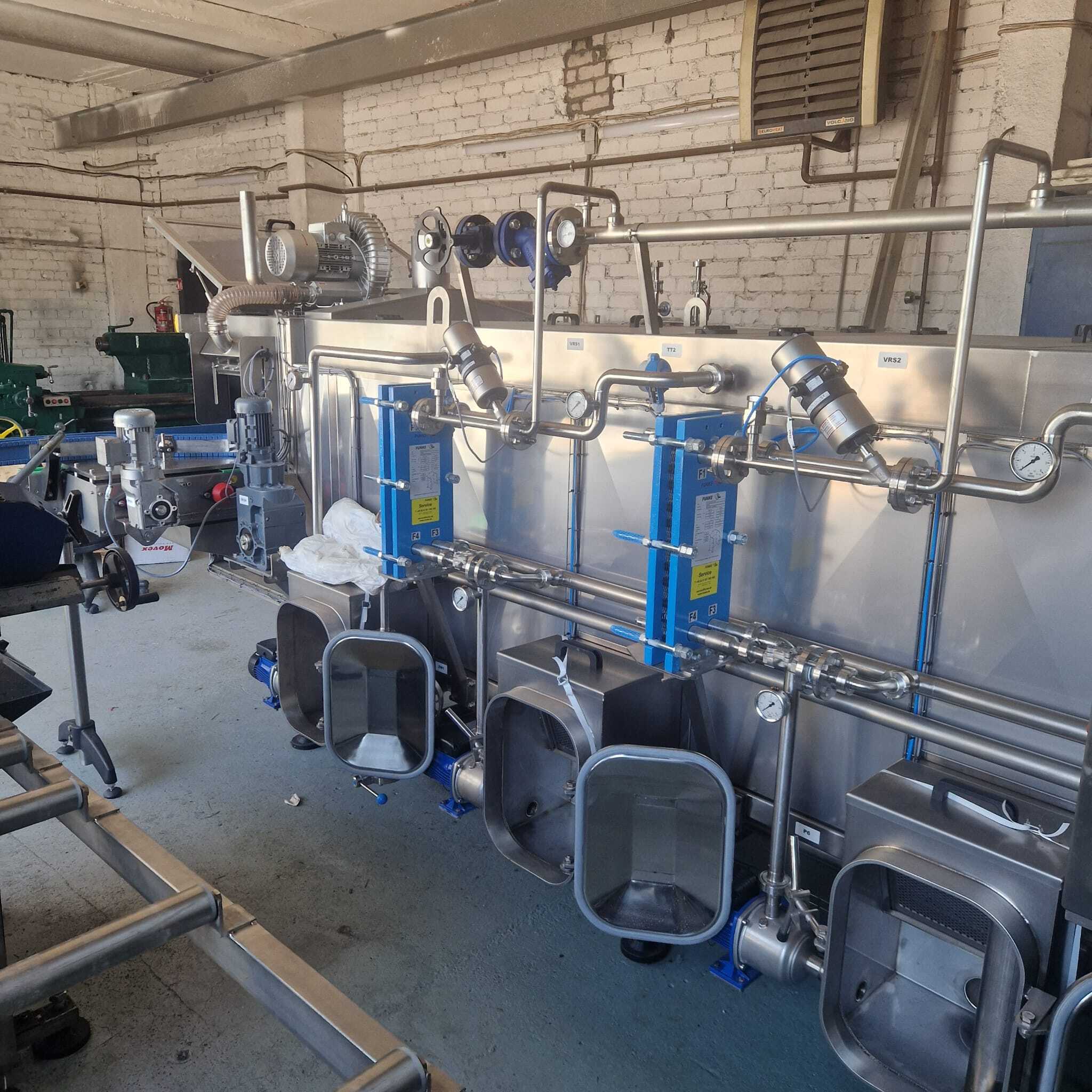

Image of the product
