CLEVER Machines GS 307 Sleeve Labeler (2019)

Overview

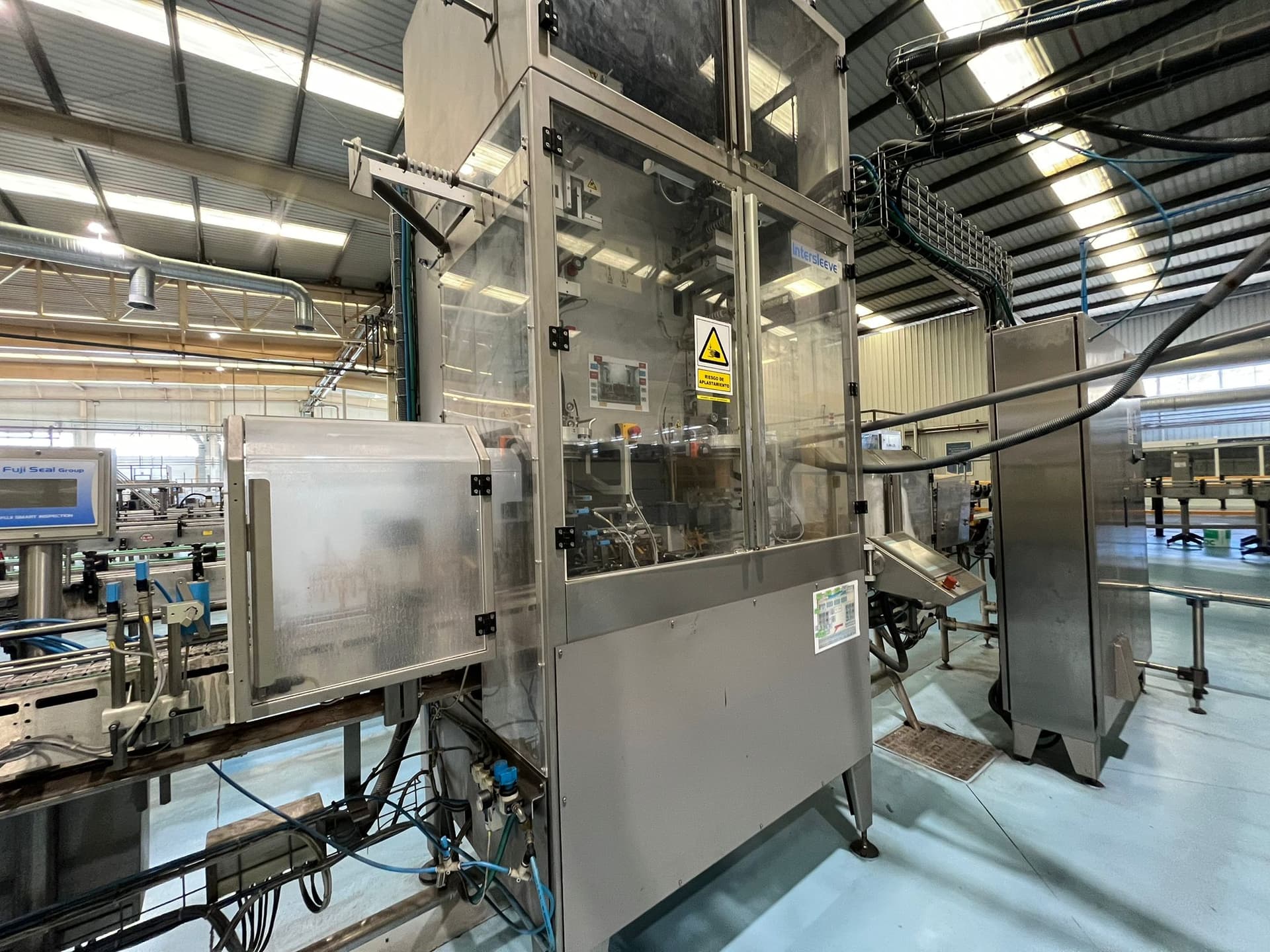

This Clever Machines S.r.l. GS 307 is a rotary shrink-sleeve label applicator, built in 2019 and supplied as a complete line together with an STJ3 steam shrink tunnel. It applies partial or full-body shrink-sleeve labels to PET bottles.

A single-head sleeve feeding and cutting unit sits over a rotary star-wheel carousel, with the steam-powered STJ3 tunnel shrinking the sleeves downstream. The control system is a modern Allen-Bradley / Rockwell architecture (PowerFlex 525 drives, Kinetix 5500 servo drives and an Allen-Bradley PLC). The line is set up for 500, 1,000 and 1,500 ml PET formats.

Technical data

• Manufacturer: Clever Machines S.r.l.
• Model: GS 307 (line: GS 307 applicator + STJ3 steam shrink tunnel)
• Year of manufacture: 2019
• Machine type: rotary shrink-sleeve label applicator with steam shrink tunnel
• Applicator: single-head sleeve feeding and cutting system
• Capacity: 12,000 containers/h (manufacturer-rated per OEM technical data); seller reports production speeds up to 15,000 bph
• Bottle formats: 500 / 1,000 / 1,500 ml PET
• Bottle diameter: up to 120 mm
• Sleeve-label height: 40 - 350 mm
• Application: partial or full-body sleeve labels
• Control: Allen-Bradley / Rockwell (PowerFlex 525 drives, Kinetix 5500 servos, PLC)
• Power supply: 400 V, 50 Hz, 3-phase; approx. 10 kW installed; 20 A; Icc 10 kA; IP 55
• Compressed air: 6 bar min, approx. 150 l/min (approx. 70 m³/h)
• Working height: 1,300 mm
• Weight: approx. 1,800 kg

Equipment

• Clever GS 307 single-head sleeve label applicator
• STJ3 steam shrink tunnel
• Format / change parts for 500 / 1,000 / 1,500 ml PET bottles
• OEM technical documentation

Condition

Used. Photographs show a clean, well-maintained stainless-steel machine with modern controls and normal signs of production use. The seller reports the machine as being in excellent condition with approximately 3,000 operating hours, dismantled and stored following the end of its private-label production.

Availability

Immediately available. Location: Italy. The machine is dismantled and stored, ready for loading; preparation, dismantling and truck loading by the seller (EXW loaded). Inspection on request.
