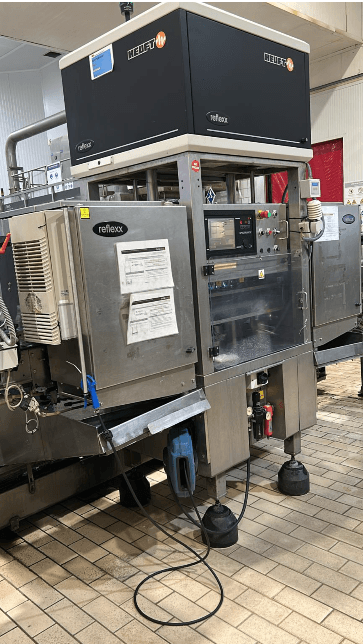

Heuft Glas InLine reflexx IR Empty Bottle Inspector (2011)

33,000 (ExWorks)

Get an official quote

Country:

Germany

Year:

2011

Category:

Inspection

Manufacturer:

Heuft

Model:

Glas InLine reflexx IR

Availability:

Immediately

SKU:

DE-INS-HEU-2011-00001

Overview

This Heuft Glas InLine reflexx IR is an inspection machine for empty bottles, designed for quality control in filling lines. The machine has a maximum output of 46,000 bottles per hour and was originally delivered in December 2011. It is in very good condition and ready for use at short notice. The flow direction is from left to right and it is equipped with a Secomak blower instead of a compressed air blow-off system.

Technical details

  • Output: Maximum 46,000 bottles/hour
  • Flow direction: Left to right
  • Equipment:
    • Two triggers
    • Secomak blower
    • Transponder recognition for RFID test bottles
    • Rejection monitoring
    • Heuft HLAN network (can be retrofitted as an option)
    • Two-way rejection Delta K to the right
    • Four type licenses
    • Delta K tripods for belt height of 1130 mm
    • Two fluids for lye detection

Missing components

  • Infeed control (must be added if required)
  • Thread blow-off (must be added if required)
  • Documentation (not available, can be replaced)

Controls

  • Monitoring of the incoming bottle flow (optional)
  • Output of a stop signal if bottles are too high, too wide or lying down
  • Inspection of the bottle base
  • Inspection of the mouth sealing surface
  • Inspection of the thread
  • Inspection of the inner and outer side wall
  • Detection of conductive liquids (e.g. lye)
  • Detection of residual liquids (e.g. oils, paints) using IR technology
  • Rejection of faulty containers or output of a rejection signal
  • Monitoring of the rejection process

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

If you have any further questions please contact us

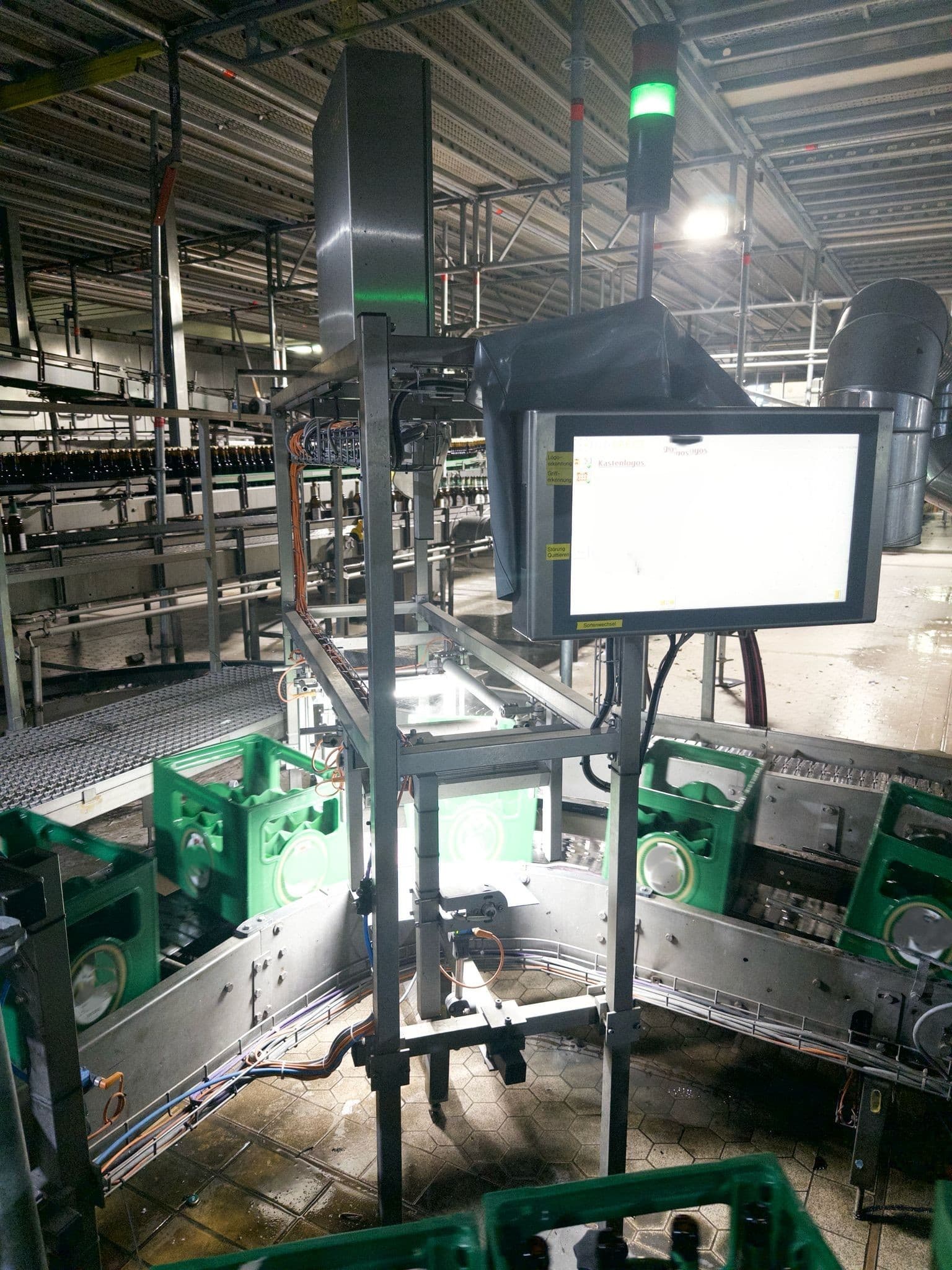

Image of the product
