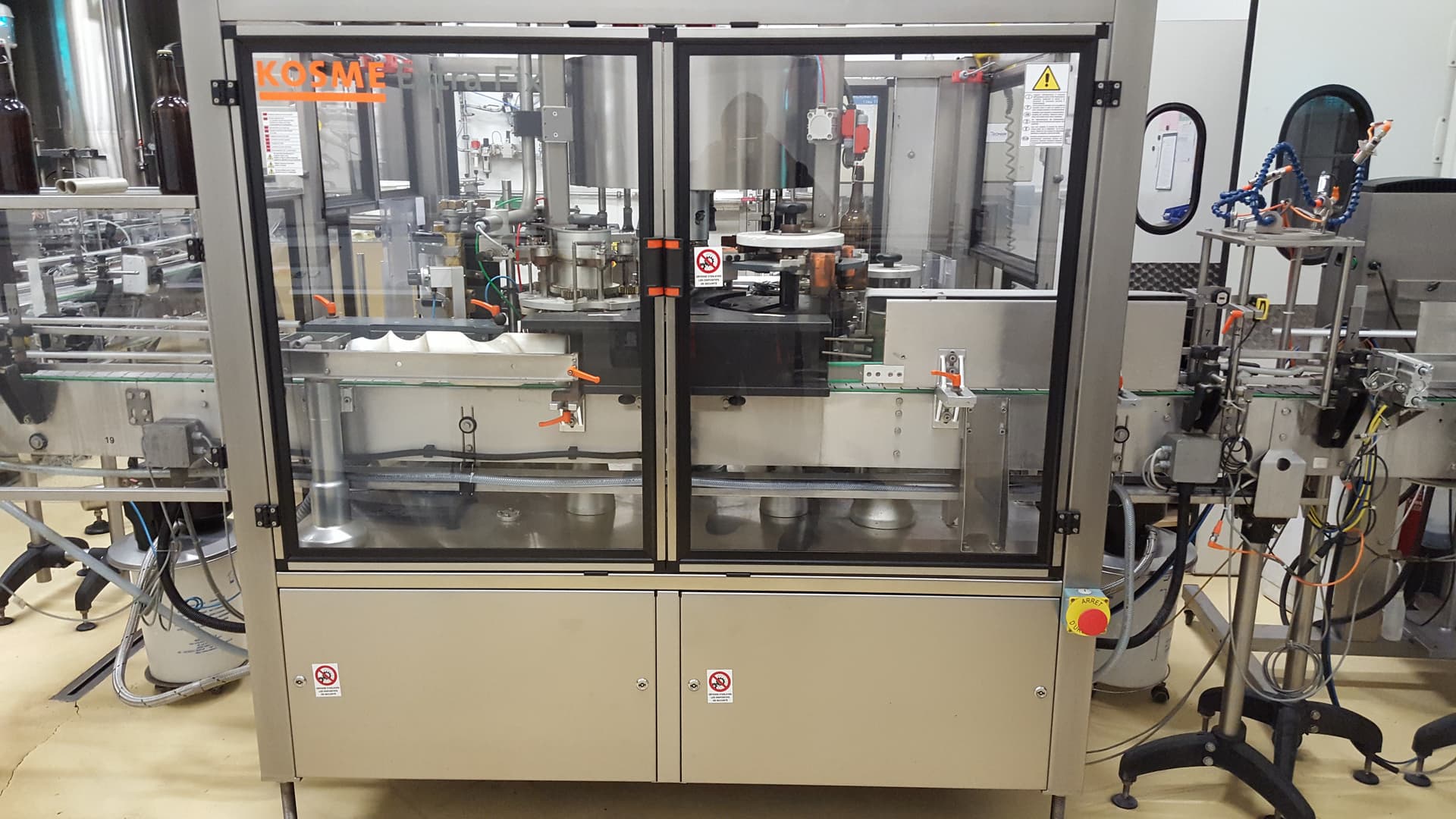

KOSME EXTRAFIX 12T Cold Glue Labeler (2005)

Overview

This KOSME EXTRAFIX 12T is a rotary combination labeller for glass wine bottles, built in Italy in 2005. Five labelling stations - three self-adhesive and two cold glue - work around a 12-plate carousel, so front, back and neck labels in both technologies can be applied in one pass.

The machine is rated at 12,000 bottles per hour and has run on 750 ml, 375 ml and 1,000 ml bottles in a winery. It is still installed and under power, and can be visited by appointment.

Technical data

• Manufacturer: KOSME
• Model: EXTRAFIX 12T
• Year of manufacture: 2005
• Machine type: rotary combination labeller (self-adhesive + cold glue)
• Capacity: up to 12,000 bottles per hour
• Container: glass wine bottles, 750 ml, 375 ml and 1,000 ml
• Bottle plates: 12
• Labelling stations: 5 (3 self-adhesive, 2 cold glue)
• Power supply: 400 V, 3 phases + PE, 50 Hz
• Installed power: 7 kW
• Weight: approx. 4,200 kg
• CE marked

Equipment

• 3 self-adhesive labelling stations, each with its own control display, label reel unwinder and backing-paper rewinder
• 2 cold glue stations with label magazine and glue pallets
• Rotary carousel with 12 bottle plates and centring bells
• Infeed screw, infeed and outfeed star wheels, bottle conveyor with guide rails
• Control cabinet with operator panel
• Stainless steel frame with transparent safety guarding

Condition

Used machine, still installed and connected. Can be inspected on site by appointment.

Availability

Available immediately. Location: France. Sold EXW; dismantling and truck loading are not included.
