Overview

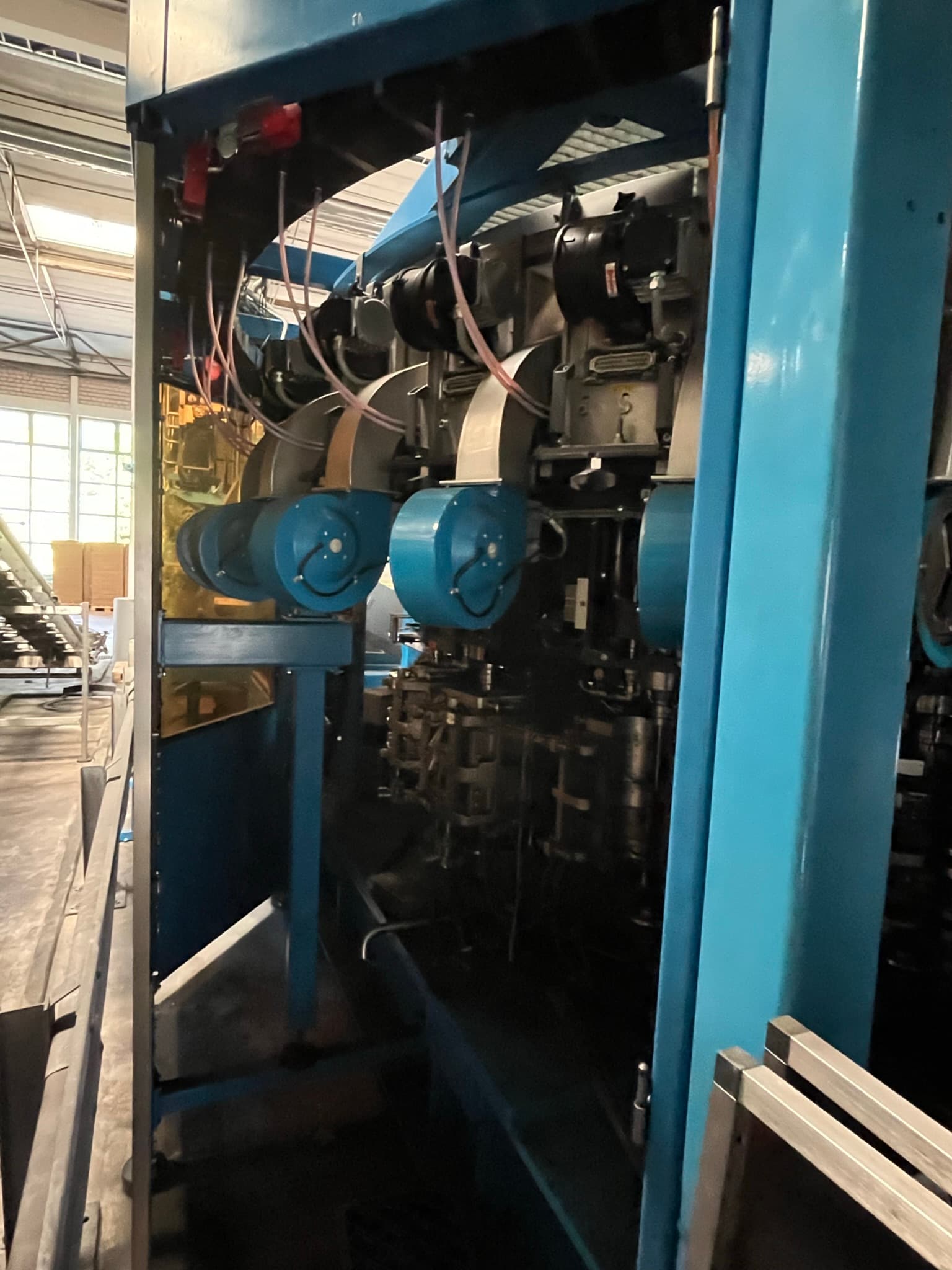

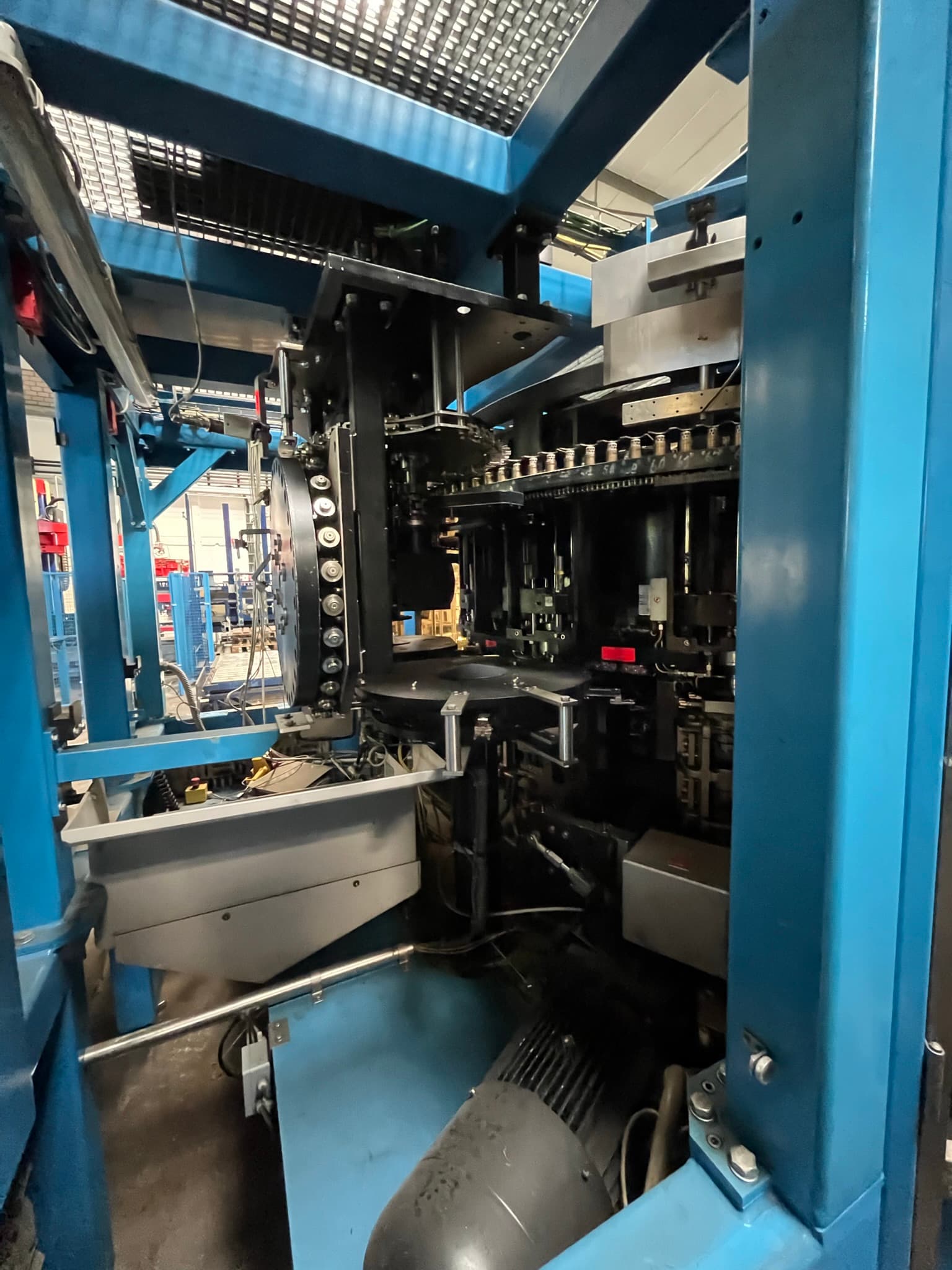

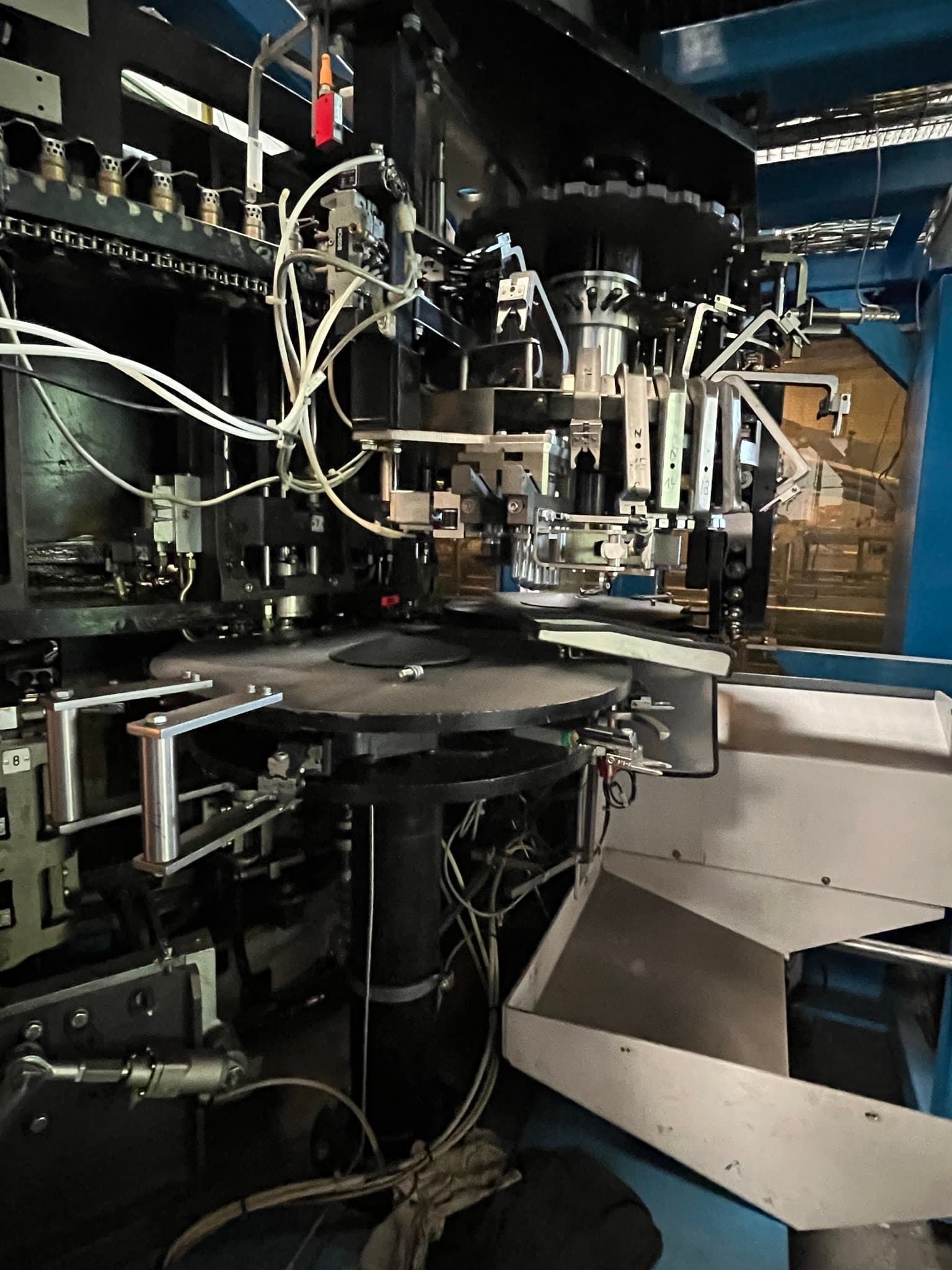

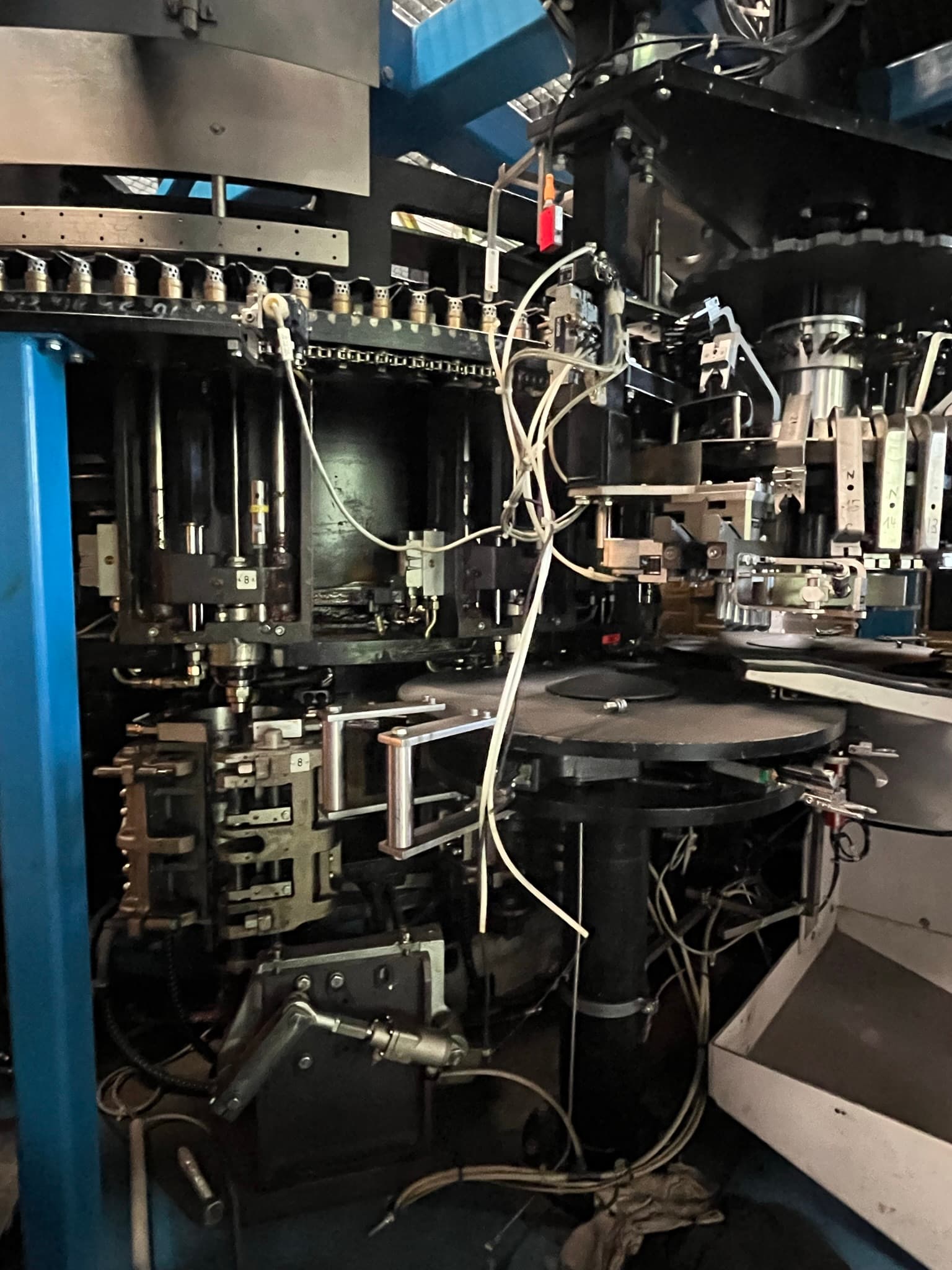

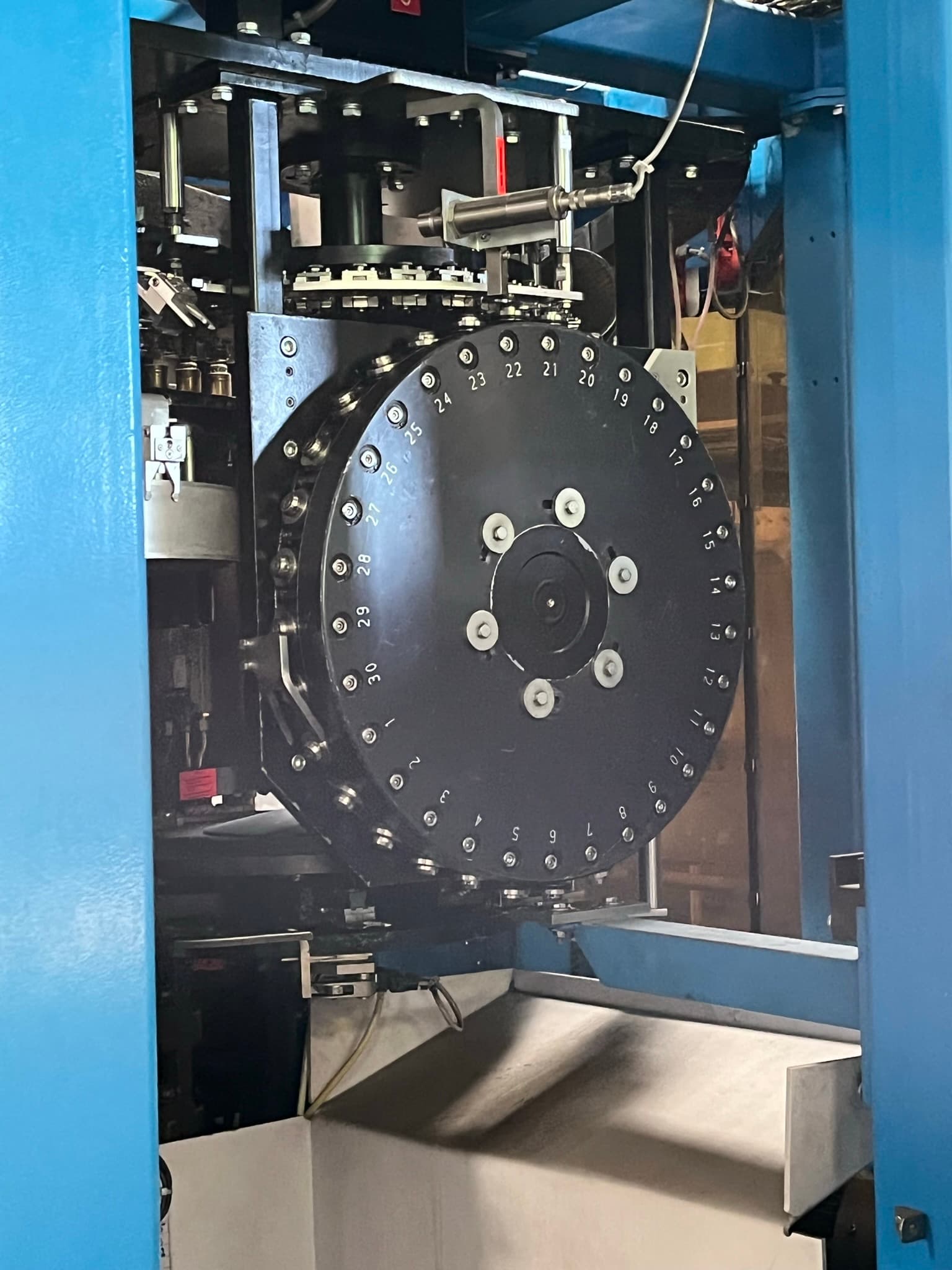

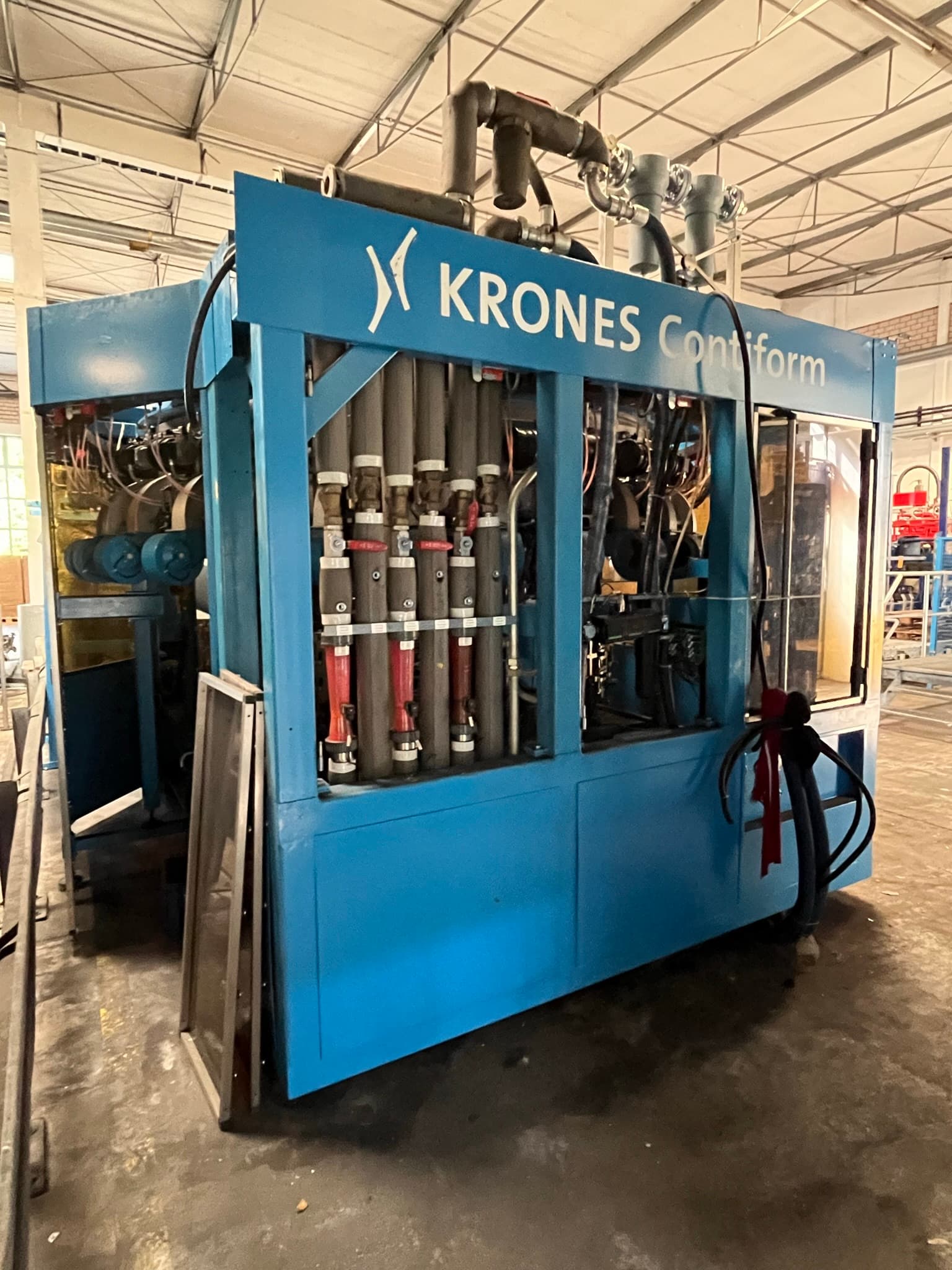

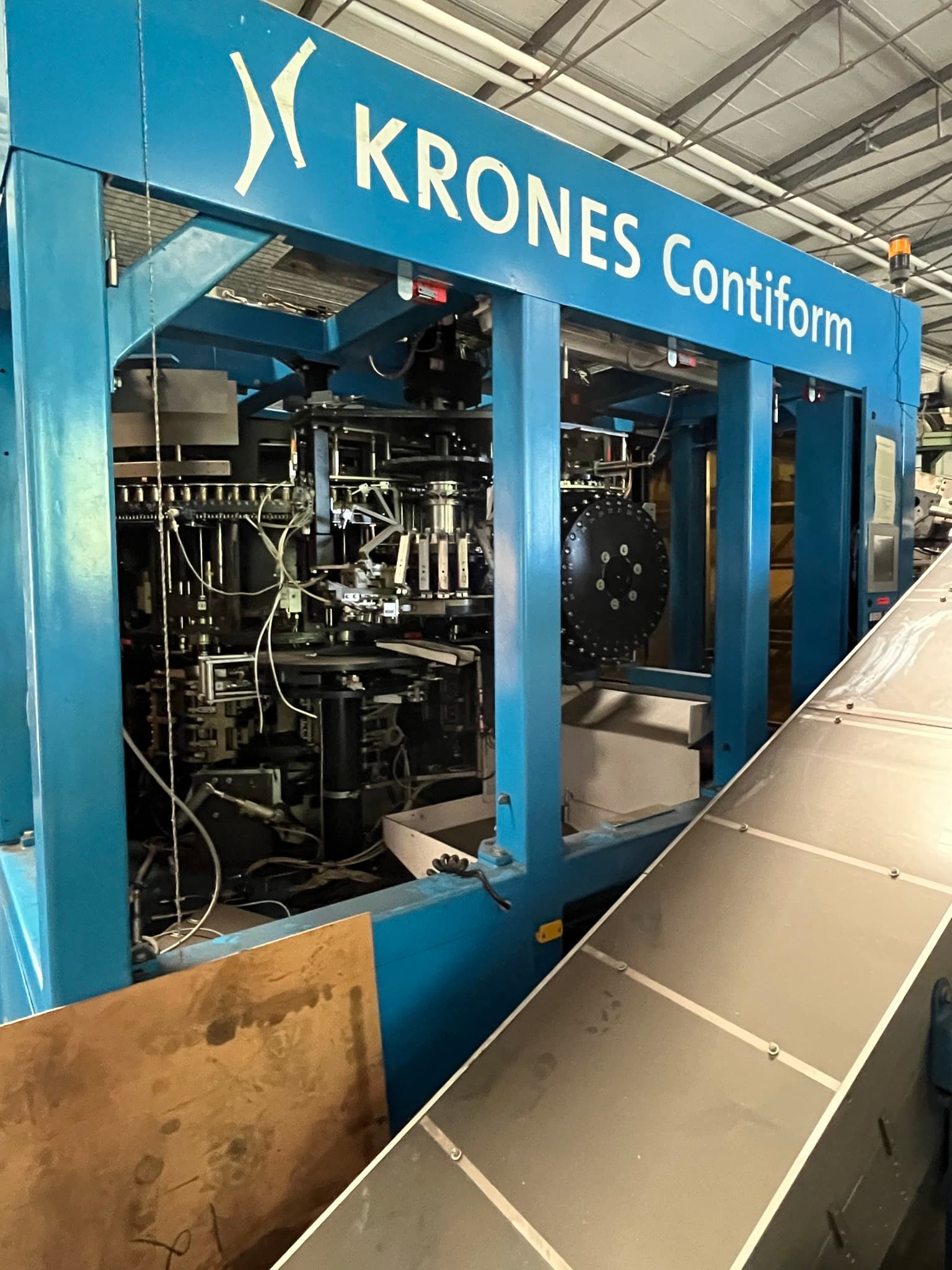

The stretch blow moulding machine KRONES Contiform was manufactured by KRONES in 2002. The machine has 12 cavities. It was used in a non-returnable pet line in a mineral water company in Germany. In 2015 it was replaced by a newer machine with higher capacity and less energy consumption. This machine was disassembled and properly stored as backup solution. The blow moulder comes with a cooling system, preform feeding and blow moulds for 0,5l; 1,0l and 1,5l.



Tech Specs:

• Capacity: 15,600 bph at 1,5l bottle volume

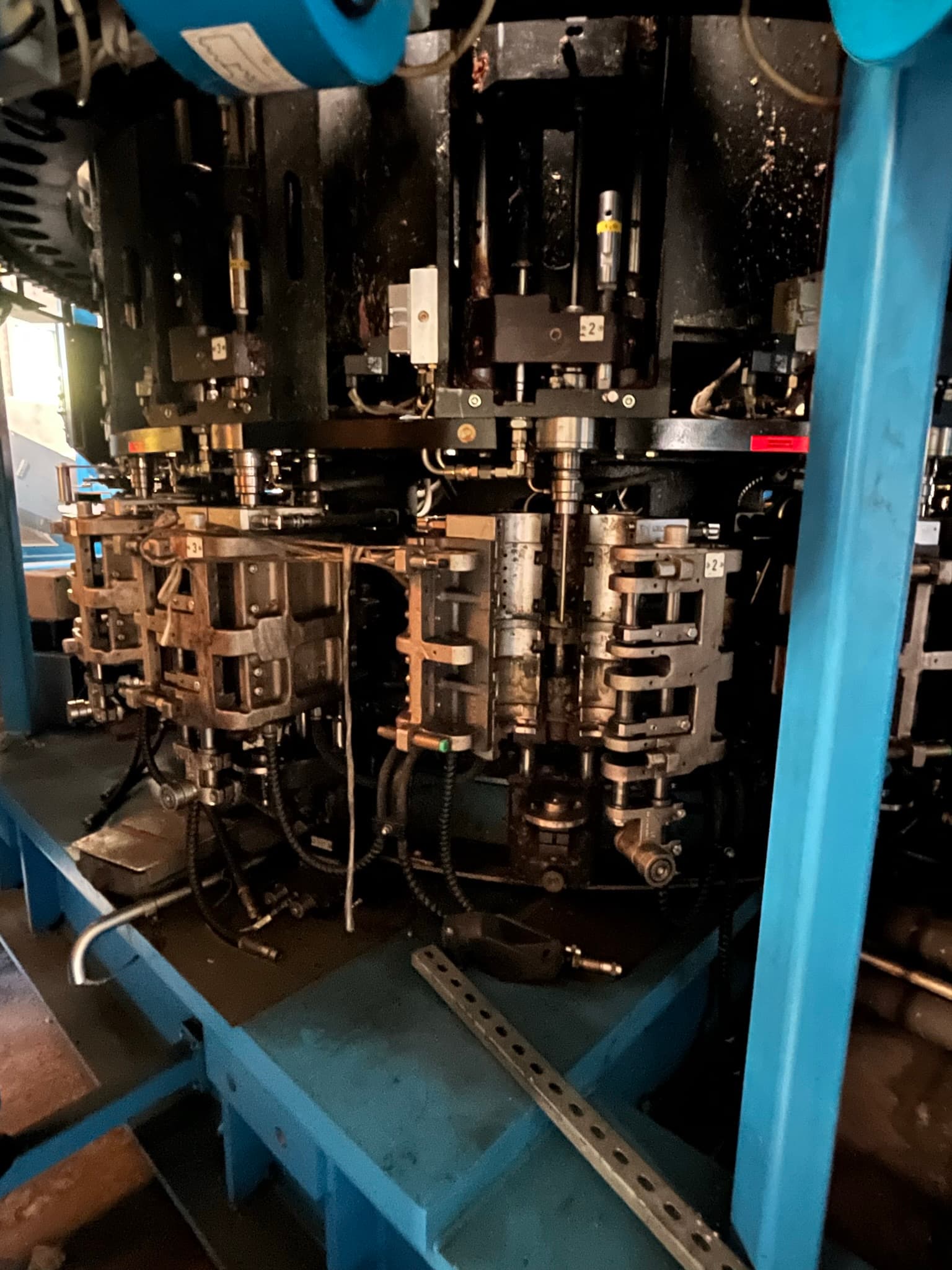

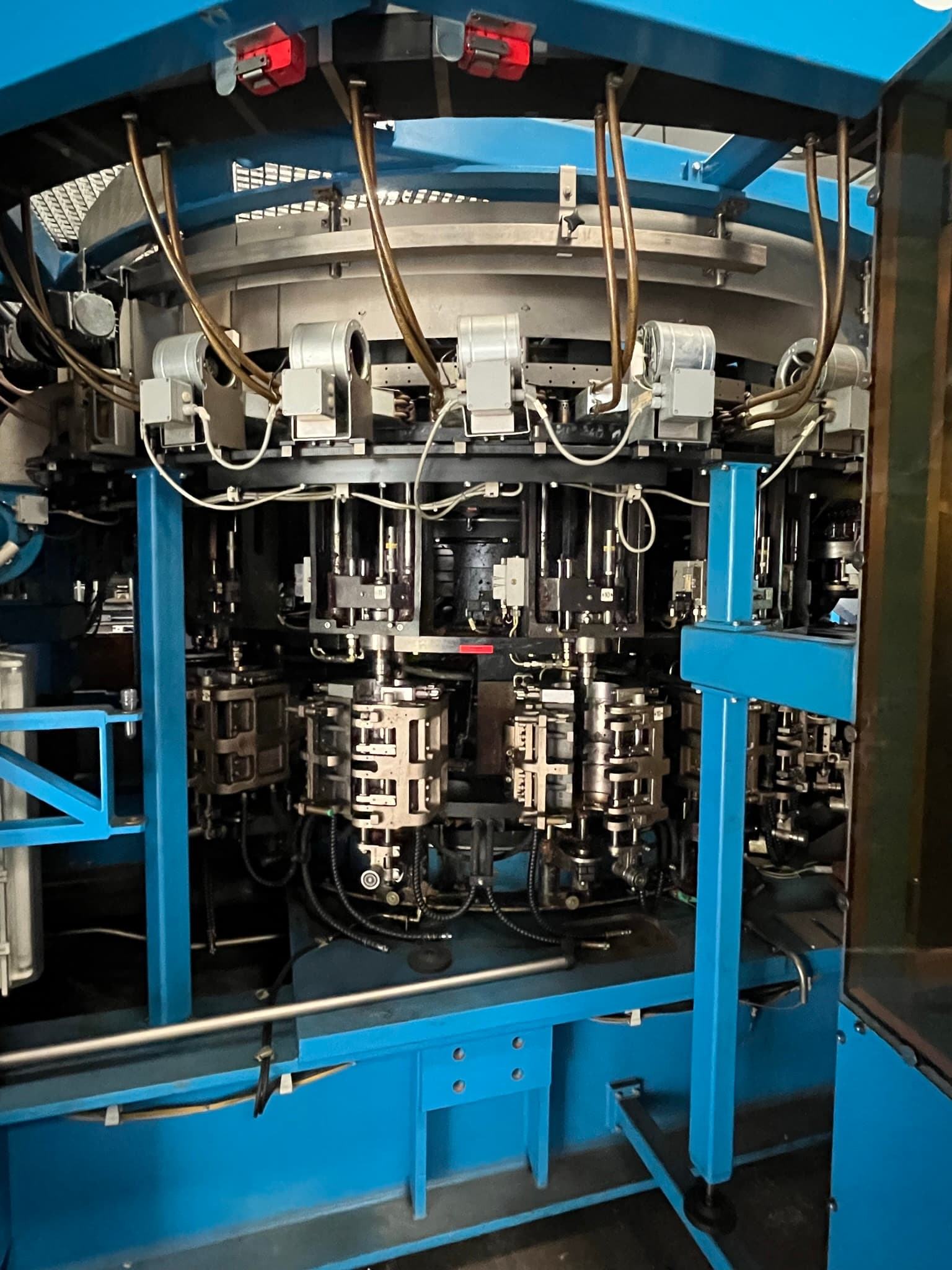

• Number of blowing stations: 12
• Control: Siemens S5
• Blowing pressure: 40bar
• Flow rate: 250 m^3/h

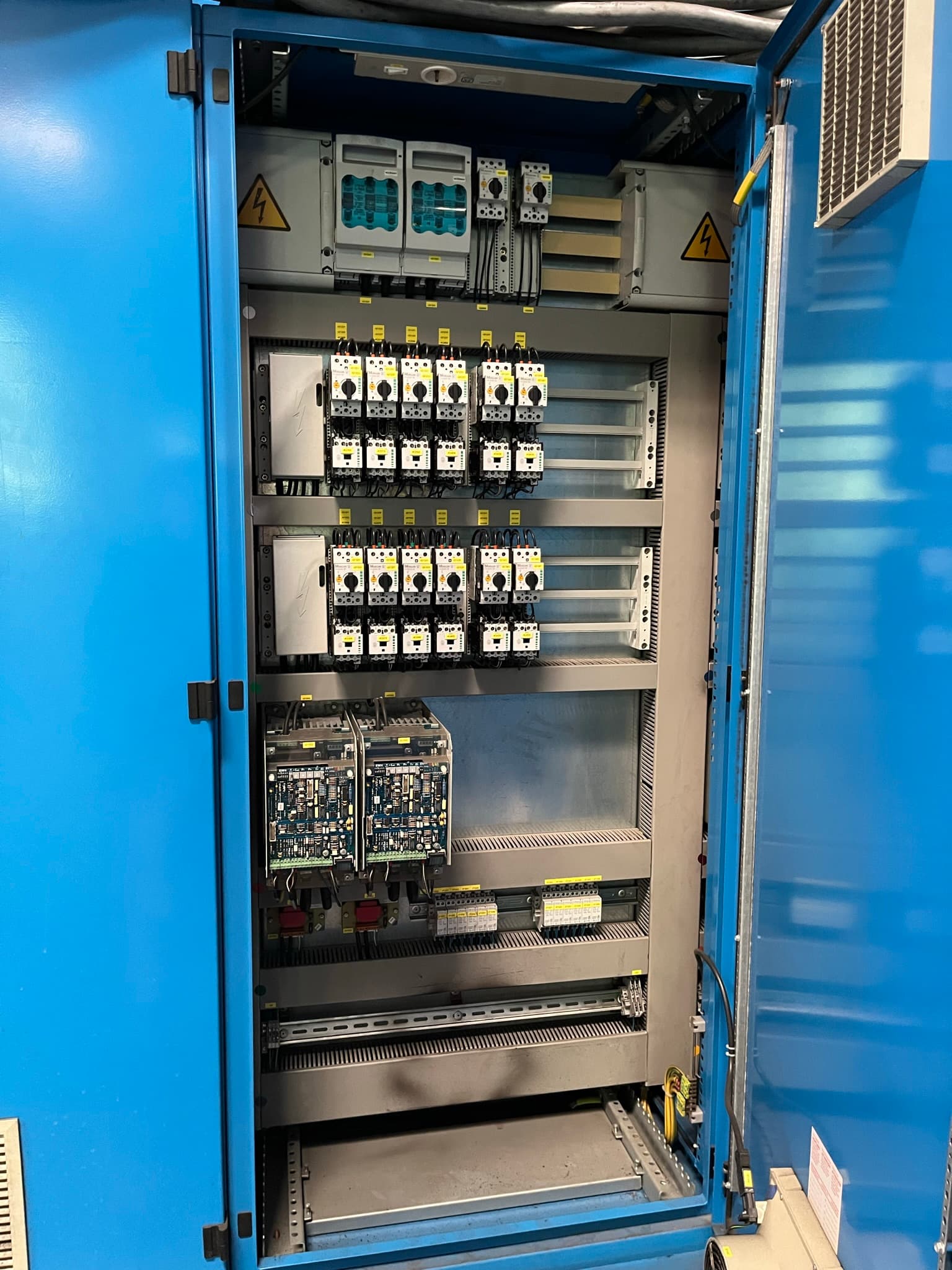

Electrical Data:

• Electrical power supply: 400V / 50Hz 239 kVA
• Heating capacity: 186 kW

Additional Equipment:

• Blow moulds for 0,5l; 1,0l and 1,5l

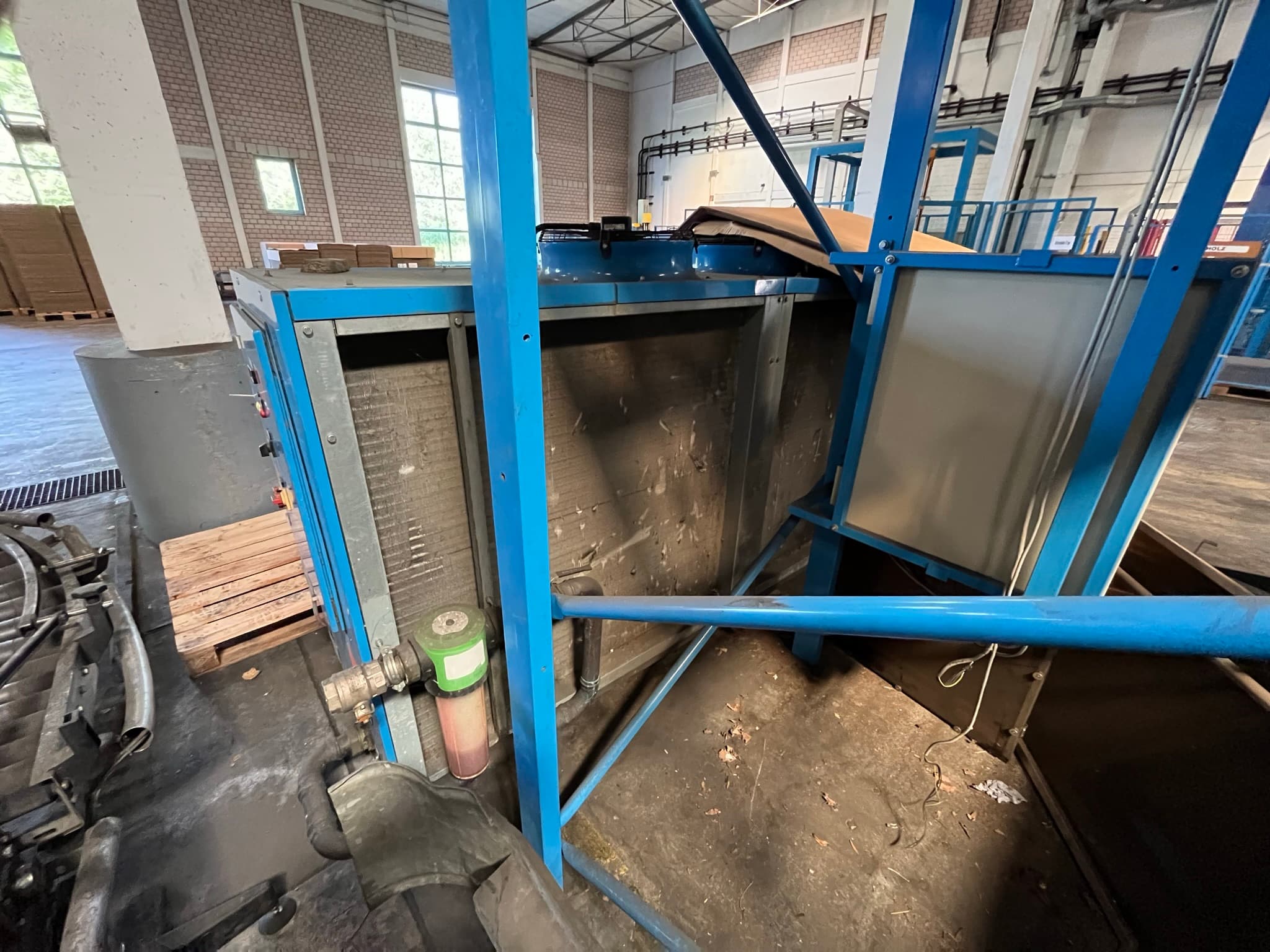

• Cooling system

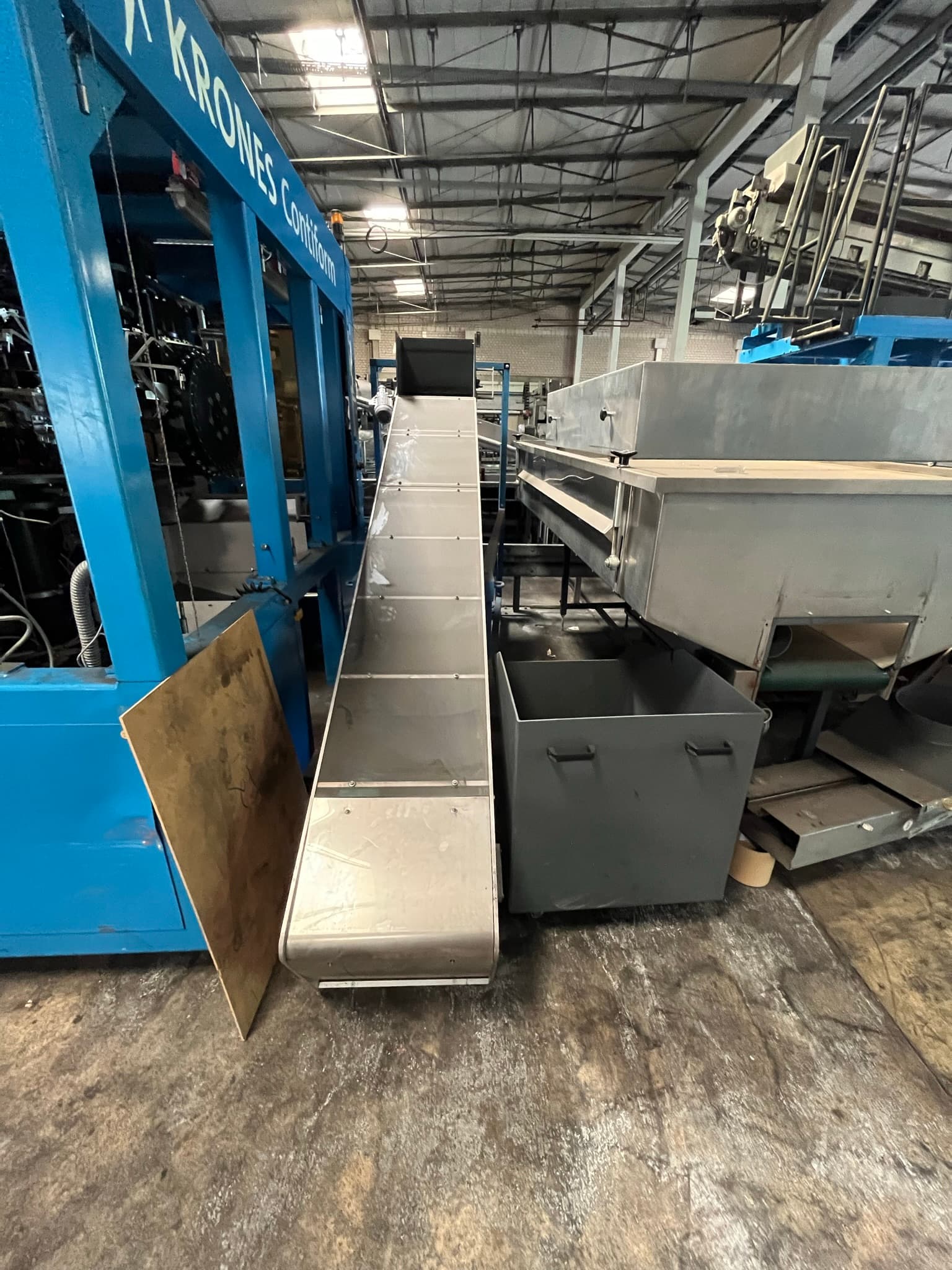

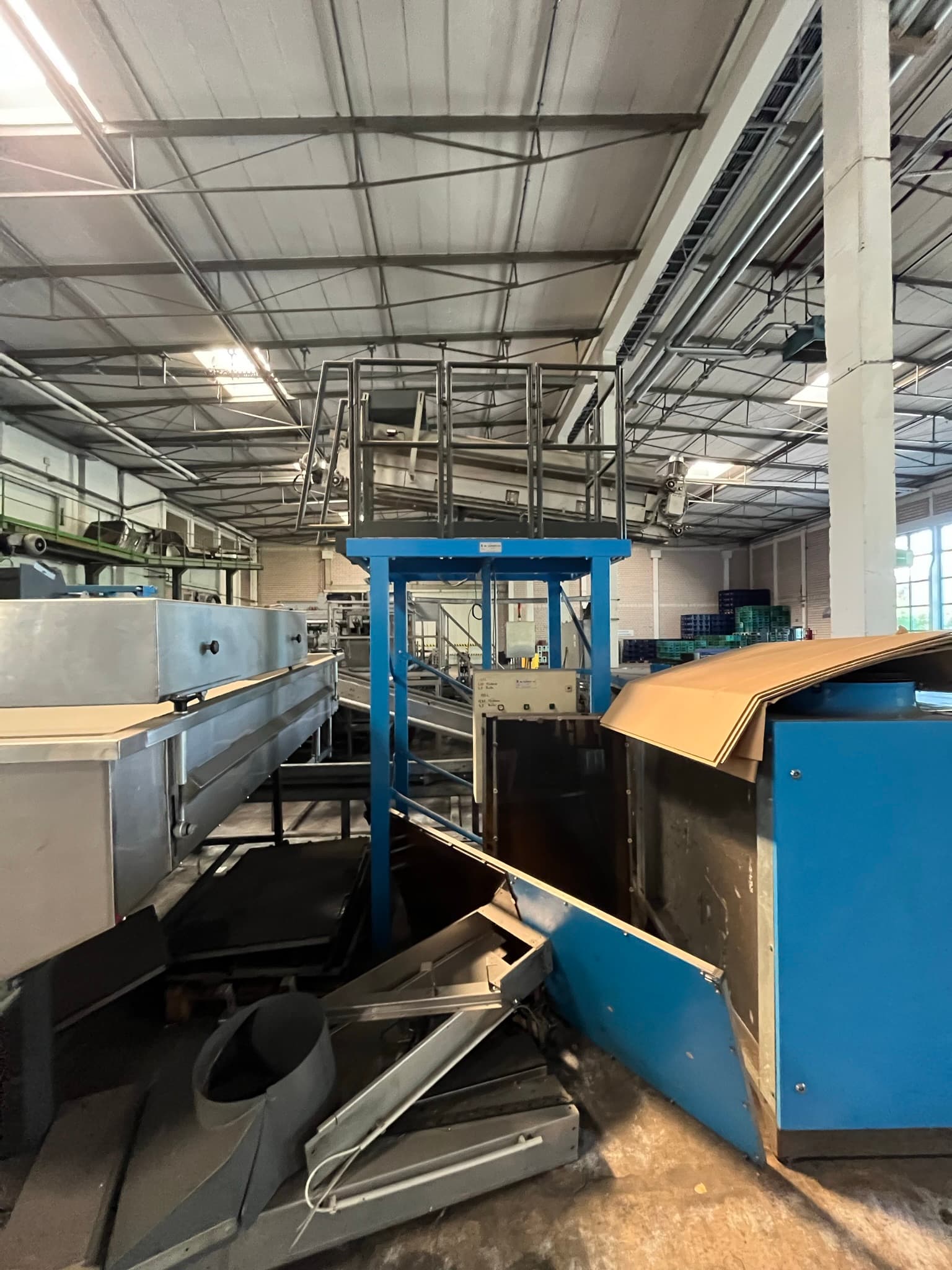

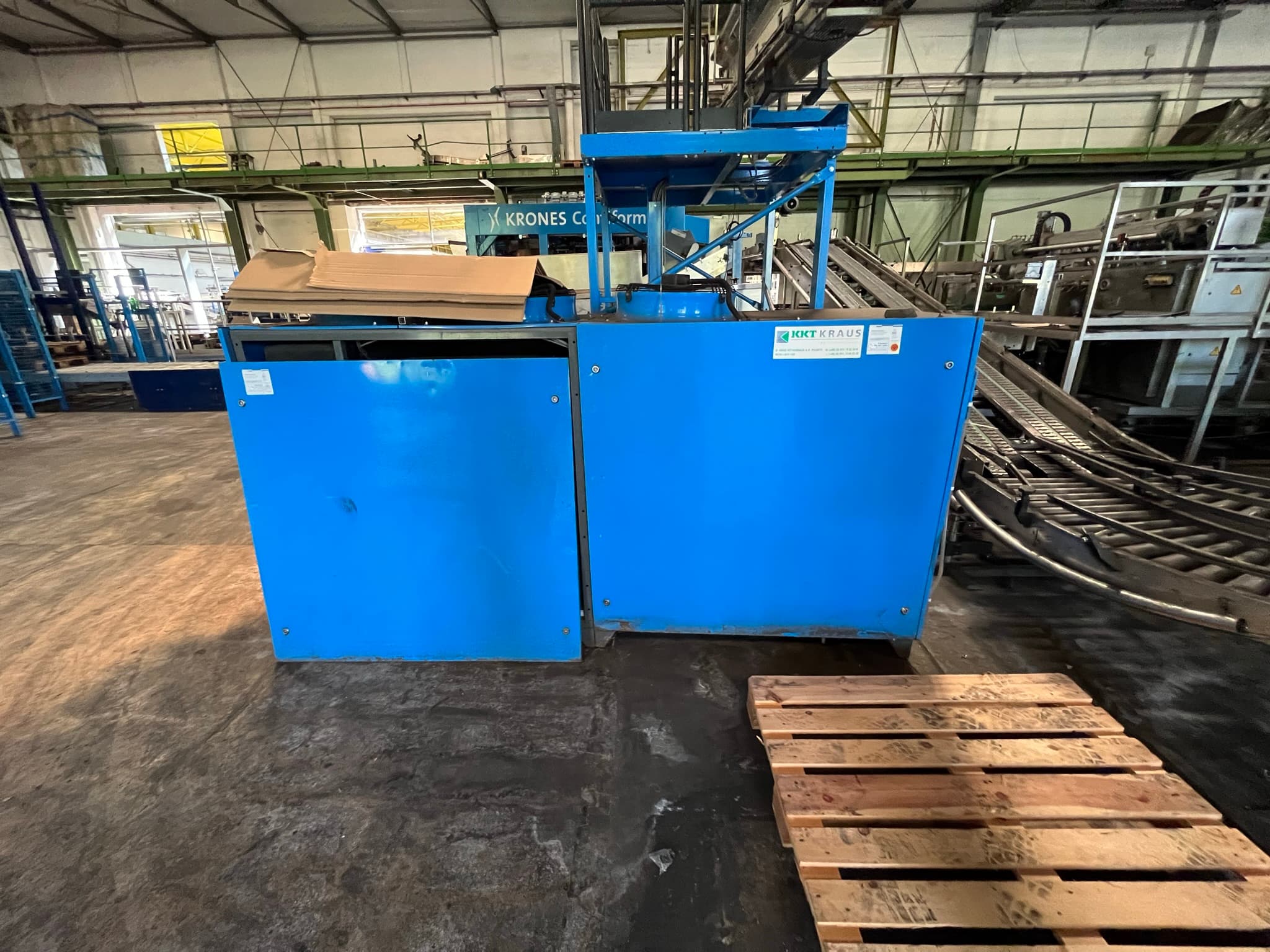

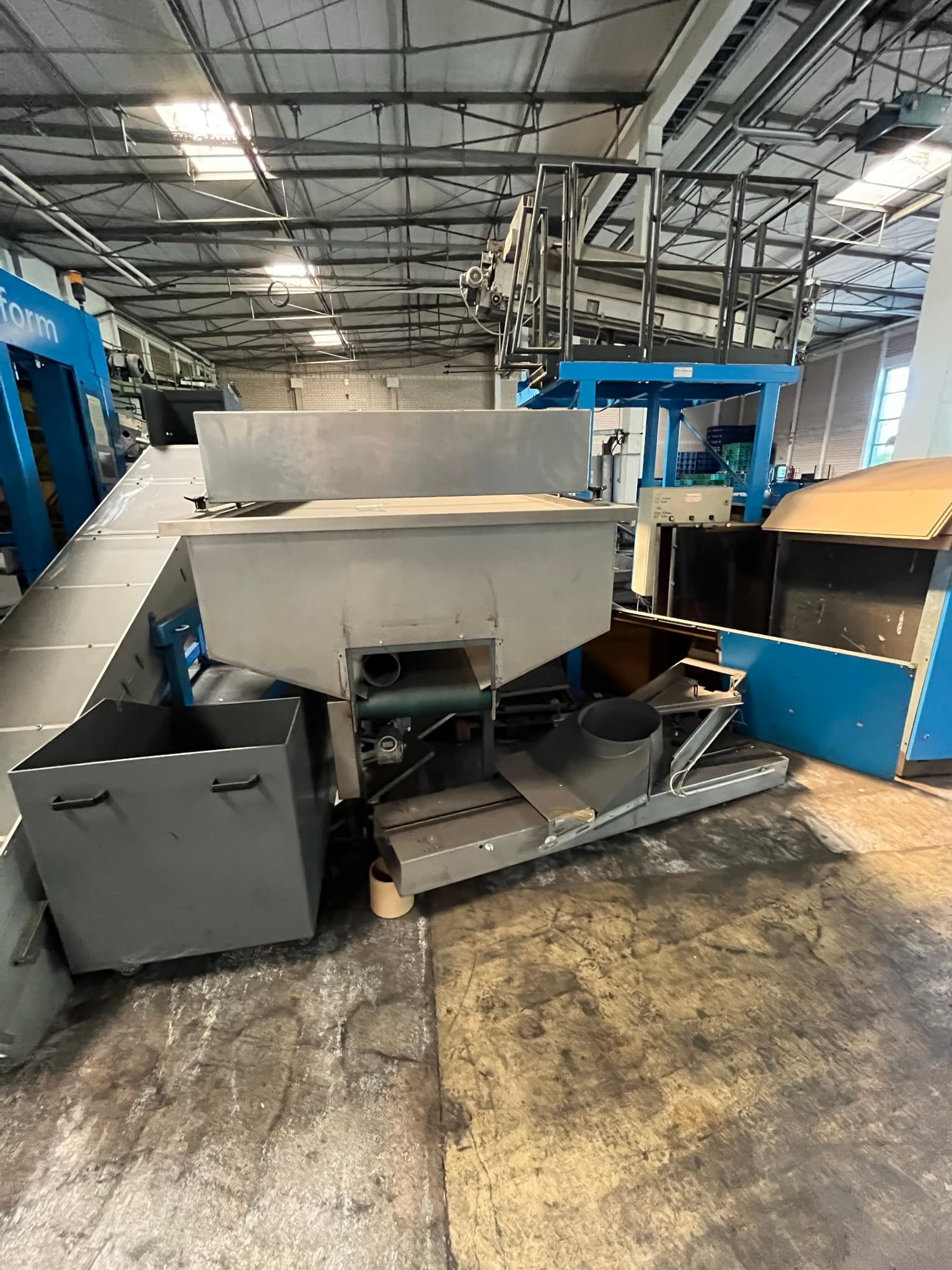

• Preform feeding system
• Technical documentation
