Krones Ergomodul Cold Glue Labeler (2020)

Overview

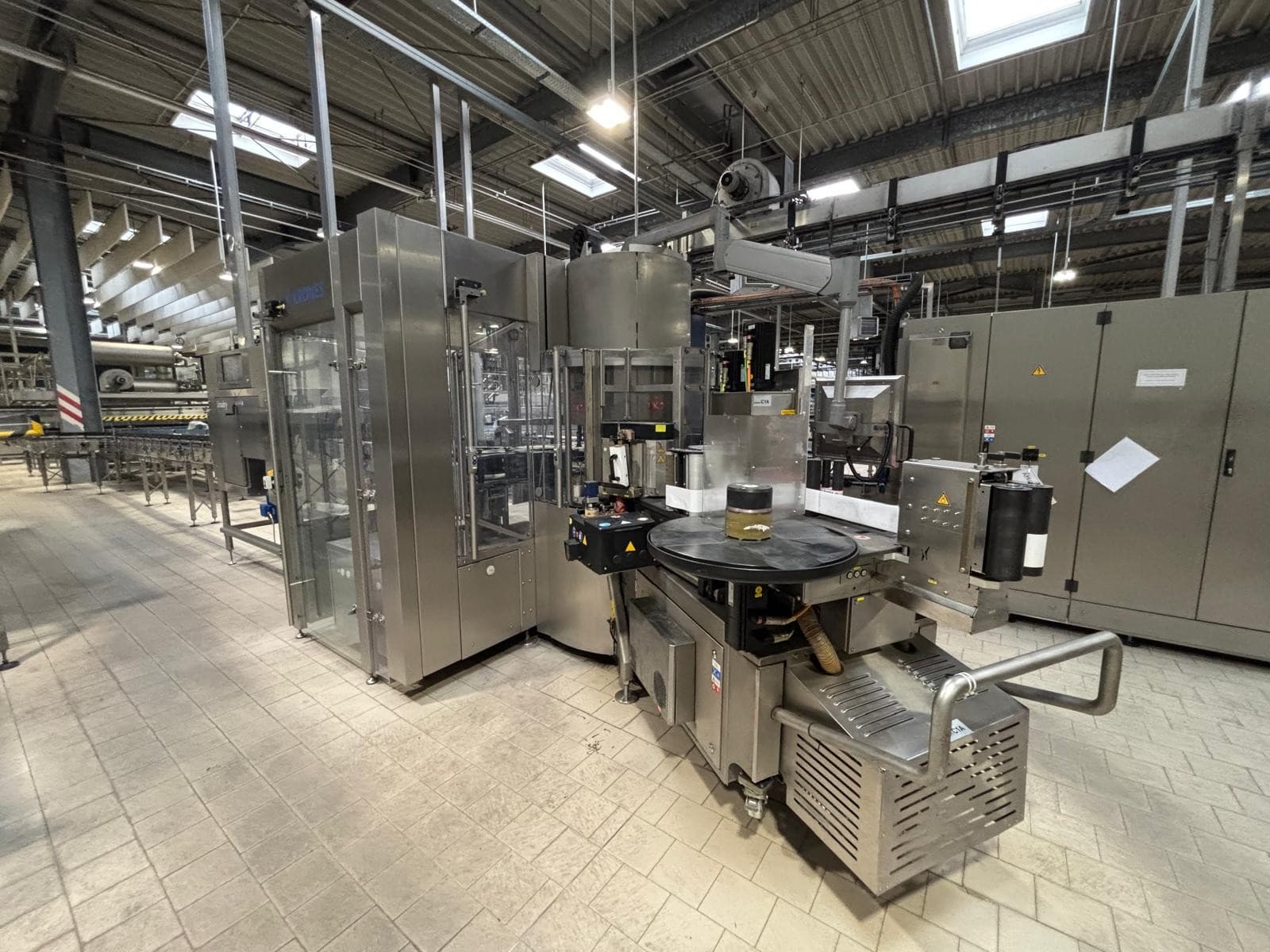

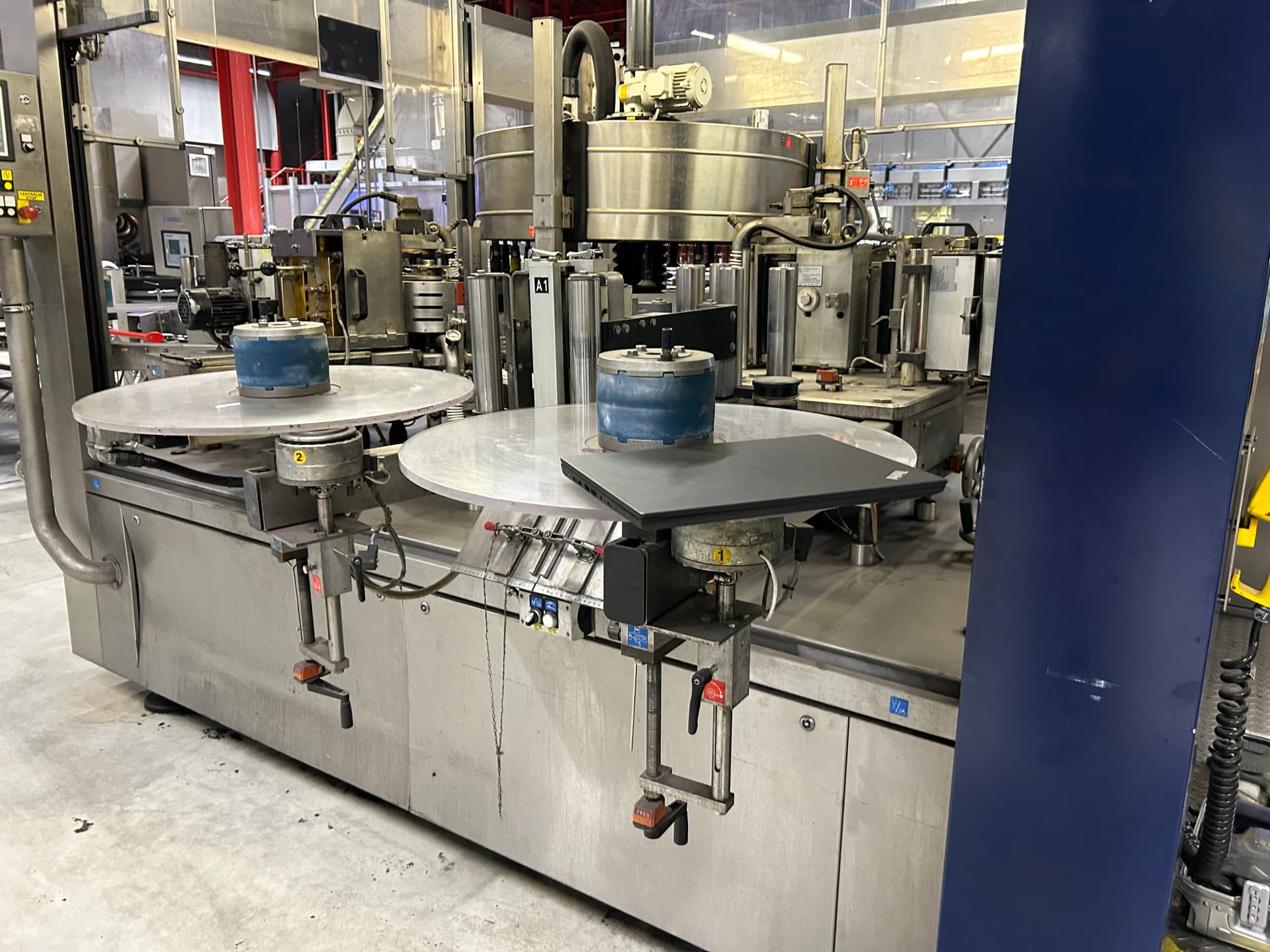

Krones Ergomodul modular container labeller, built in 2020. The carrousel table carries 30 rotary plates on a 1,200 mm pitch diameter at a machine pitch of 125.6 mm; containers run anticlockwise after the infeed, in a frontal arrangement with two discharge starwheels. Finish RAL 9018 papyrus white in the wet-line section.

Two docking positions at the carrousel, both in operation, take any of the four interchangeable labelling stations that belong to the machine: two ERGOMATIC-CL cold-glue stations and two AUTOCOL-TS self-adhesive stations. Stations are exchanged without tools, so cold-glue and self-adhesive labelling run on the same carrousel; height adjustment of the top part and of every station is motorised with container type preselection.

Technical data

• Manufacturer: Krones
• Model: Ergomodul
• Year of manufacture: 2020
• Container table pitch diameter: 1,200 mm
• Rotary plates: 30
• Machine pitch: 125.6 mm
• Main drive: controlled servo motor; Danfoss servo motors at the container table
• Cold-glue stations (2x): ERGOMATIC-CL, 8-shaft glue pallet carrousel, 8-section gripper cylinder d = 350 mm, unwinding length 40-130 mm, steel glue roller, integrated glue pump, gluing height 5-215 mm, housing in stainless steel similar to AISI 304
• Self-adhesive stations (2x): AUTOCOL-TS 120, web speed 120 m/min, supply tolerance +/- 0.5 mm, four-axis stand (application height, container diameter, conicity, sloping position), reel holder for two reels with automatic splicing and end-of-reel detection, driven carrier-film rewinder, ionisation unit, reels up to 390 mm outer diameter, carrier film up to 150 mm
• Container infeed: infeed worm with servo drive, detection of damaged and fallen-over containers
• Container orientation: prepared for camera orientation at the carrousel (360-degree monitoring, one camera unit); electrical interface prepared, mechanical adjustment unit not installed
• Coding: prepared for a laser coder at the carrousel, with laser guarding and safety switch, clock pulse and oil-free air supply
• Conveyors: flat-top chain 83.8 mm wide in stainless steel similar to AISI 304; servo-driven infeed, PM-motor discharge, centralised frequency inverter control
• Machine guarding: lifting doors at the carrousel (polycarbonate), hinged doors at the front table (tempered safety glass)
• Pneumatics: Festo, with Bosch-Aventics, Norgren Herion, SMC and Bürkert components
• Electrical connection: 400/230 V, AC 3/N/PE, 50 Hz, 28 A full load, 50 A back-up fuse; separate UPS connection 400/230 V, 17 A
• Media: 92.4 m³/h oil-free compressed air, 0.009 m³/h process water
• Weight: approx. 10,600 kg in total (carrousel 3,200 kg, front table 3,000 kg, 1,100 kg per cold-glue station, control cabinet 1,000 kg)

Equipment

• 2x ERGOMATIC-CL cold-glue labelling stations, interchangeable
• 2x AUTOCOL-TS self-adhesive labelling stations, interchangeable
• Stand-alone control cabinet with Krones iPanel operator terminal
• Central lubrication (Lincoln progressive distributor with motor pump)
• Ecopush rejection module
• Handling parts set on trolleys

The inspection unit (Checkmat) and the container coding device that ran with this labeller are separate items and not part of this machine.

Condition

Used, still installed and under power in an operating line. Inspection on site is possible before purchase.

Availability

Available now. The machine stands in Belgium and will be dismantled and moved to our location in Germany; dismantling, loading and transport can be quoted on request.
