Overview

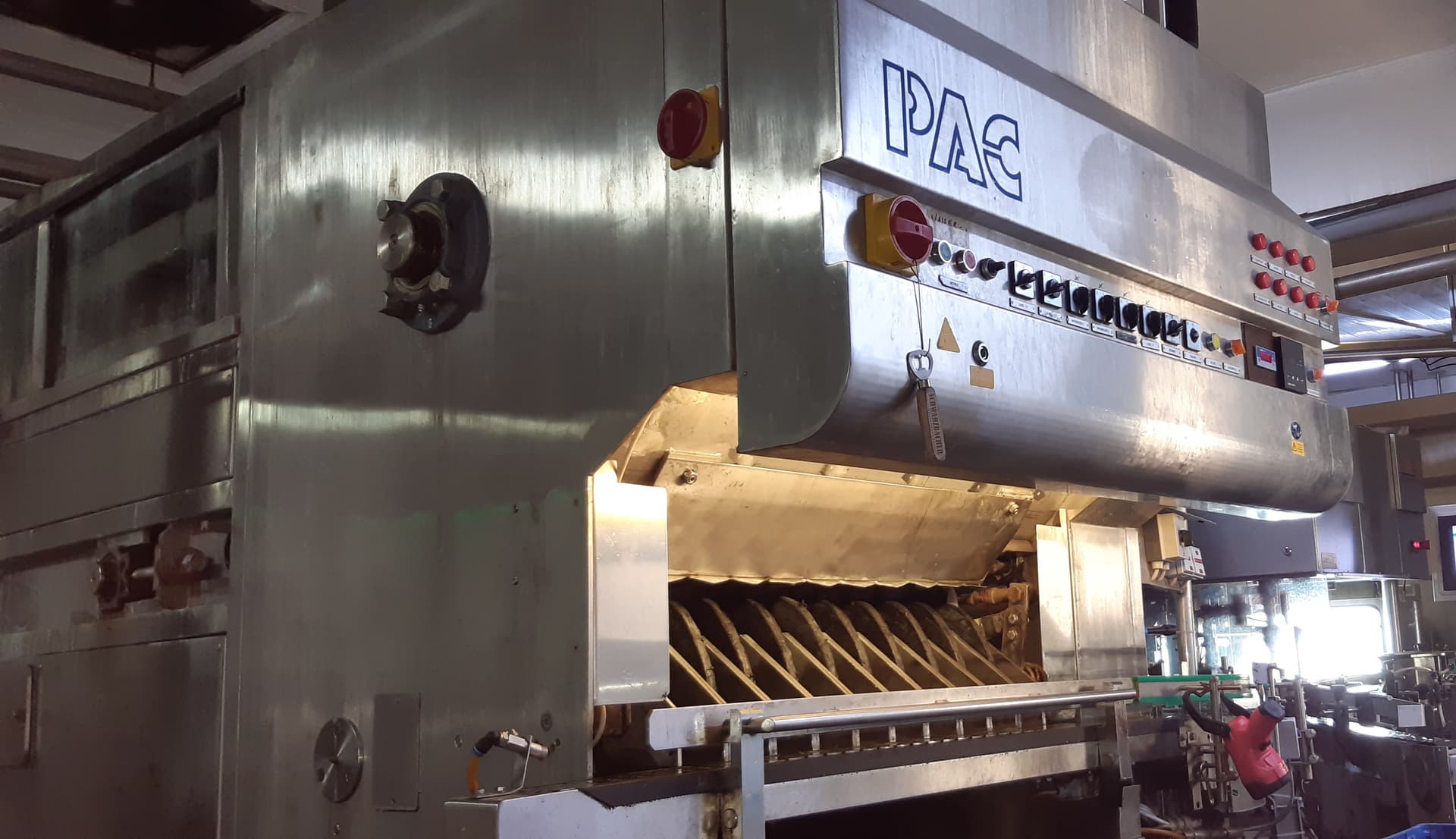

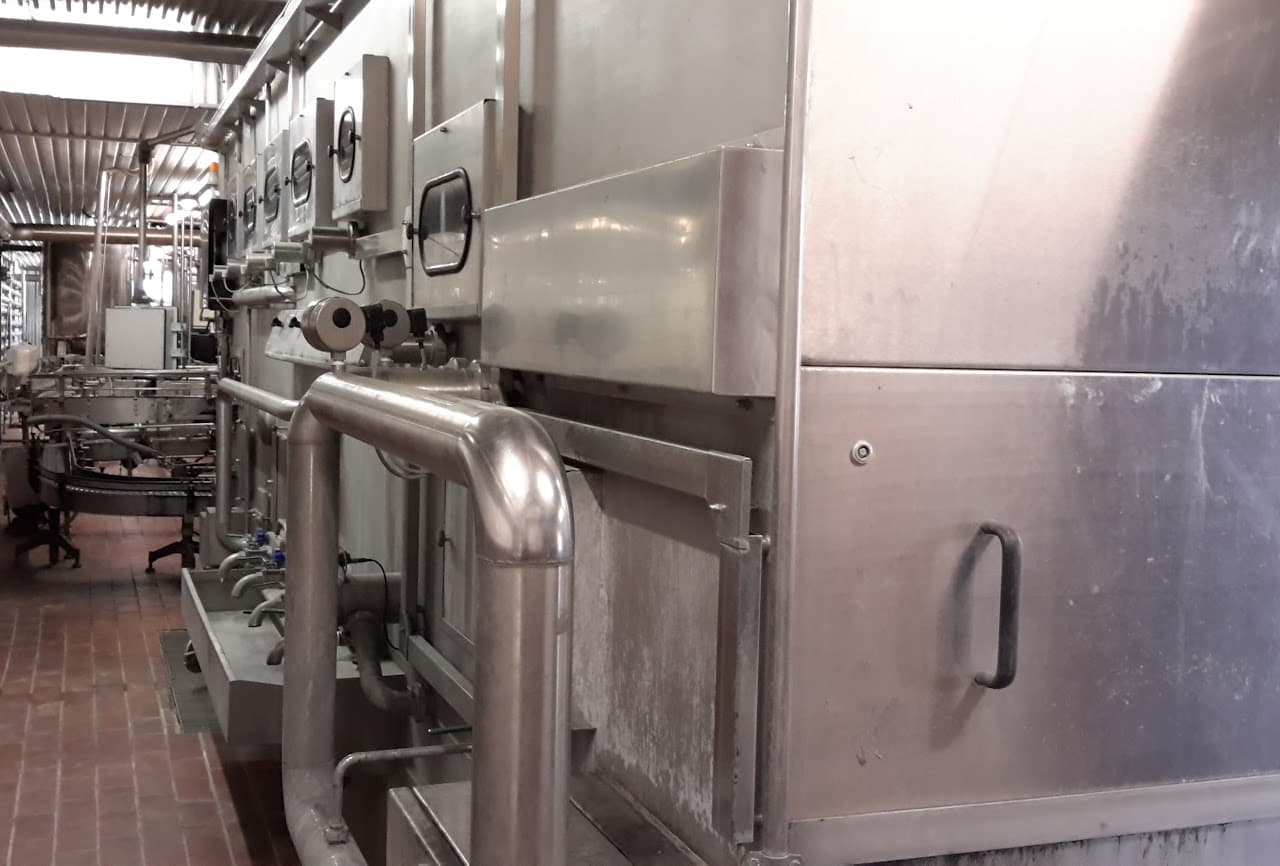

This bottle washer was manufactured in 1998 by the German company PAC. The CB 14-0,5L-R-7 LII Compact model is a fully automatic returnable glass bottle washer designed for medium-capacity beverage filling lines. With a throughput of 7,500 bottles per hour, it ensures effective cleaning through a multi-stage process using caustic and hot-water baths. The unit has 14,175 operating hours and is in good working condition.

Technical data

• Capacity: 7,500 bottles/hour
• Adjustable speed range: 3,750 – 7,875 bottles/hour
• Cycle time: 6.72 seconds
• Total treatment time: 11.65 minutes
• Bottle formats: Up to Euro-NRW
• Bottle rows per carrier: 14
• Bottles inside machine: 1,456
• Bottle carrier trays: 110
• Effective spray times:
  • Hot lye 8.96 seconds
  • Lye II 8.96 seconds
  • Hot water II 8.96 seconds
  • Hot water I 8.96 seconds
  • Cold water: 13.44 seconds
  • Fresh water max.: 8.96 seconds
• Utilities
  • Water consumption: 3.25 – 3.38 m³/h at 60°C
  • Power connection: 12.0 – 12.9 kW
  • Thermal energy consumption: 3,528 × 1000 kJ/h
• Dimensions
  • Length with cabinet: 7,020 mm
  • Width of frame: 1725 mm
  • Height: 2300 mm
