Overview

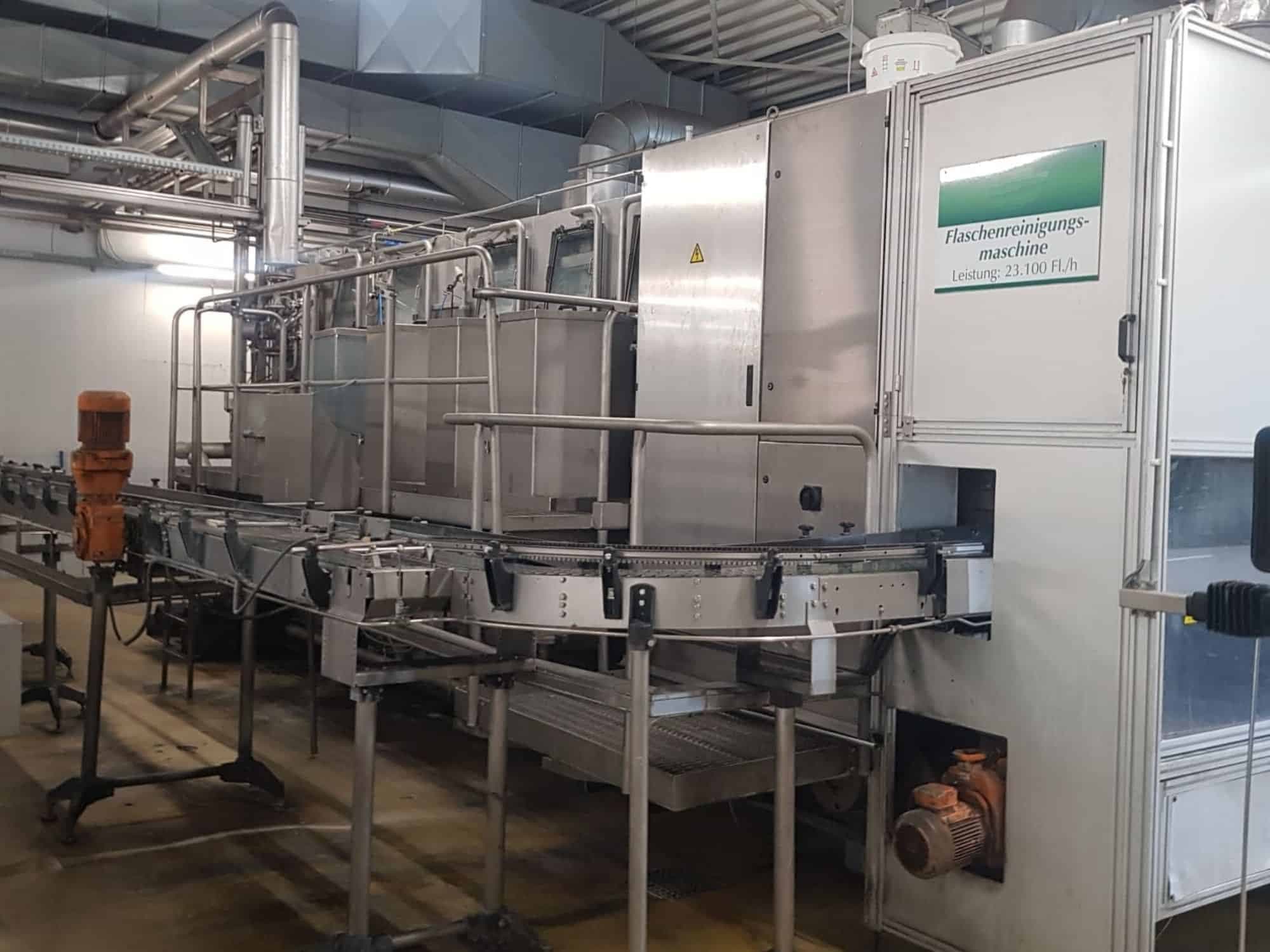

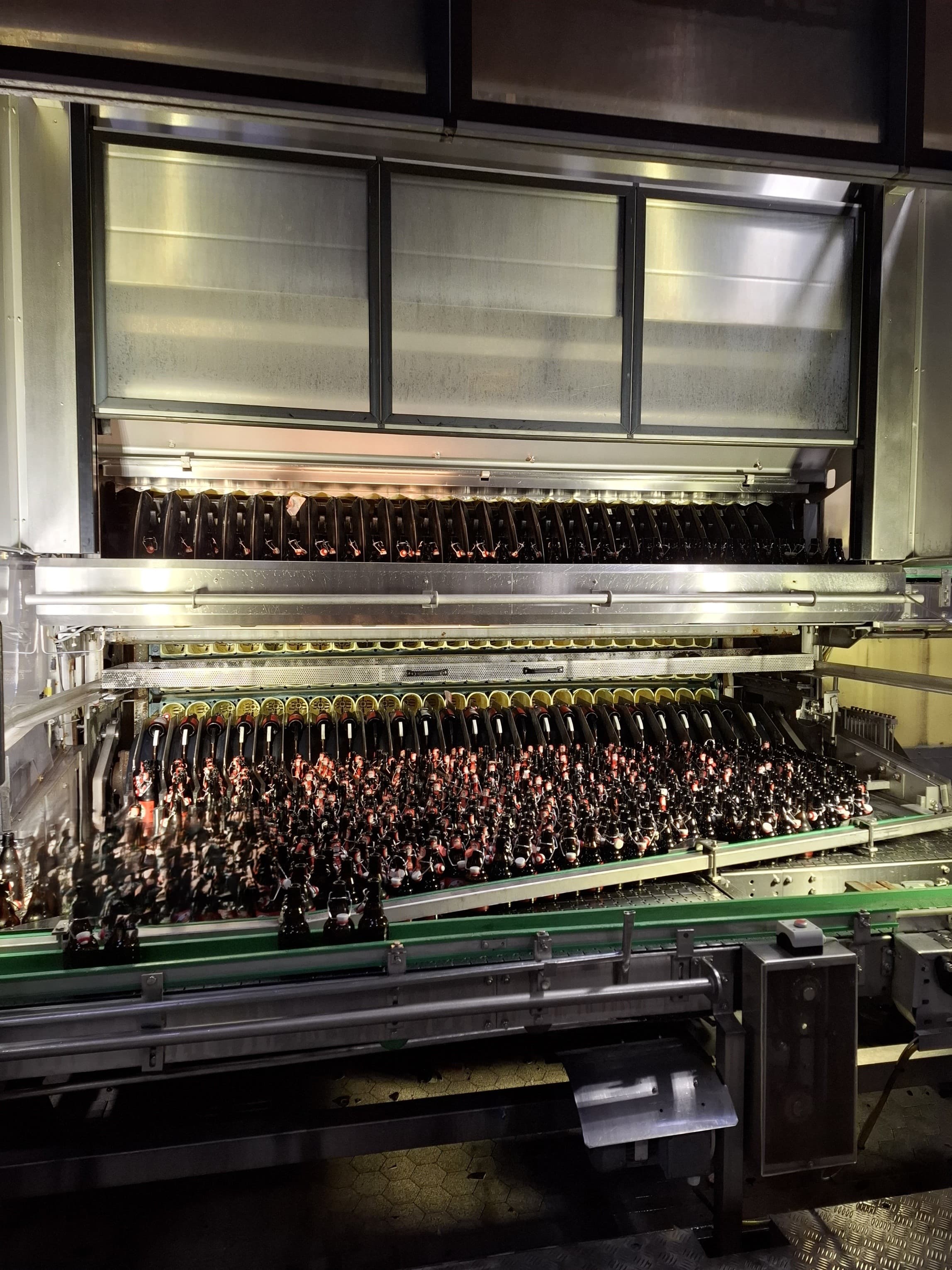

The GM Gera NAGEMA Arcade DS bottle washer was previously used in a brewery. There it was operated in single-shift operation. Since the sales volume has decreased, the beer of the brewery is now bottled at another location and this bottling line has become available. Due to the low number of operating hours and regular maintenance, the machine is in a very good condition. All basins and the machine body are made of stainless steel. Spare parts, such as bottle cells, are also still available. Furthermore, the main drive shaft, as well as the motor and gearbox were overhauled by SEW in 2018 and the carrier chain was replaced in 2015. The machine is still mounted and can also be demonstrated.

Tech Specs:

• Capacity: 23,000 bph
• Cell pitch: 85
• Bottles per row: 16
• Dimensions + weights with attachments:
  8640 x 4470 x 1920 mm / 17,900 kg

Details:

• Standard drives
• Heating with steam
• Operating side left
• CE certified
• Chemistry dosing pumps
• Machine data sheet
• Fixed pipe spraying controlled by machine cycle
• Single-end machine
• Label discharge rear right
• Finger discharge + finger feeding
• Bottle discharge left
• Bottle cells plastic
• HMI Lauer
• Lye concentration measurement
• 24 Volt control voltage
• Control S5 (on request conversion to S7)
• Regularly maintained
• Water part in VA
• Fume extraction
• Sampling taps
• KSB pumps in VA
• Plug-in strainers for baths
• Water meter
• Conductivity measurement from Endress

Additional Equipment:

• Spare parts included
