Overview

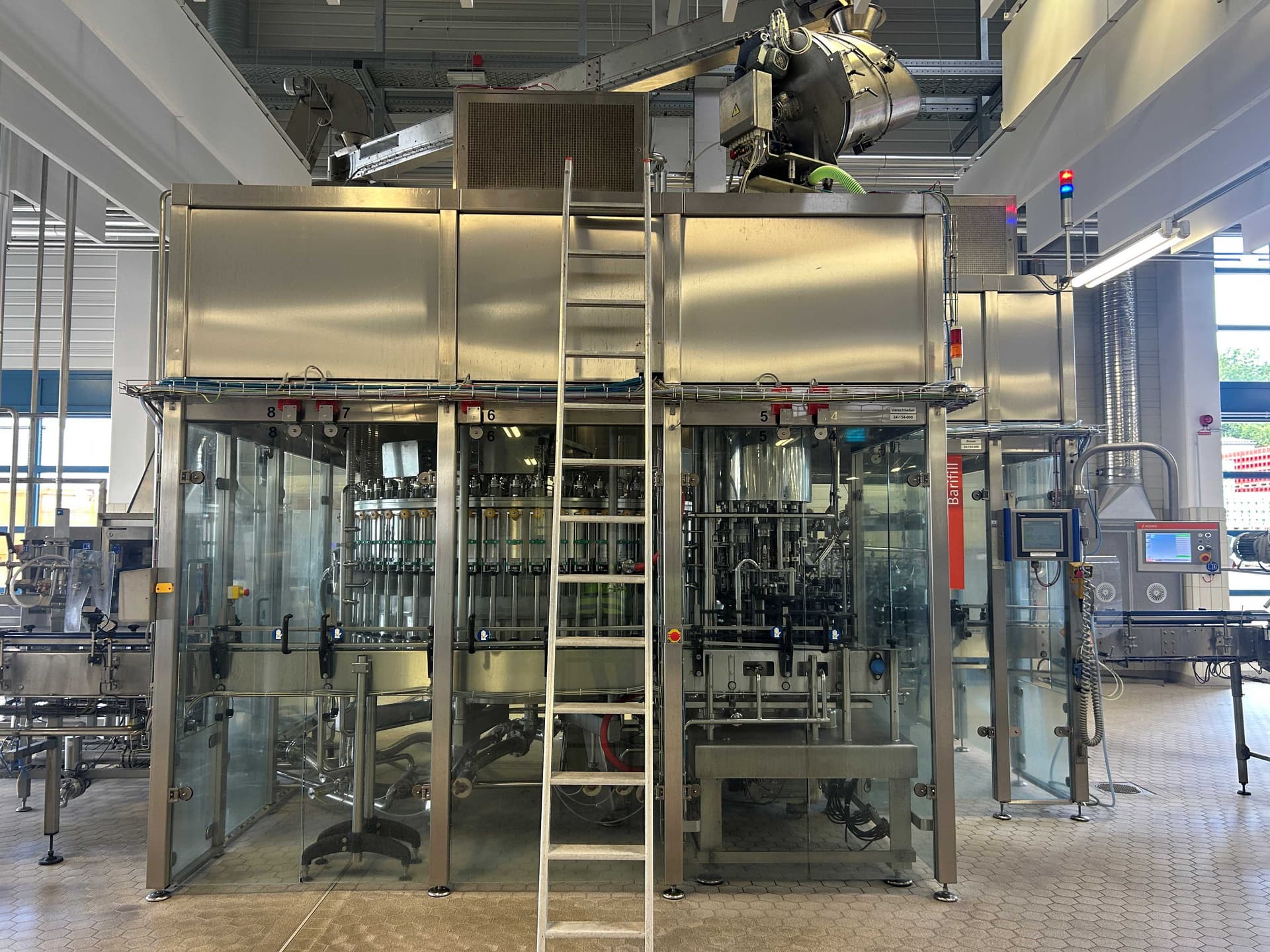

This vacuum filling and capping monoblock was manufactured in 2019 by the German company ALWID Maschinenbau GmbH. The model ALWID-SUPERIOR-48HV-10PP is designed for level filling of glass bottles using a high-vacuum system, making it ideal for low- to medium-viscosity liquids such as spirits or similar products.

The system features 48 filling valves and a 10-head ROPP capping unit, ensuring efficient, high-precision operation. With a performance of up to 12,500 bottles per hour (0.7 L), it offers a professional solution for high-speed bottling lines. The machine is CIP-capable, equipped with spray balls, and includes a Siemens S7 control system.

It has approximately 14,000 operating hours and is already dismantled. Missing peripheral components such as the cap sorter, bunker conveyor, and chutes can be procured upon request and a factory overhaul is also available upon demand.

Technical data

• Filling system: High-vacuum with liquid ring pump
• Capping system: 10-head ROPP (PP) closer
• Capacity: Up to 12,500 bph (0.7 L bottles)
• Filling valves: 48
• Bottle size: Max. 105 mm (W) × 65 mm (D) for shaped bottles (every second valve used)
• Control system: Siemens S7
• Cleaning system: CIP with spray balls
• Operating hours: Approx. 14,000 h
• Working direction: Right to left
• Dimensions (machine): 4.20 m × 2.80 m × 2.90 m (W×D×H)
• Dimensions (filling tower): 1.40 m × 1.30 m × 3.40 m (W×D×H)

Scope of delivery

• Filling and capping block | ALWID Maschinenbau GmbH | ALWID-SUPERIOR-48HV-10PP | 2019 | High-vacuum filler with 48 filling stations and 10 ROPP capping heads, Siemens S7 control system, CIP-capable, approx. 14. 000 operating hours
• Filling tower | ALWID Maschinenbau GmbH | - | 2019 | 3.40 × 1.30 × 1.40 m, part of the system
• Format parts | ALWID Maschinenbau GmbH | - | 2019 | 10x PP28x22 mm deep capping heads, 1x format set for 76 mm straight-neck bottle
• Accessories | 2 EURO pallets with format and head components
