Overview

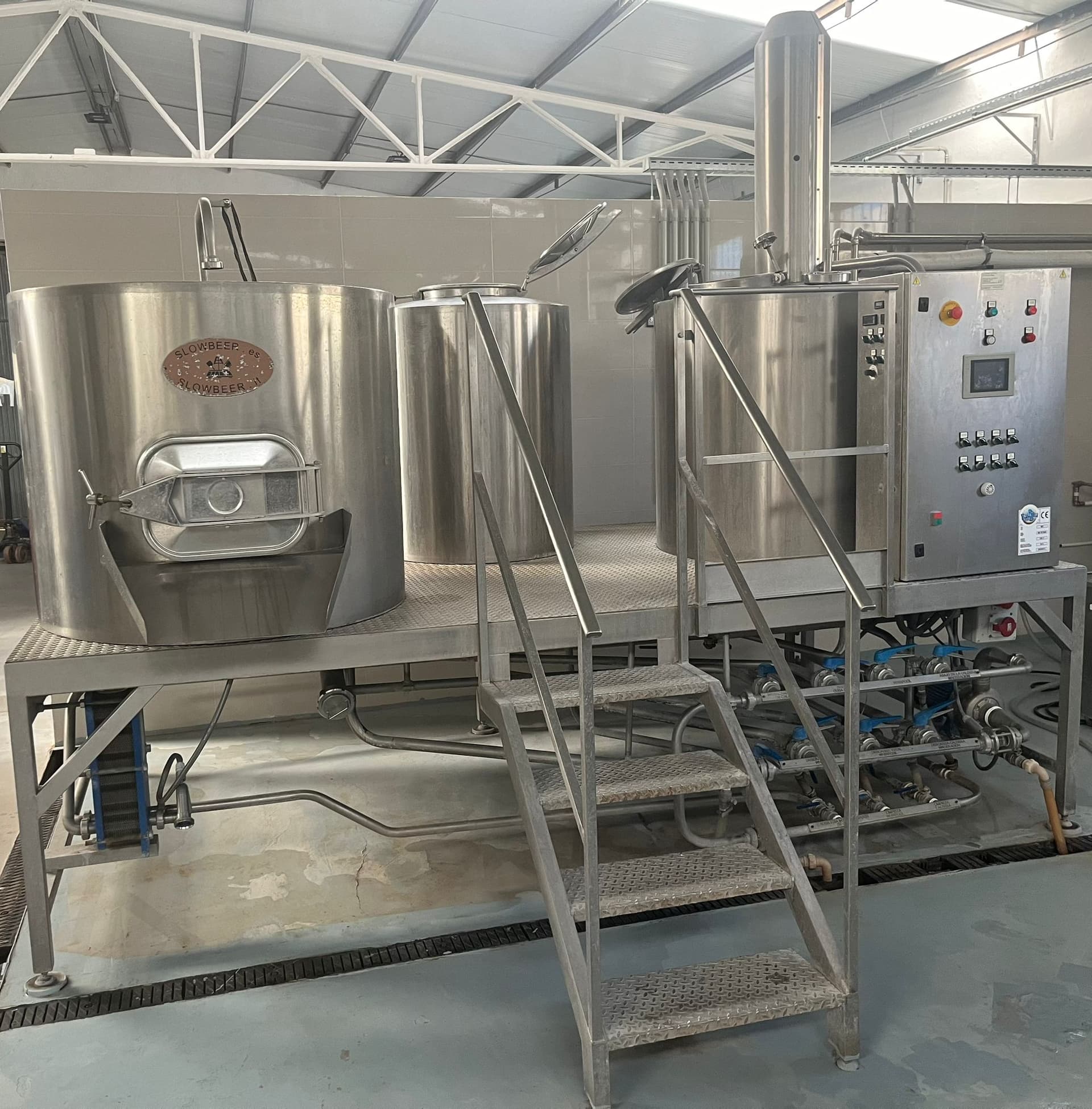

This 250 L brewhouse was manufactured in 2016 by Cespedes (Spain). The compact system is built in AISI 304/316 stainless steel and is designed for small-scale craft beer production. It includes all main components from mashing to boiling and wort cooling. The system is in very good condition and available immediately.

Technical data

• Capacity: 250 L per batch (brewhouse); fermentation tanks 500 L each
• Brewhouse type: 2-vessel system (boil kettle/whirlpool + lauter tun/mash filter)
• Heating: Electric resistances with oil-based thermal transfer (2×18 kW)
• Plate heat exchanger capacity: 40 kW, AISI 316 plates
• Fermentation:
  • 1 × 500 L isobaric fermentation tank (4.5 bar)
  • 2 × 500 L atmospheric fermentation tanks
• Control: Touchscreen panel with recipe management, temperature control for two tanks, emergency stop

Scope of Delivery

• Brewing kettle & whirlpool tank | Cespedes | – | 2016 | 250 L, electrically heated, oil-based heat transfer Lauter tun & mash filter | Cespedes | – | 2016 | 250 L, with agitator, false bottom, CIP
• Plate heat exchanger | Cespedes | UPF-32/12 | 2016 | AISI 316, 40 kW capacity
• Plate heat exchanger | Cespedes | UPF-32/12 | 2016 | AISI 316, 40 kW capacity
• Control panel | – | – | 2016 | Touchscreen, recipe control, temperature control
• Wort transfer pump | – | – | 2016 | With electronic speed control
• Particle filter | – | – | 2016 | Stainless steel AISI 304, 0.2 mm slot size
• Sight glass | – | – | 2016 | DN40, stainless steel AISI 316
• Connecting pipes | – | – | 2016 | DIN sanitary valves, stainless steel
• Fermentation tank (isobaric) | Cespedes | – | 2016 | 500 L, 4.5 bar, isothermal, double-walled
• Fermentation tanks (atmospheric) | Cespedes | – | 2016 | 2 × 500 L, isothermal
