Overview

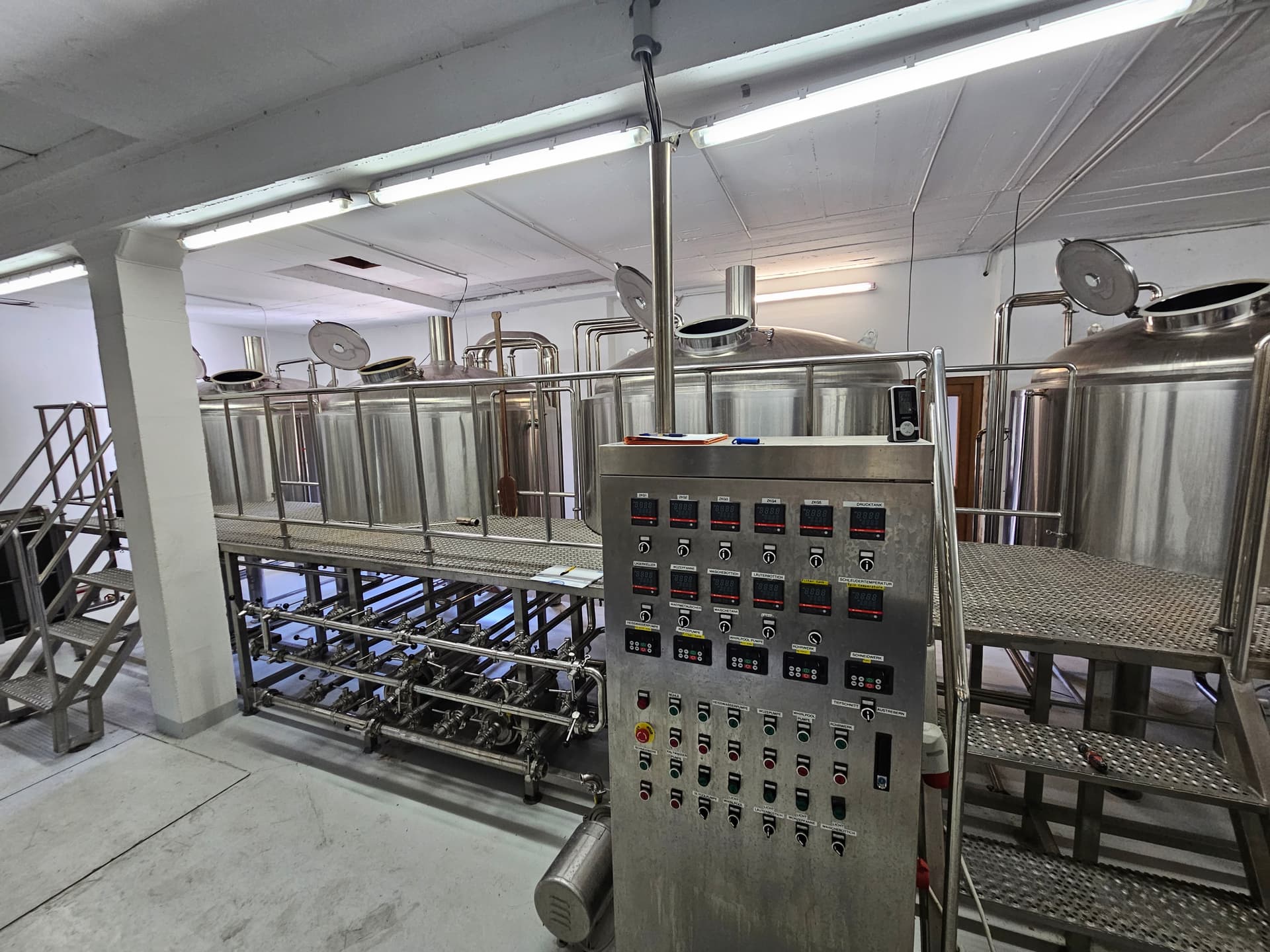

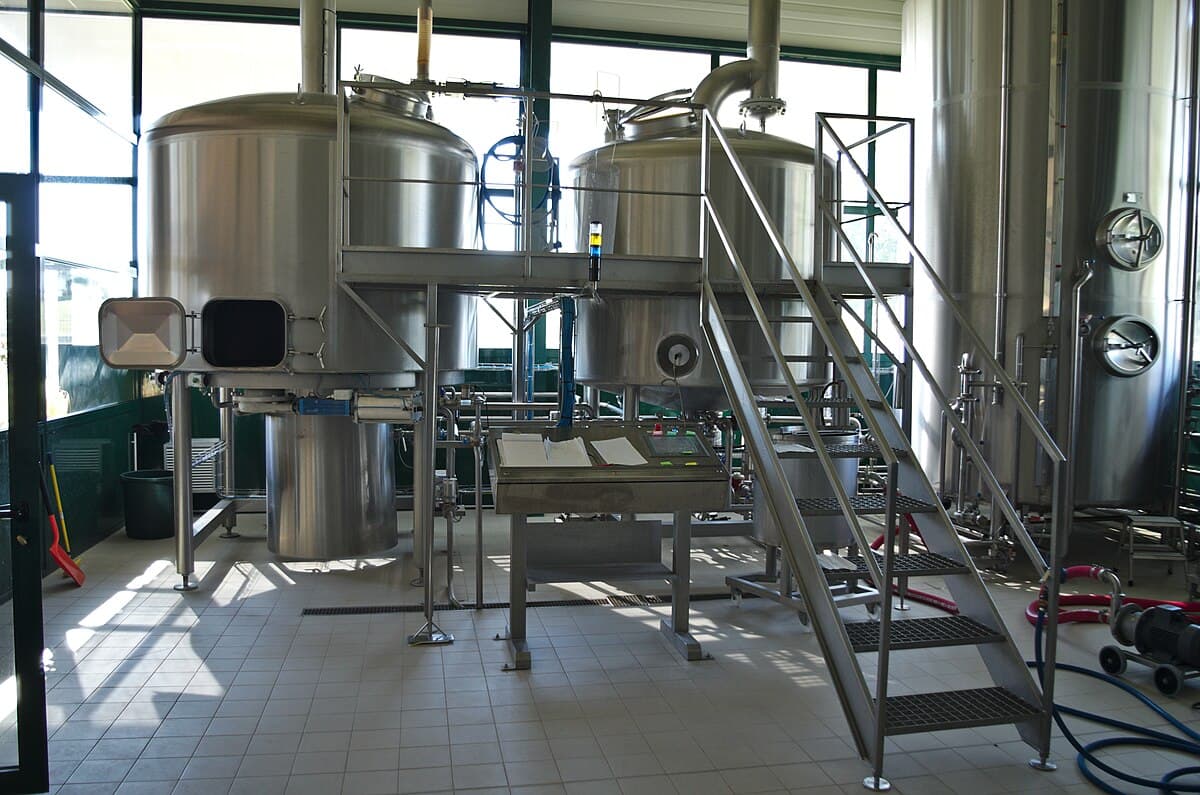

This complete brewing and packaging line was manufactured mainly in 2018 by Cespedes (Spain) and other European manufacturers such as Anfara, Sommer, and Braumanufaktur Werk. It includes brewhouse, fermentation, utilities, CIP, and filling equipment, all built in stainless steel AISI 304. With a brewhouse capacity of 1,500 L per batch and three 3,000 L fermenters, it is designed for small to medium-scale breweries. The line is in excellent condition and suitable for immediate use.

Technical data

• Capacity: 1,500 L per batch (brewhouse), 3 × 3,000 L fermentation tanks
• Formats: Bottles and cans (330 ml, 440 ml, 500 ml)
• Brewing system: Steam-heated, fully stainless steel
• Filler: 6-head semi-automatic isobaric filler (bottles), modular semi-automatic filler and capper (cans, approx. 150 cph)

Scope of Delivery

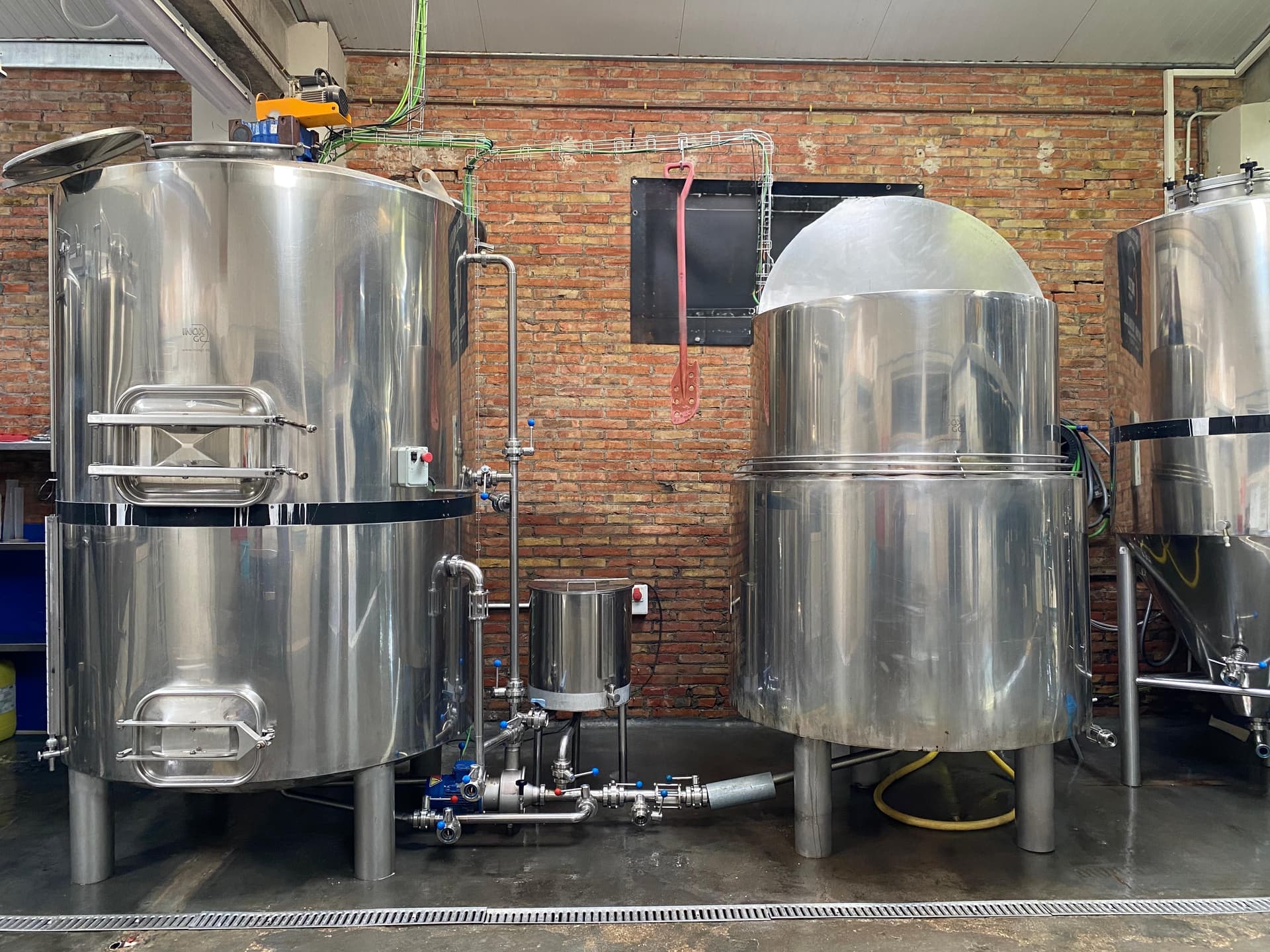

• Brewing kettle / whirlpool tank | Cespedes | - | 2018 | 1,500 L usable, double jacket, steam heating, fully insulated, stainless steel AISI 304
• Mash/lauter tun | Cespedes | - | 2018 | 2. 000 L usable, motorized stirrer, insulated, stainless steel AISI 304
• Hot water tank (HLT) | Cespedes | - | 2018 | 3,000 L, insulated, with heating jacket

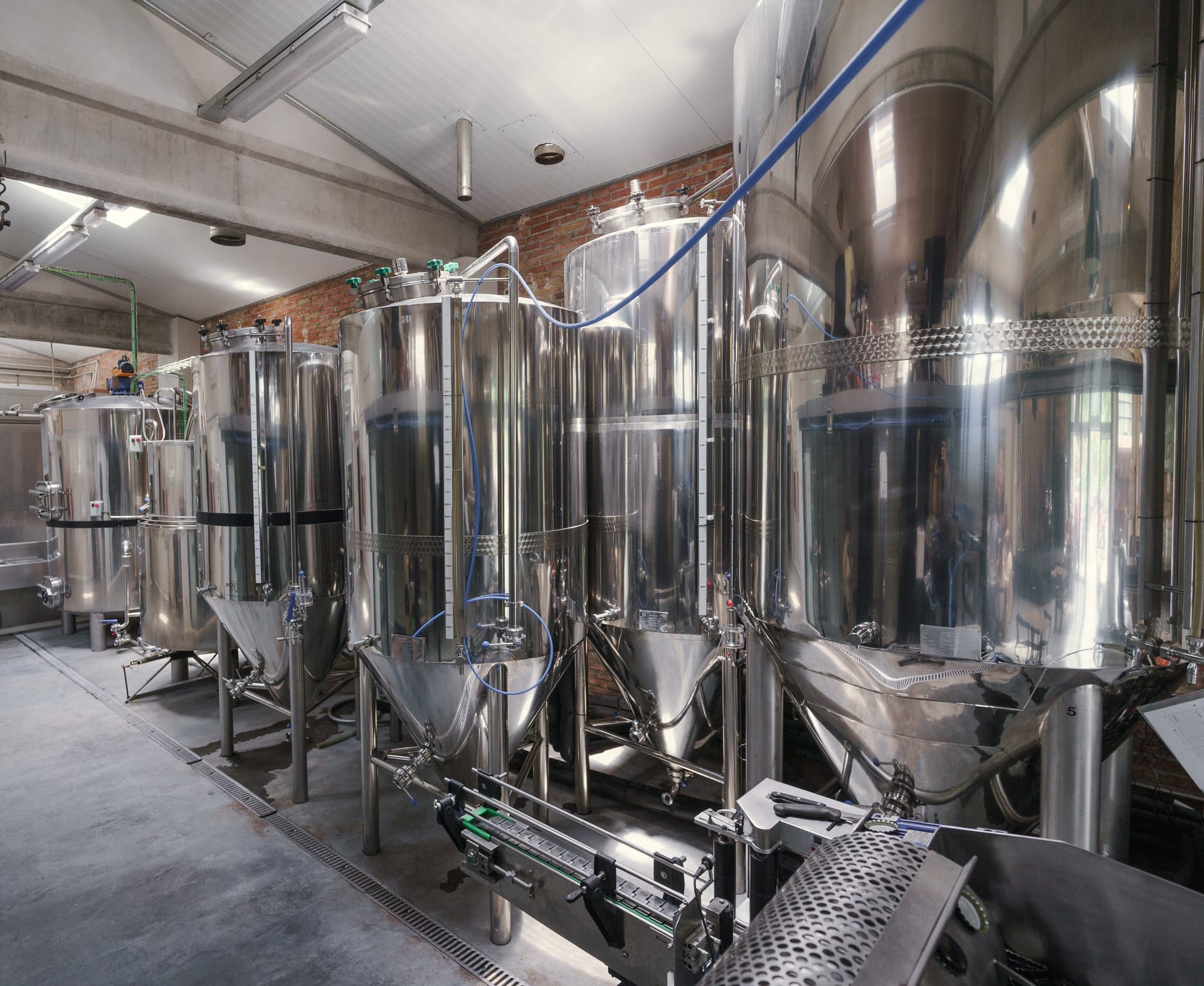

• Fermentation/storage tanks (3 pieces) | Cespedes | - | 2018 | 3. 000 L usable, pressure vessel up to 3 bar, insulated, cooling jacket
• Control system | Cespedes | - | 2018 | Recipe management, temperature control, frequency converter

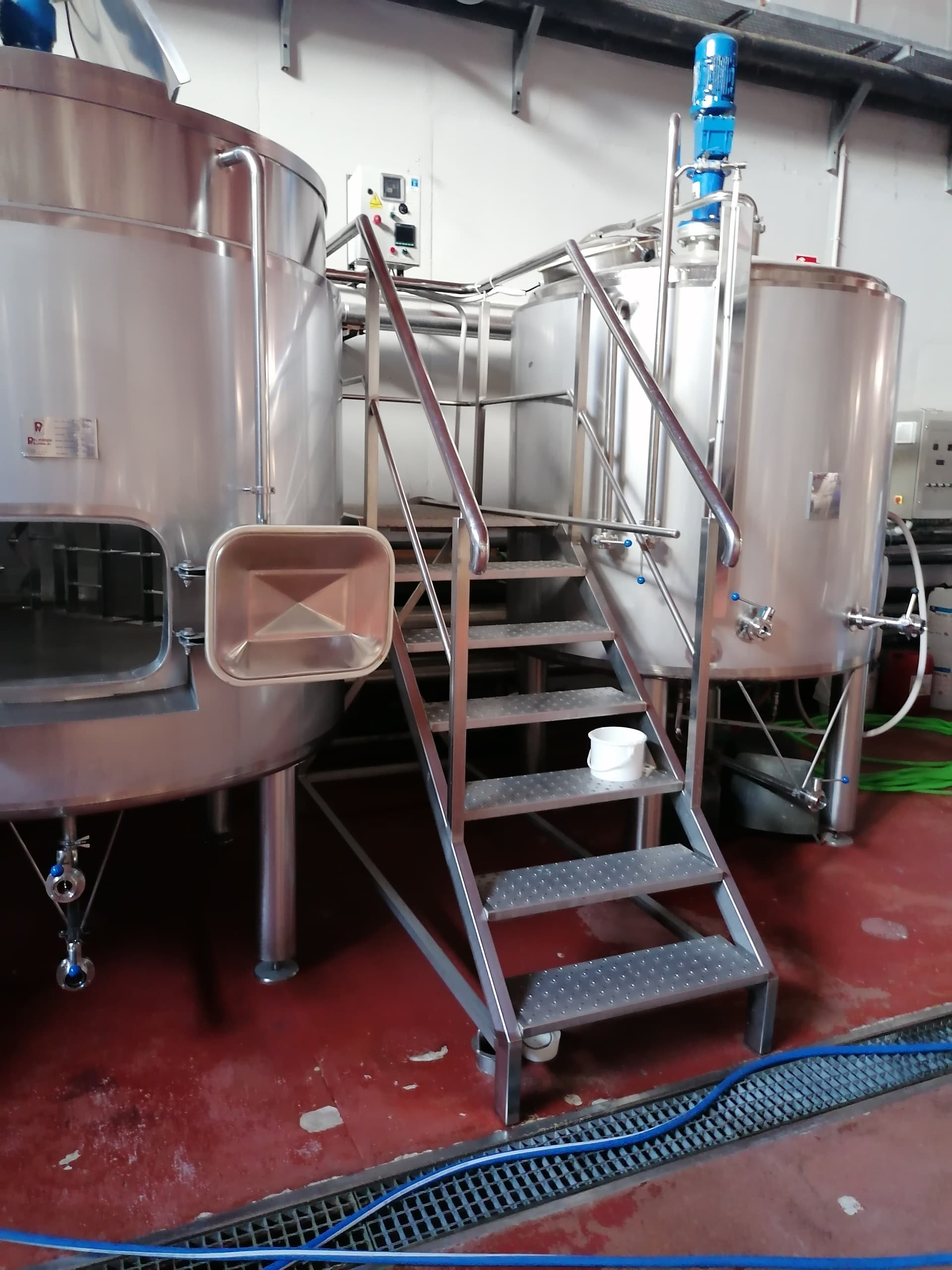

• Work platform with ladder | Cespedes | - | 2018 | Stainless steel, non-slip, with railing
• Connecting bench + piping | Cespedes | - | 2018 | Stainless steel, hygienic DIN valves, incl. Helicoidal pump
• Plate heat exchanger | - | UPF34/70 | - | stainless steel, for wort cooling
• Inline particle filter | - | - | 2018 | stainless steel AISI 304, slot width 0.2 mm
• Sight glass | - | - | - | stainless steel AISI 316, hygienic inline inspection window
• Steam generator | Anfara | AV-300 | 2018 | 300 kg/h, 5 bar, Oil burner, CE-certified
• CIP system | - | CDXM 70-5 | 2021 | flow rate 3.0-9.6 m³/h, 1.5 kW motor
• Semi-automatic bottle filler | Cespedes | ISO-6 | 2016 | 6 filling heads, isobaric, stainless steel
• Semi-automatic can filler + seamer | Braumanufaktur Werk | Fillmatic | 2021 | modular, formats 330-500 ml, approx. 150 cans/h
• Malt mill | Sommer Maschinenbau | Maltman | 2019 | up to 1,500 L batches, 2-roller mill
• Buffer/intermediate tank | - | - | - | 565 L
