Overview

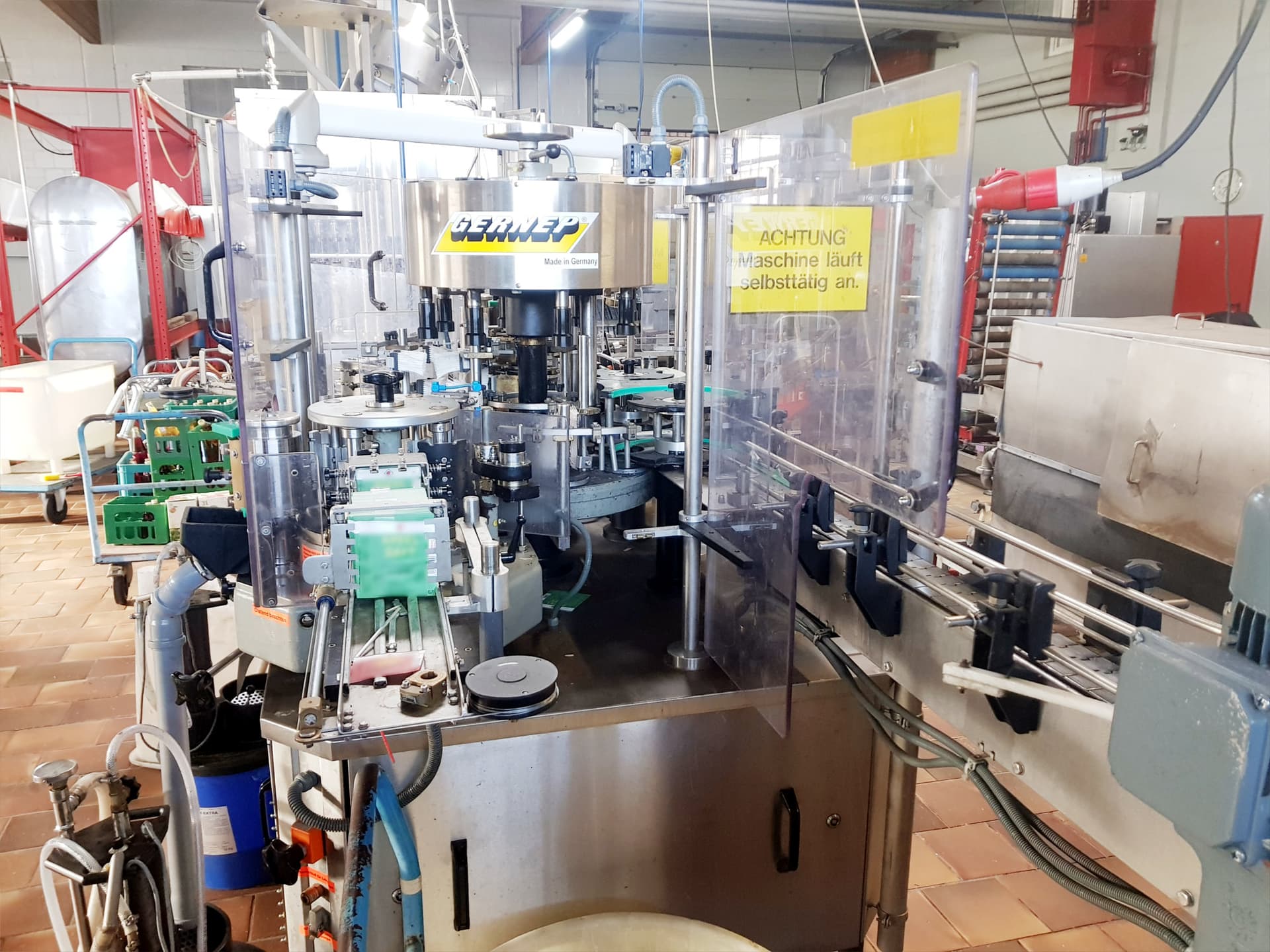

This rotary cold glue labelling machine was manufactured in 2019 by Germany GERNEP.

The machine is designed for cold glue labelling of glass bottles, particularly in the wine industry. It is equipped with two cold glue labelling aggregates for the application of body, neck ring and back labels. The machine features a servo-driven bottle table and a Krones glue pump for precise label application.

Technical data

• Capacity: approx. 5,000 bottles/hour

• Speed range: approx. 1,000 – 5,500 bottles/hour

• Formats:

  • 0.75 L Bordeaux (H=309 mm, Ø74 mm)

  • 0.75 L Schlegel (H=330 mm, Ø76 mm / H=350 mm, Ø78 mm)

  • 1.0 L Schlegel (H=309 mm, Ø89 mm)

  • 0.75 L Burgunder (H=297 mm, Ø82 mm)

• Application: Labelling of glass bottles (wine)

• Configuration: Rotary machine with 2 cold glue labelling aggregates

• Label positions: Body (front), neck ring, back

• Utilities: 400 V / 50 Hz / 3 Phase / N / PE

Scope of Delivery

• Labelling machine | GERNEP | Labetta 4/3/12 784 2A SD | 2019 | Rotary cold glue labeller with 2 aggregates
• Glue system | Krones | Glue pump
• Control panel | GERNEP | Touch panel
