Overview

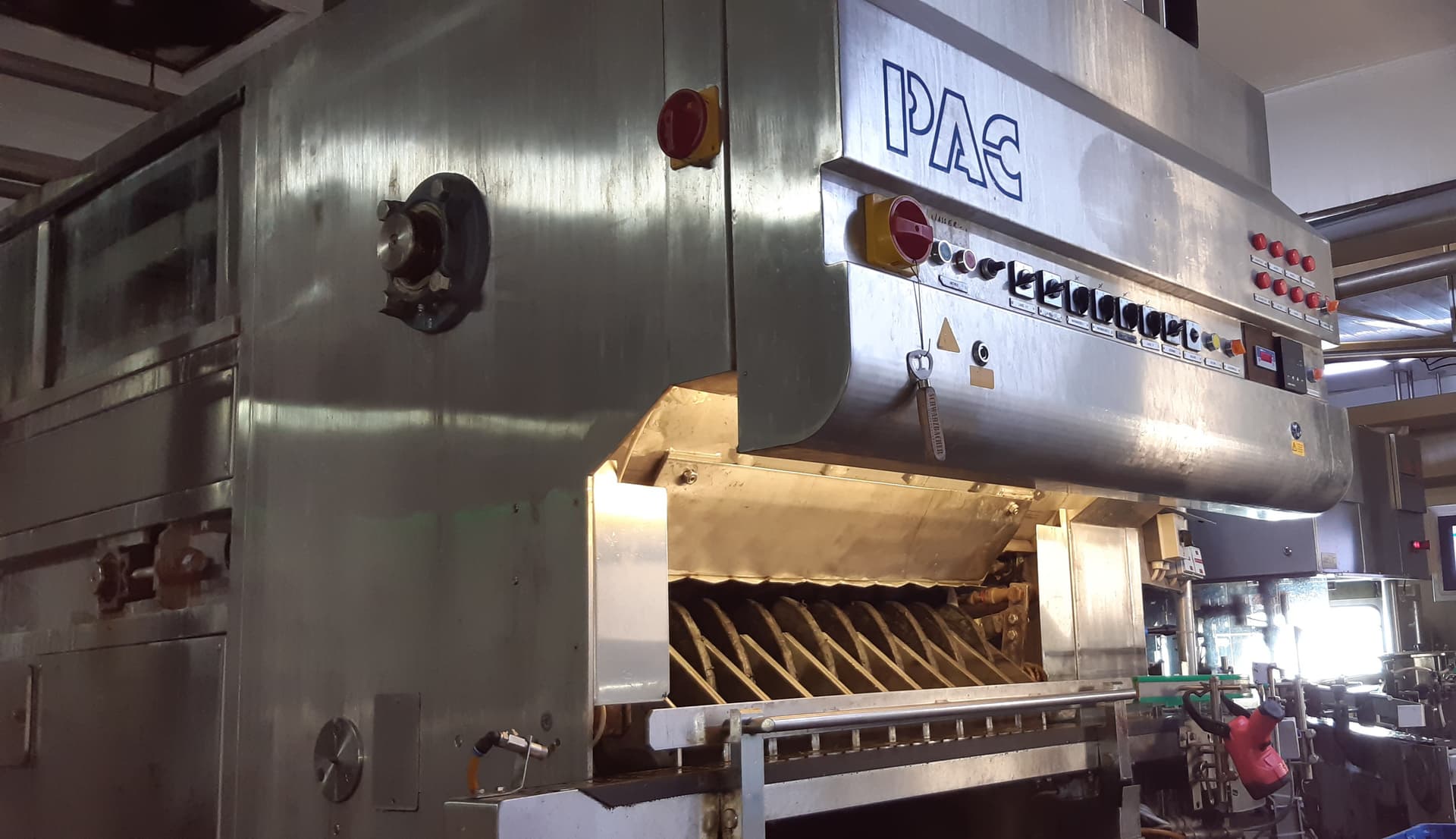

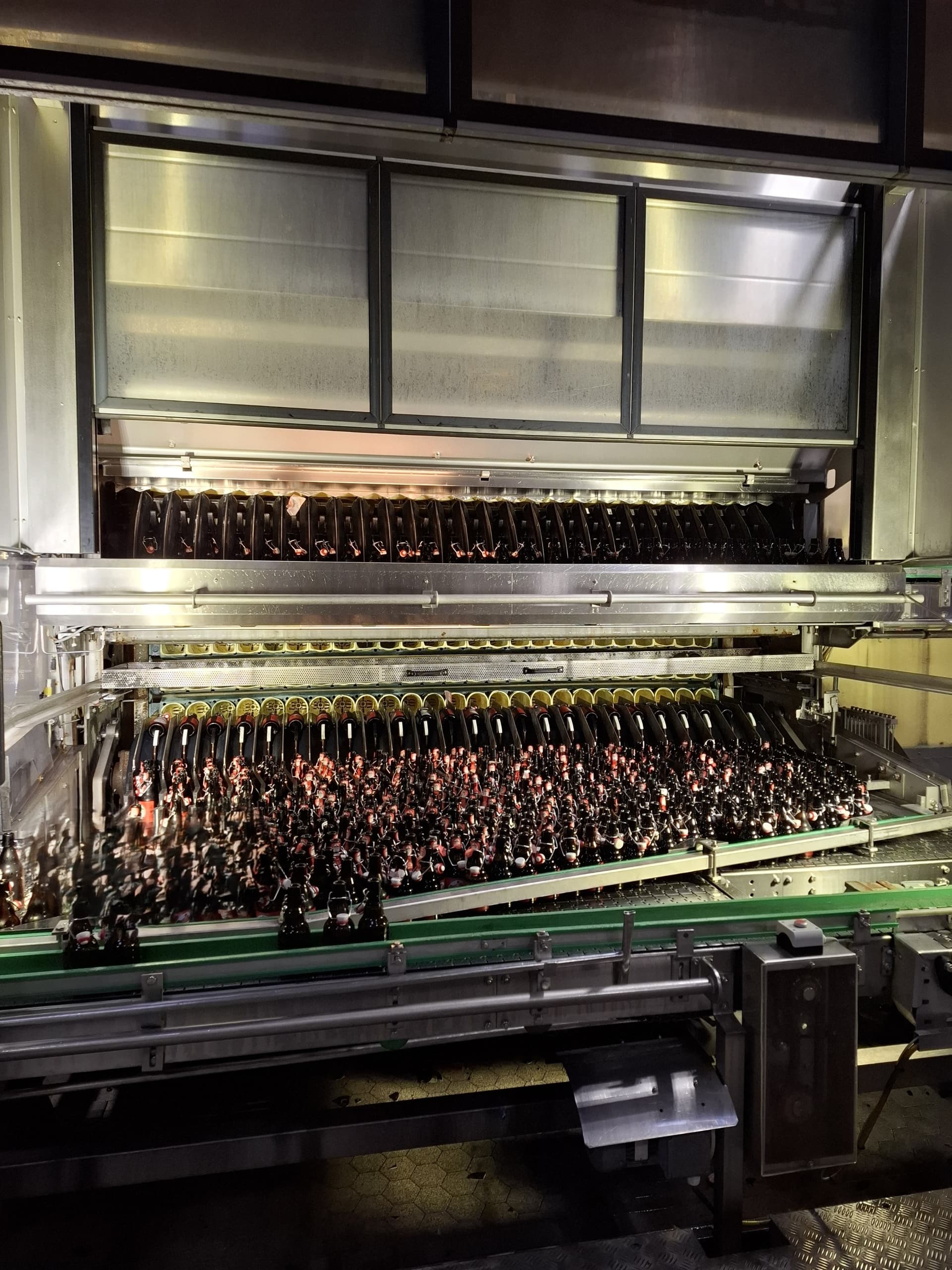

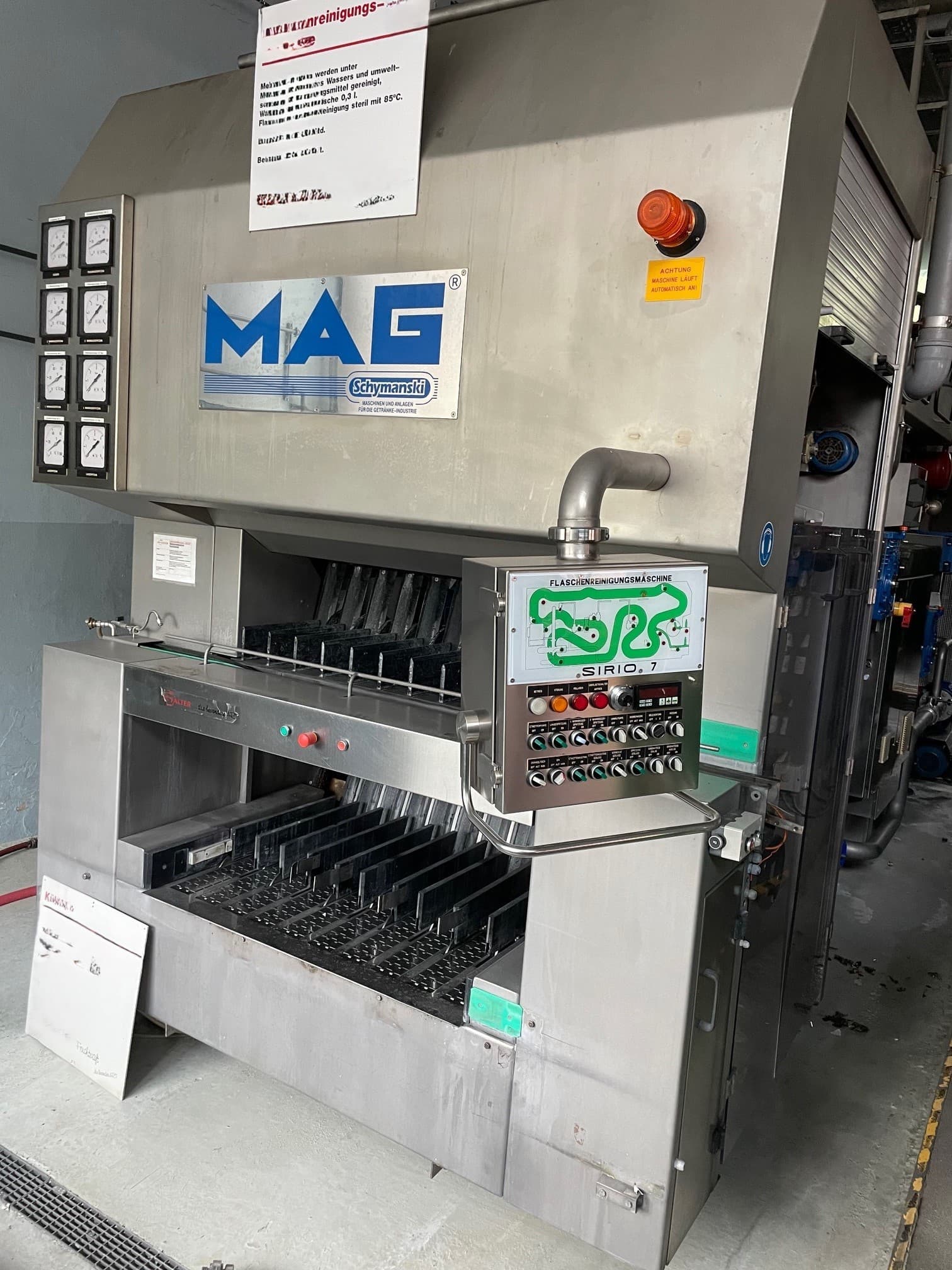

The bottle washer was previously used in a brewery in Germany. Due to the good and continous maintenance the machine is in very good condition. All basins and the machine body are made of stainless steel. The machine is still installed and in production. As the line speed needs to be increased, this machine is replaced, even though it is in great shape.

Tech Specs:

• Rated Capacity: 13,000 bph (based on 1.0L mineral water bottles,
  format: 89 x 310 mm, weight: 600g)
• Total number bottle cells: 3,240 pcs
• Cells per basket row: 18 pcs
• Cell pitch: 110 mm
• Chain pitch: 169 mm
• Treatment Times
  • total processing time: 14.95 minutes
  • total immersion time: 7.56 minutes
  • caustic immersion time: 6.73 minutes
  • caustic filling time: 7.73 minutes
  • caustic contact time: 7.89 minutes
  • total internal spraying time: 70 seconds
  • total external spraying time: 25 seconds
• Dimensions
  • Housing (L x W x H): 8,530 x 2,300 x 2,990 mm
  • Total dimensions (L x W x H): 8,880 x 4,200 x 3,330 mm
• CE certified
• Chemical Dosing Pumps
• Machine data sheet included
• Rotating Spray nozzles
• Single End Machine
• Label discharge rear left
• Label press included
• Finger discharge + finger infeed
• Bottle cells made of plastic
• Full machine body in SST
• Vapor discharge
