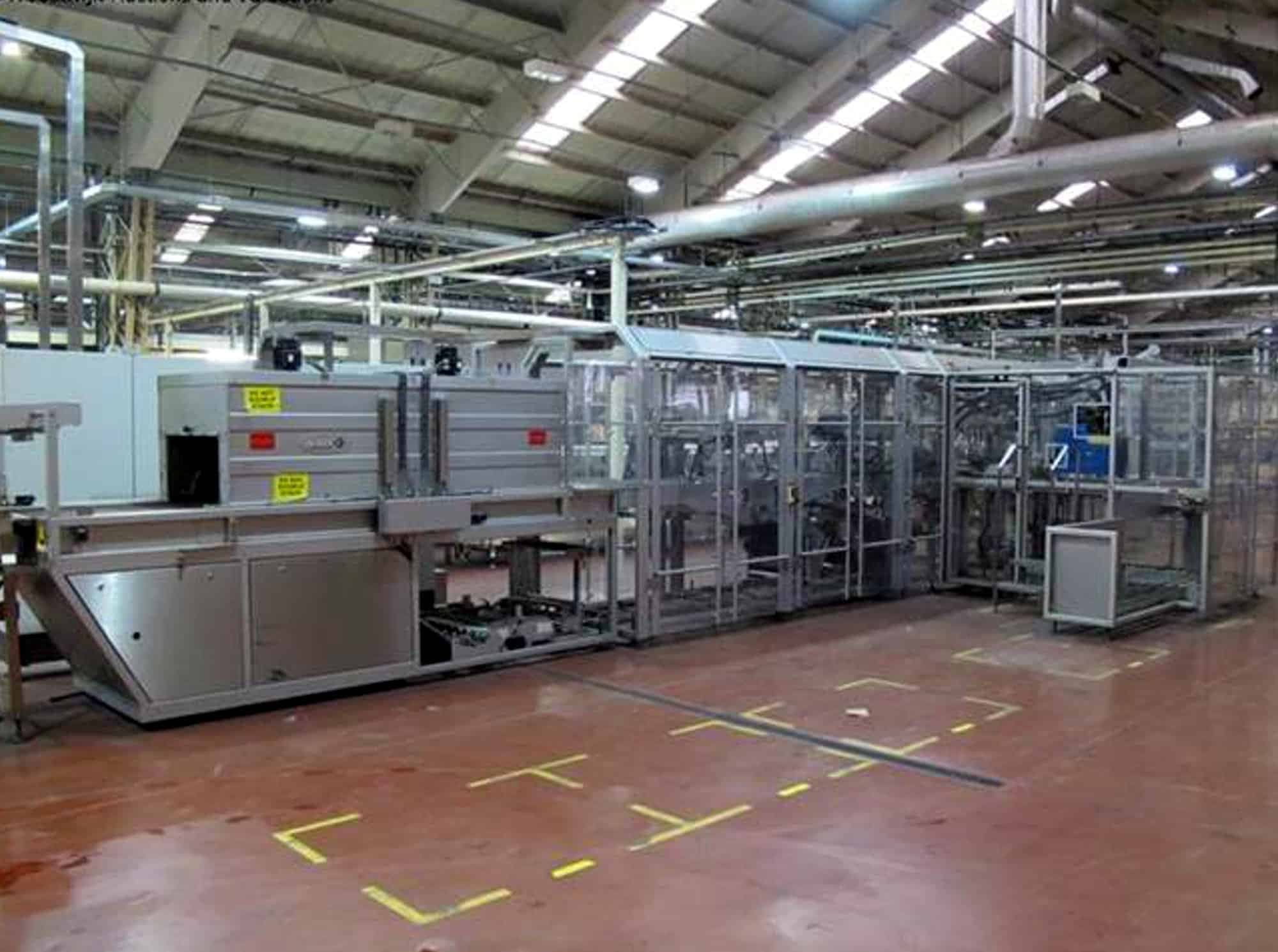

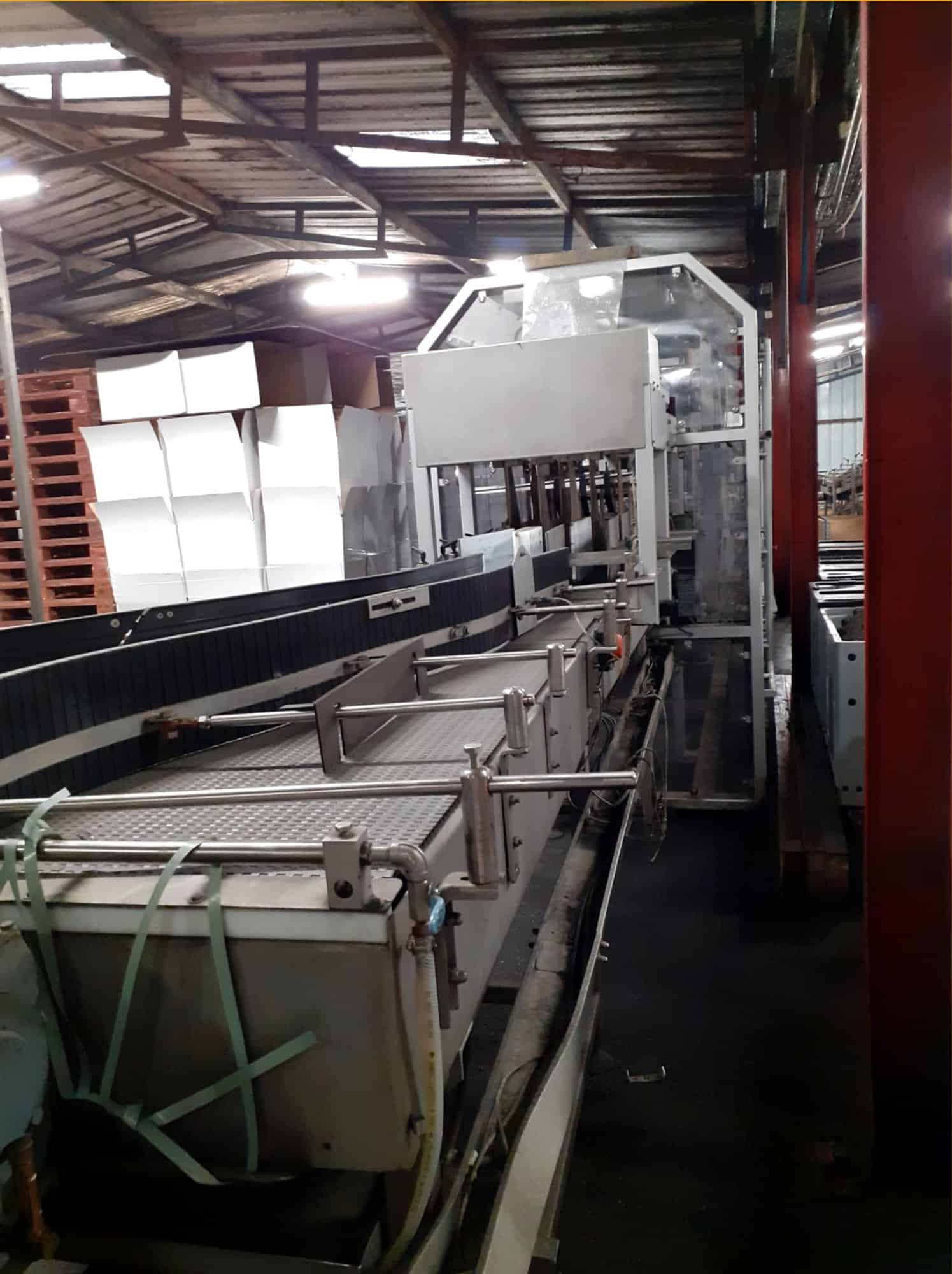

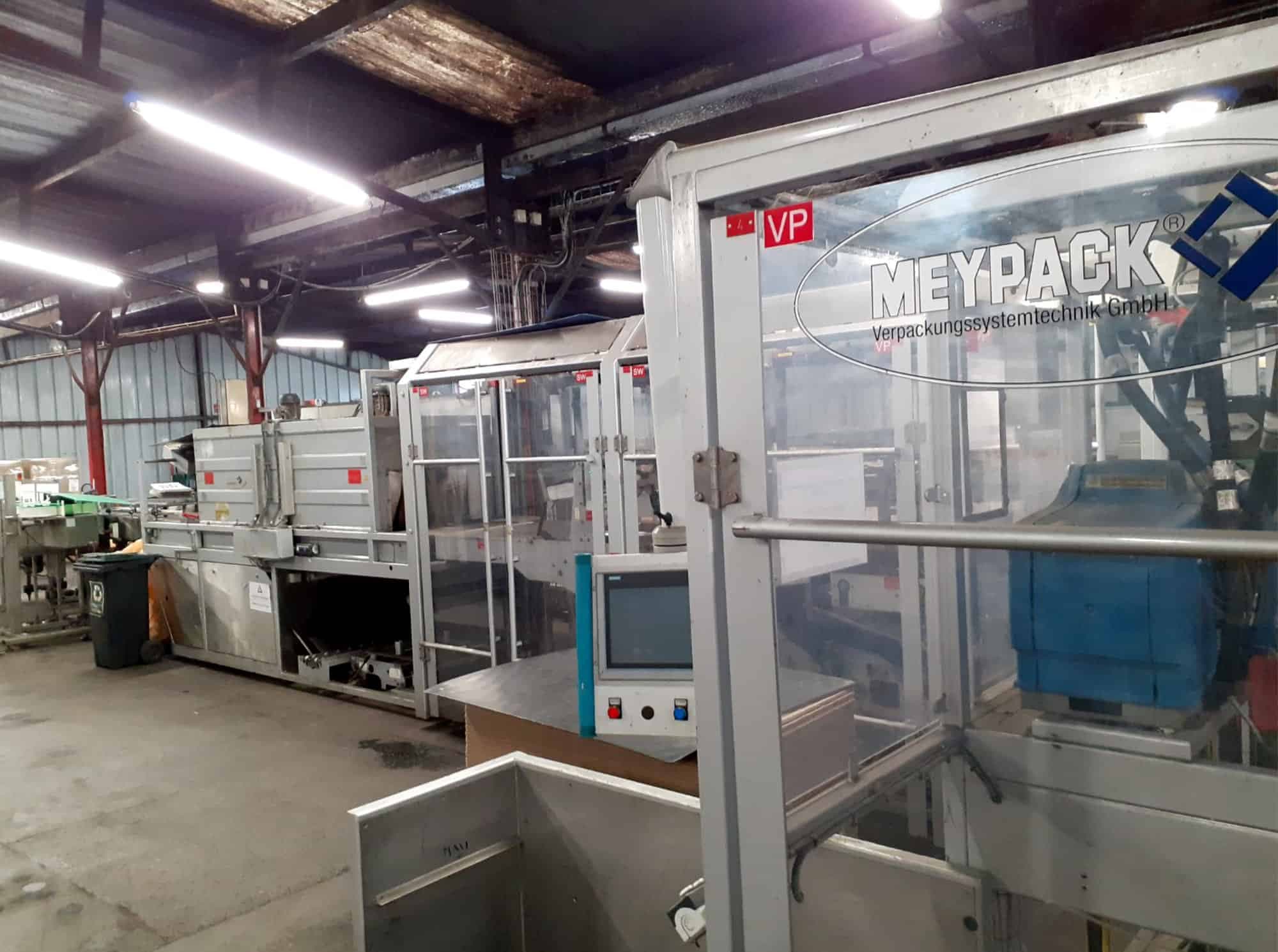

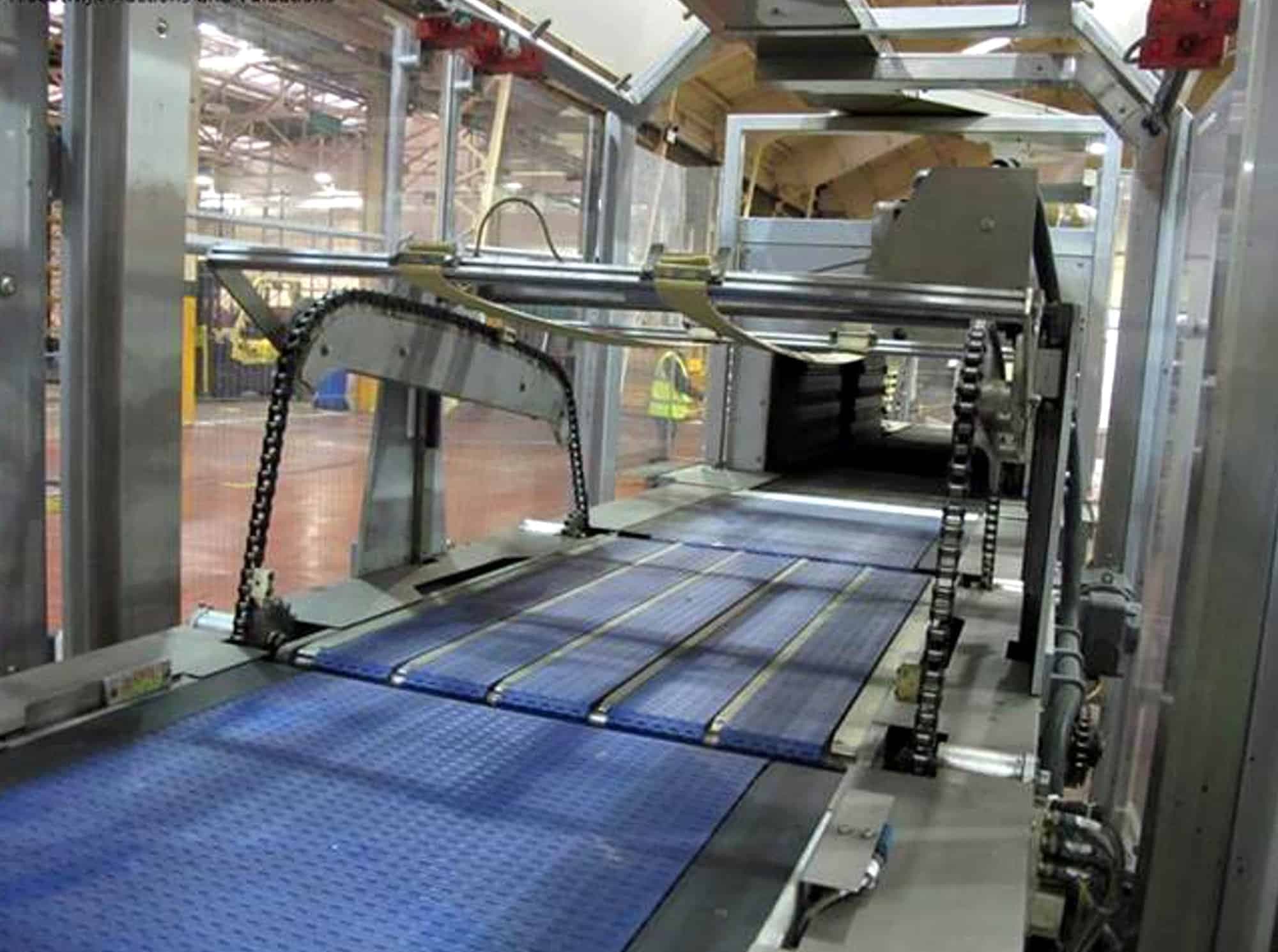

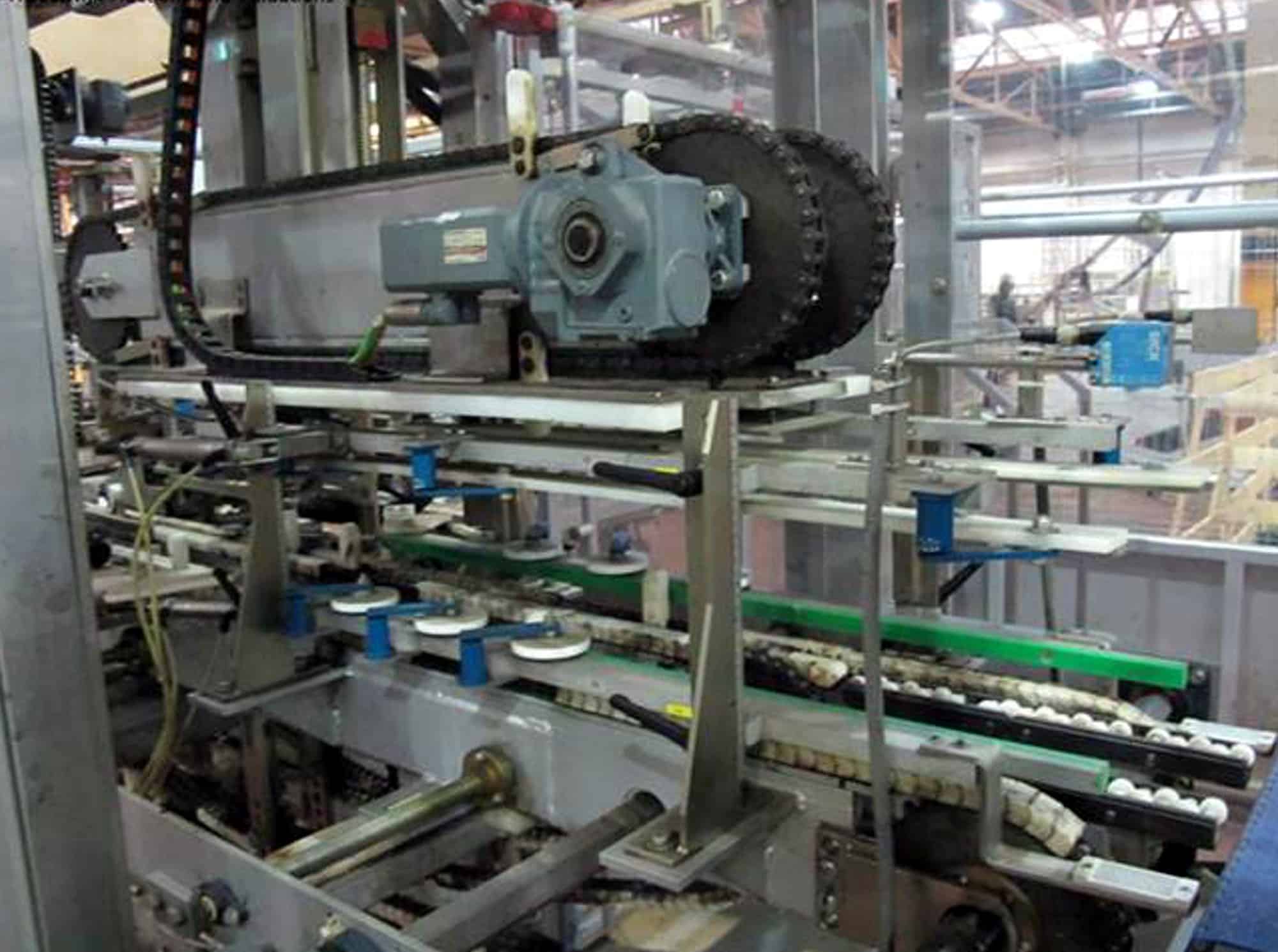

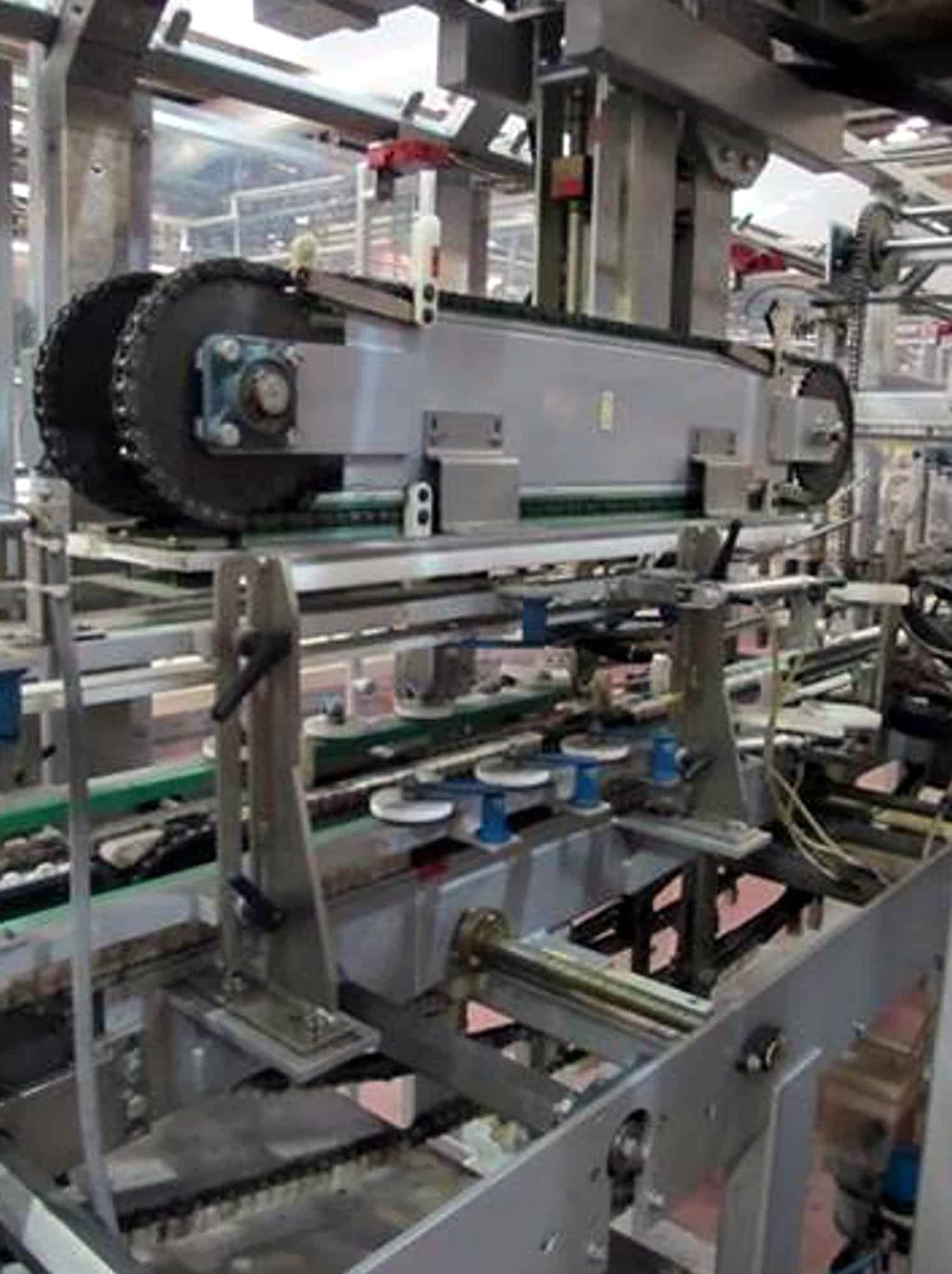

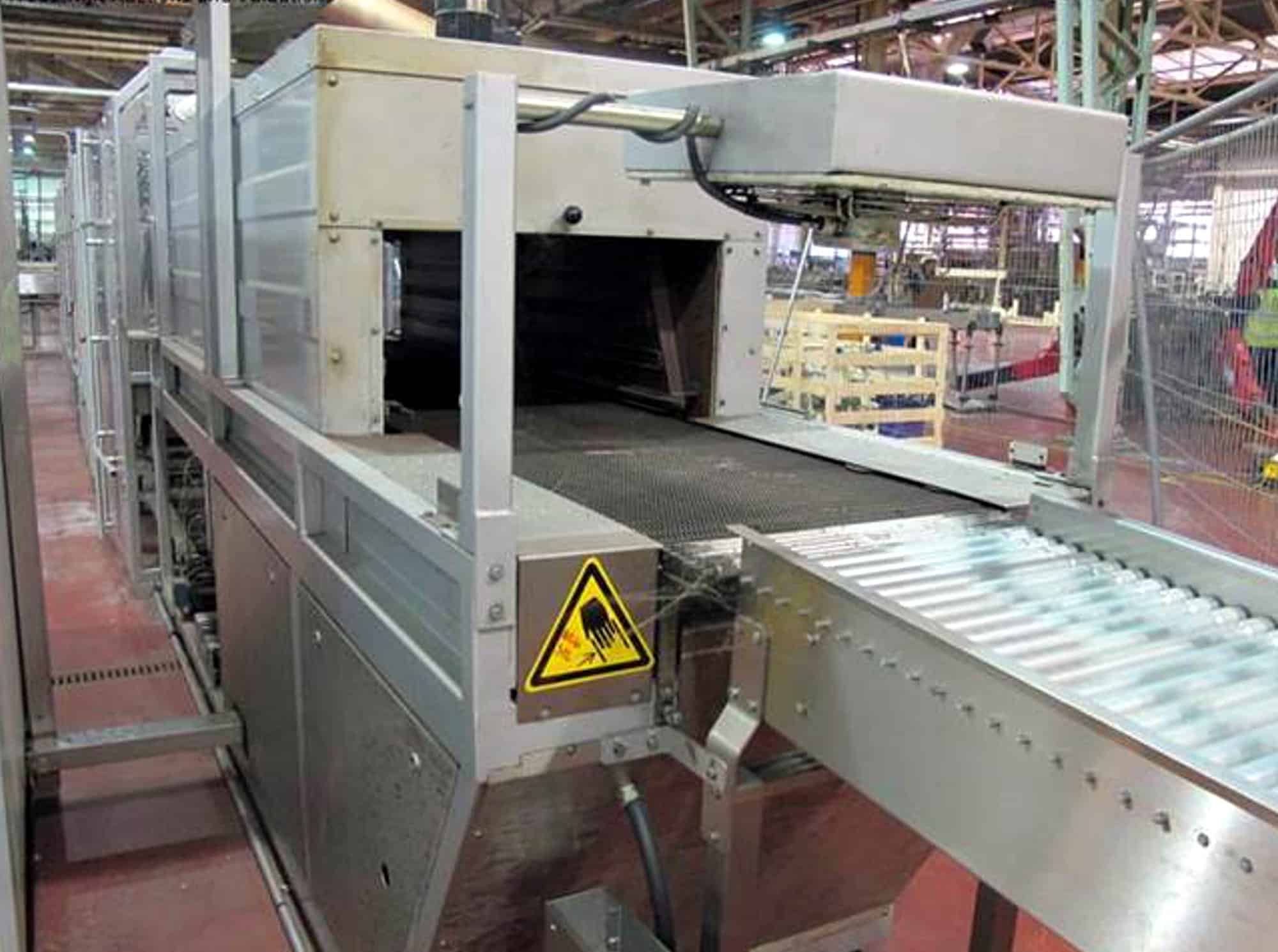

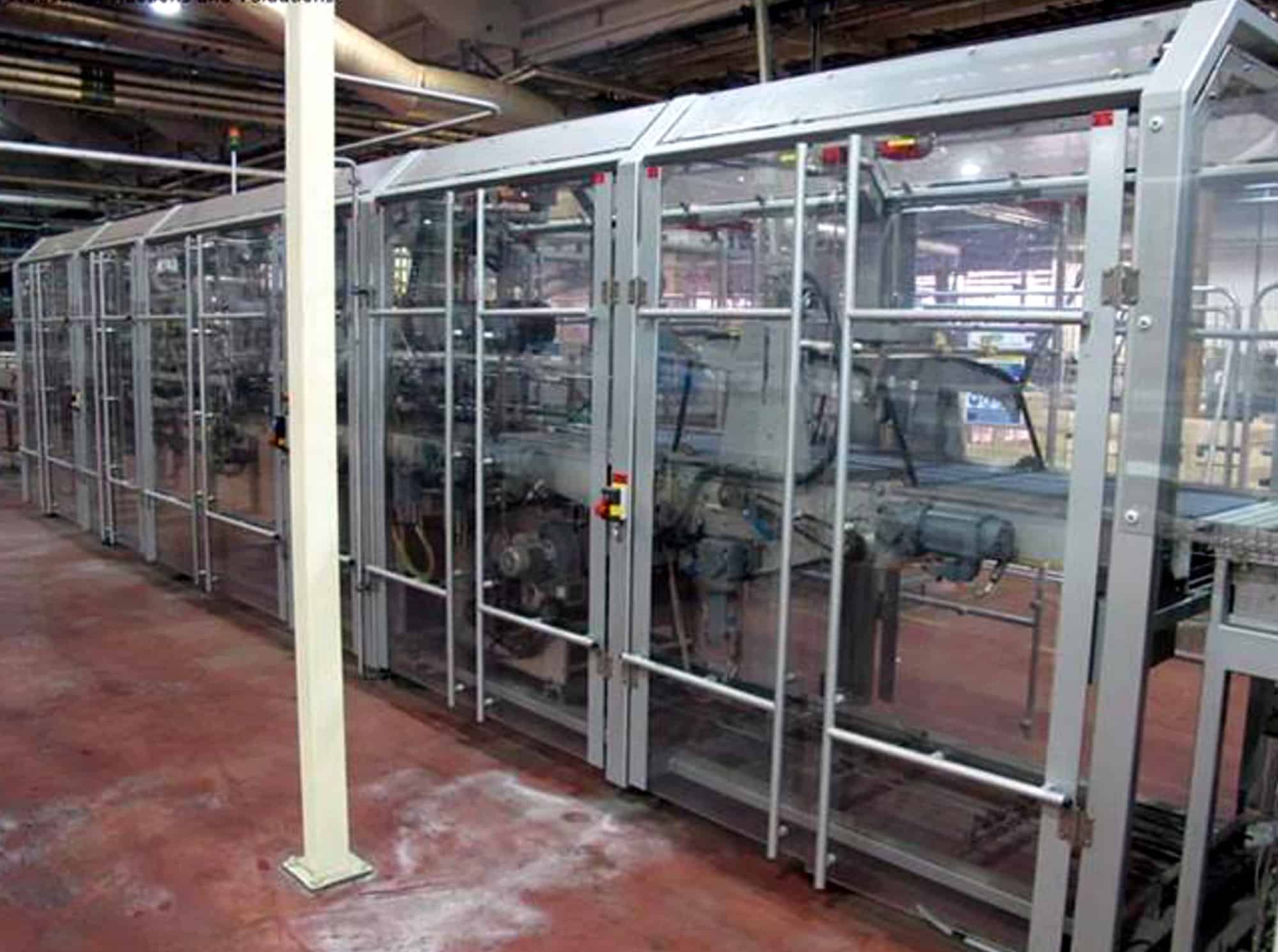

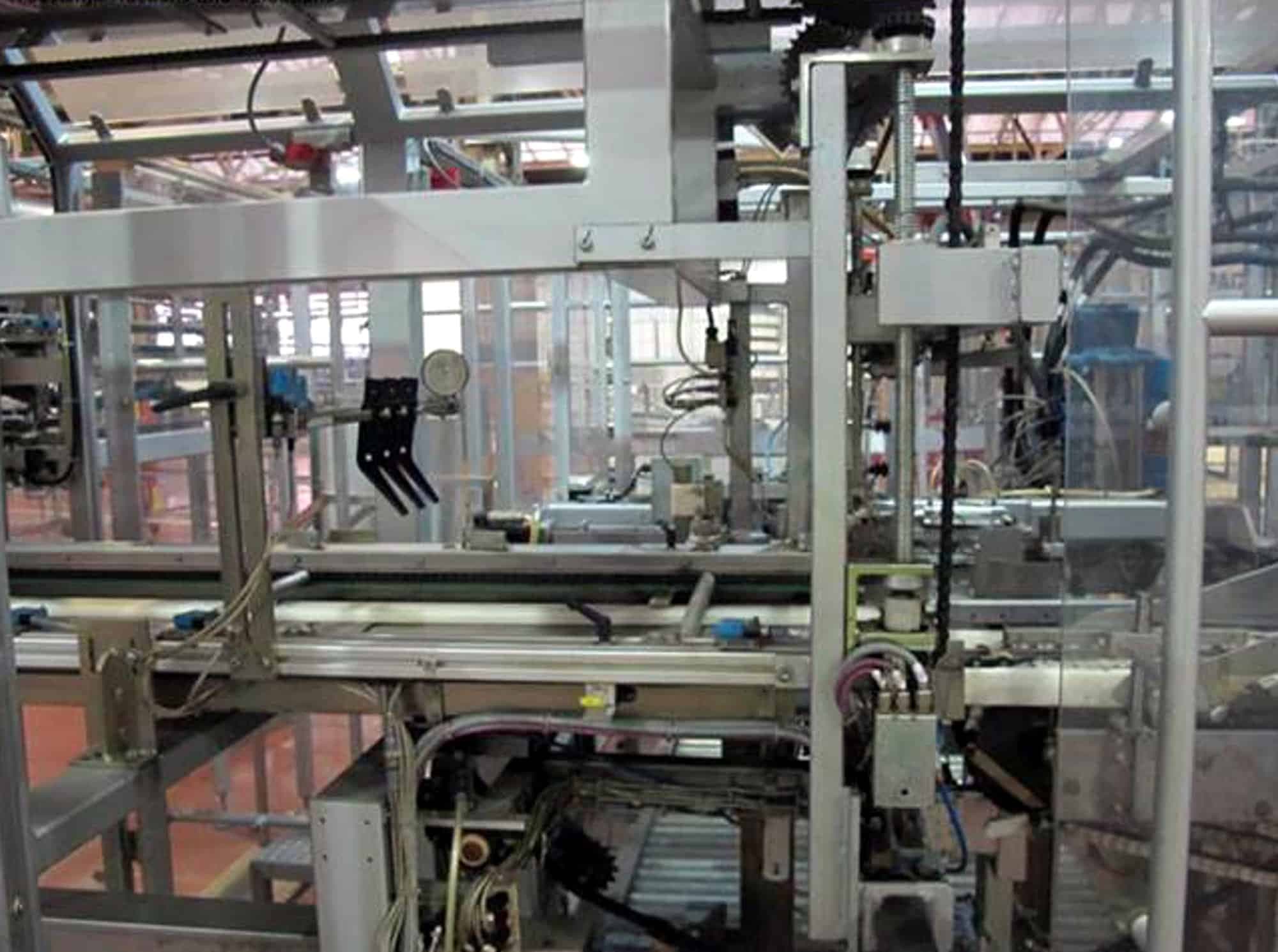

Meypack VP 501 + SW 60T Combined (Tray & Shrink Packer) (2006)
52,000 € (ExWorks)
Get an official quote
Fill in the information below to receive an official quote on the machine you have selected.
Country:
France
Year:
2006
Category:
Packaging
Manufacturer:
Meypack
Model:
VP 501 + SW 60T
Availability:
Immediately
SKU:
FR-PAC-MEY-2006-00001
Overview
Continuous Motion High Speed Tray / Wrap Around – Shrink Wrap- Packaging Line for the fully automatic and continuous packing of bottles into trays and subsequent shrink wrapping of the trays or into wrap-around cases. Wide range of formats processable.
Tech Specs:
- Capacity: up to 30 packs / Minute, see below
- YOM: 2006
Features:
- Suitable for a wide range of formats
- Formats processed:
1) 330ml Ø 57 x H 231 mm 3 x 4 / Tray with film
2) 1 lt Ø 88 x H 313 mm 2 x 4 / WA
3) 750ml Ø 88 x H 312 mm 3 x 4 / WA
4) 330ml Ø 58 x H 216,2 * 3 x 4 / Tray with film
5) 750ml Ø 88 x H 312 mm 2 x 3 / Tray with film
6) 275ml Ø 58 x H 218 mm 4 x 6 / Tray w. film
7) 1lt. PET Ø 80 x H 280 mm 3 x 4 / Tray w. film
8) 330ml Ø 68 x H 155 * 3 x 4 / Tray with film
9) 330ml Ø 68 x H 155 * 4 x 6 / Tray with film
10) 330ml Ø 60 x H 227 * 3 x 4 / Tray with film
11) 750ml Ø 82 x H 310 * 3 x 4 / WA -
Filler Speed:
1), 6), 7)+11): 11.000 bph
2) + 10): 9.000 bph
3): 12.000 bph
4) + 5): 8.500 bph
8): 13.500 bph
9): 15.000 bph -
Capacity: Including a 20% increase on the filler and with the above mentioned products and patterns, this equivalent to
1) 18 packs/min.
2) 22,5 packs/min.
3) 20 packs/min.
4) 30 packs/min.
5) 28 packs/min.
6) 10 packs/min.
7) 18 packs/min.
8) 22,5 packs/min.
9) 12,5 packs/min.
10) 7,5 packs/min.
11) 18 packs/min. -
Pack Dimensions:
Length: 120 – 300 mm
Width: 210 – 400 mm
Height: 100 – 350 mm
Tray-edge height: 40 – 150 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
