Overview

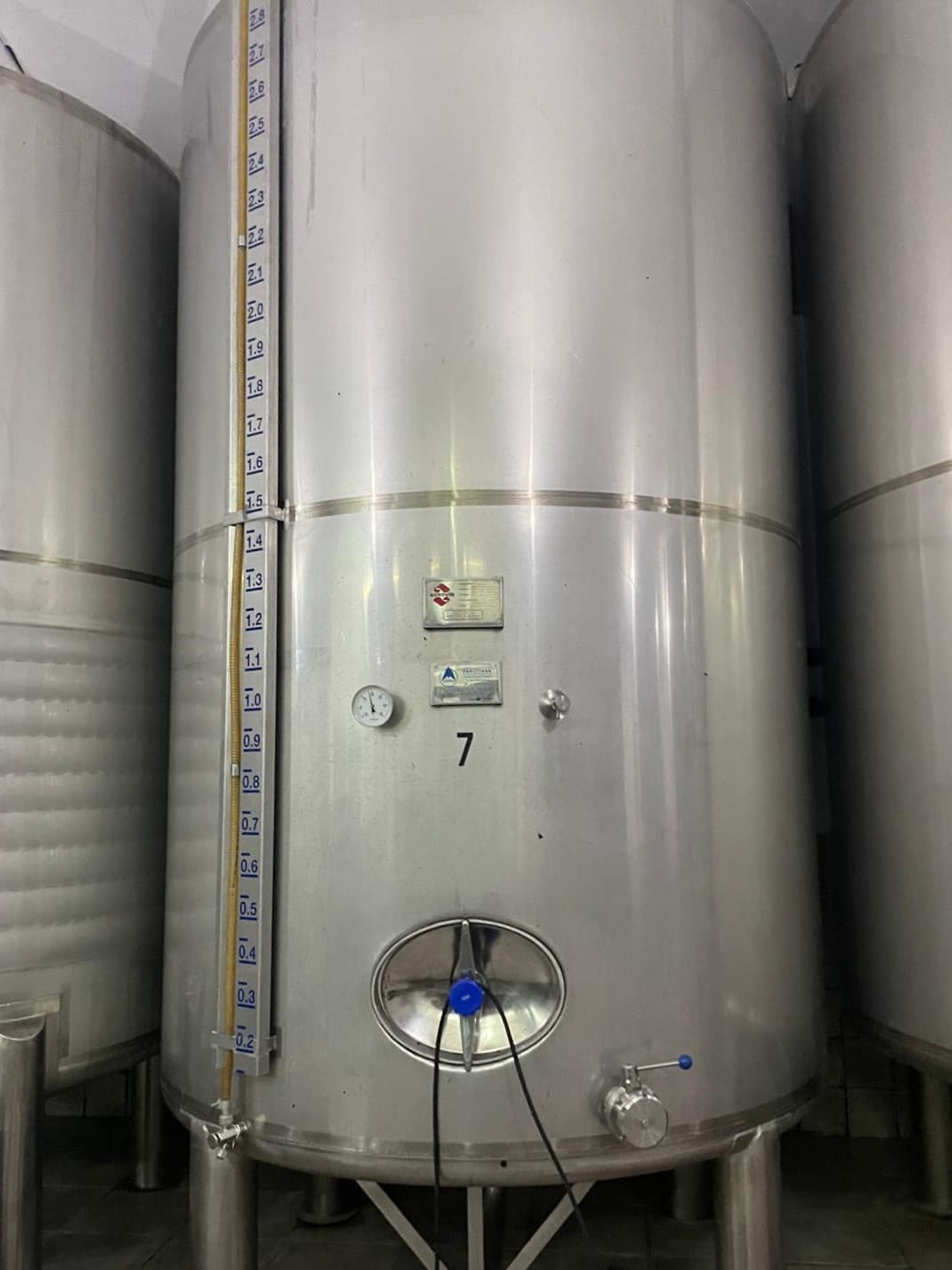

These 8 isobaric pressure tanks (500 hl each) manufactured by Sirio Aliberti in 2005 originate from the wine industry and were previously used for sparkling wine production. With a working pressure of up to 6 bar and full insulation, the tanks are well suited for fermentation, maturation, and storage of carbonated beverages, including beer, sparkling wine, and similar products. The tanks are constructed from carbon steel with an internal food-grade epoxy coating, combined with polyurethane insulation and stainless steel external cladding. This design represents a traditional and cost-efficient alternative to stainless steel tanks, which became standard in later years. Thanks to their large volume and isobaric capability, these tanks are particularly suitable for high-capacity production environments. As with all epoxy-coated vessels, regular inspection and renewal of the internal coating is required, depending on operating conditions.

TECHNICAL DATA

• Manufacturer: Sirio Aliberti

• Year of Manufacture: 2005

• Quantity: 8 units

• Type: Isobaric pressure tank

• Application: Fermentation, maturation, storage of carbonated beverages

• Capacity: 500 hl per tank

• Material: Base: Carbon steel Internal coating: Food-grade epoxy Insulation: Polyurethane External cladding: Stainless steel sheet

• Working Pressure: 6 bar

• Dimensions (per tank): Internal Diameter: approx. 3,200 mm External Diameter: approx. 3,450 mm Cylinder Height: approx. 5,250 mm Leg Height: approx. 1,200 mm Total Height: approx. 7,800 mm
