Overview

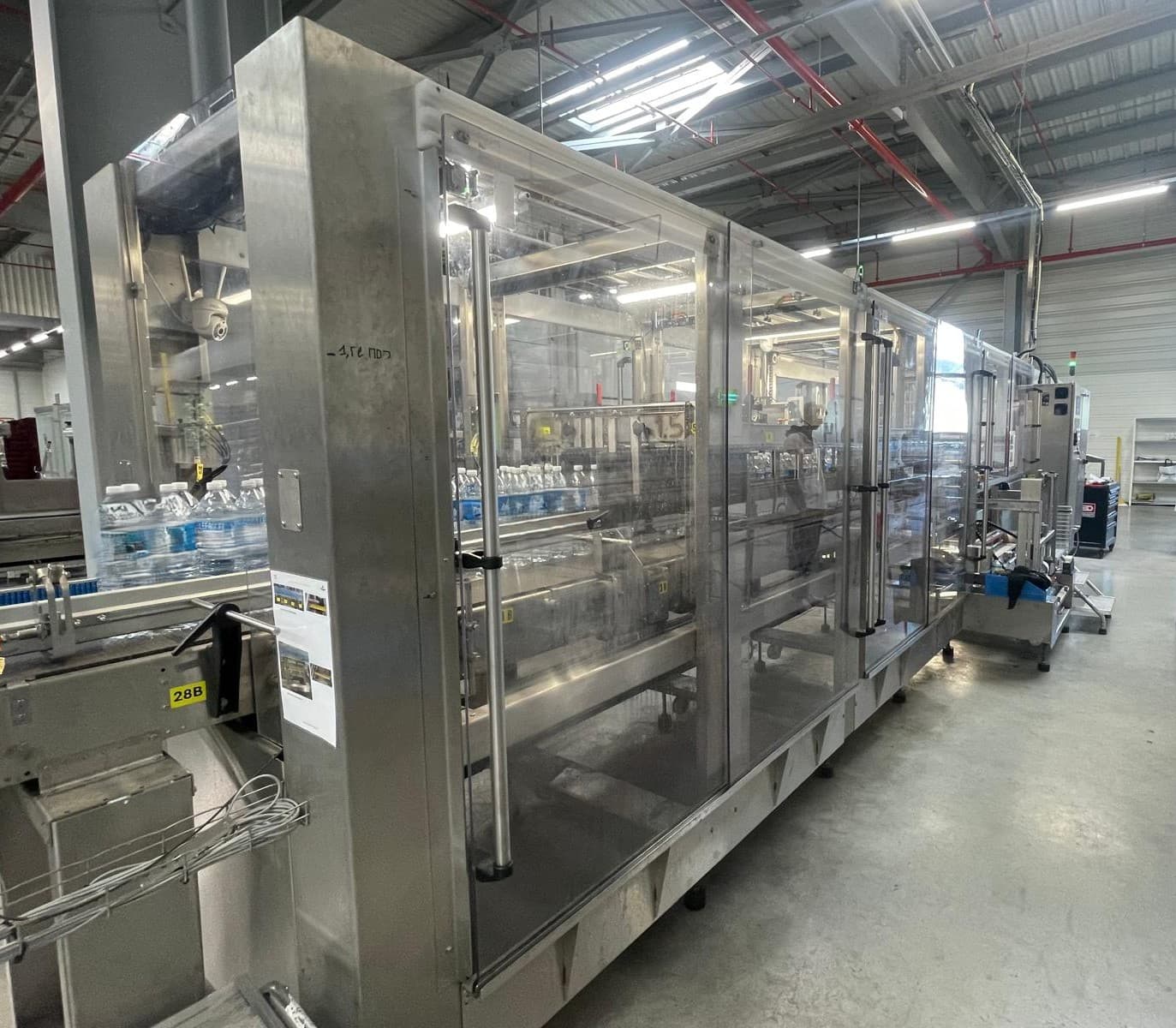

This repacking line for bottles (crate to wrap-around sixpacks) was manufactured in 2020 by German company Wilhelm Fischer.

The system is designed to transfer bottles from 20- and 24-crate formats into wrap-around sixpacks using a gripper arm with suction cups and an integrated packaging machine. The machine is still installed and can be visited at any time on request. .

Technical data

• Capacity: 28 cycles/min
• Formats: Input: 20 and 24 bottle crates / Output: wrap-around sixpacks
• Application: Bottle repacking and secondary packaging
• Configuration: Gripper arm with suction cups, wrap-around packaging machine, conveyor system
• Wrap-around packer
  • Electrical supply: 3x400 V + N + PE
  • Control voltage: 24 VDC
  • Frequency: 50 Hz
  • Power: 6 kW
  • Air pressure: 6 bar

Scope of Delivery

• Repacking system, Gripper arm with suction cups for bottle handling
• Wrap-around packer | Wilhelm Fischer | MCP30 | 2020 | Packaging machine for sixpacks
• Conveyor system | Bottle and pack conveyors
