Overview

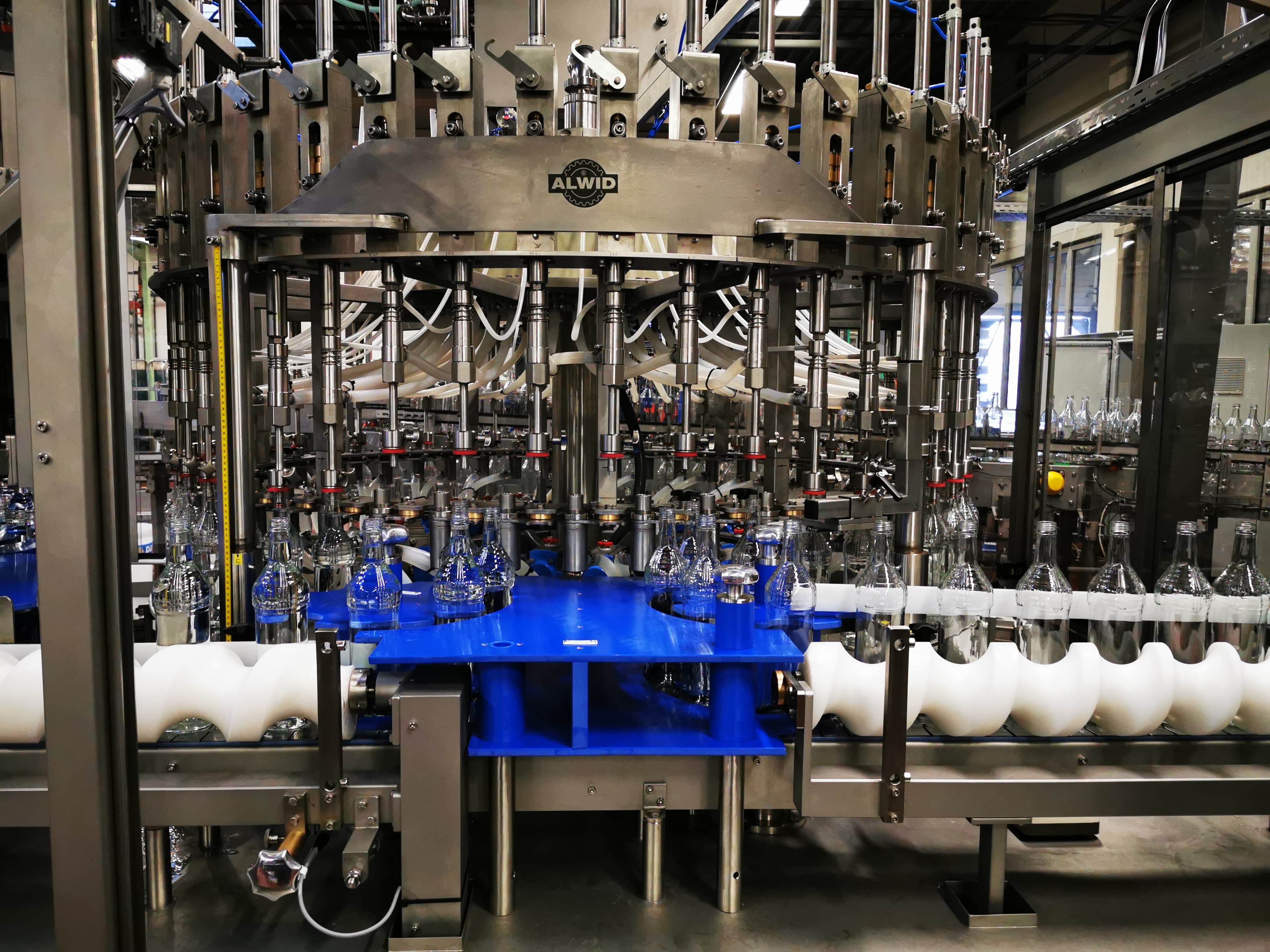

The filler + capper block was manufactured in 2021 by the German company ALWID. It is part of a new filling line and can fill chemical products into plastic containers. The machine has ATEX certification, which allows it to process explosive products. The machine can be purchased with warranty.

Technical data

• Fully automatic rotary filler
  • Filling system: mass flow meter system, type: Endress+Hauser LPG MASS
  • Number of filling stations: 16 filling stations
  • Max. container dimensions: Height: 50-300 mm, Ø: 20-100 mm
  • Pressurized feed tank for constant flow through flow meter
  • Below level filling to avoid foam formation during filling
  • Adjustable bottle neck centering
  • Electr. level measurement
  • CIP capable
  • Designed for riser pipe processing
• Fully automatic round capper
  • Number of capping heads: 5
  • With torque adjustment via slip clutches
  • With fully automatic cap sorting and cap feeding via BONINO disc sorter with elevator
  • With inside drop switch to switch off the machine in case of missing closures
  • Cap hopper
  • Cap control
