Overview

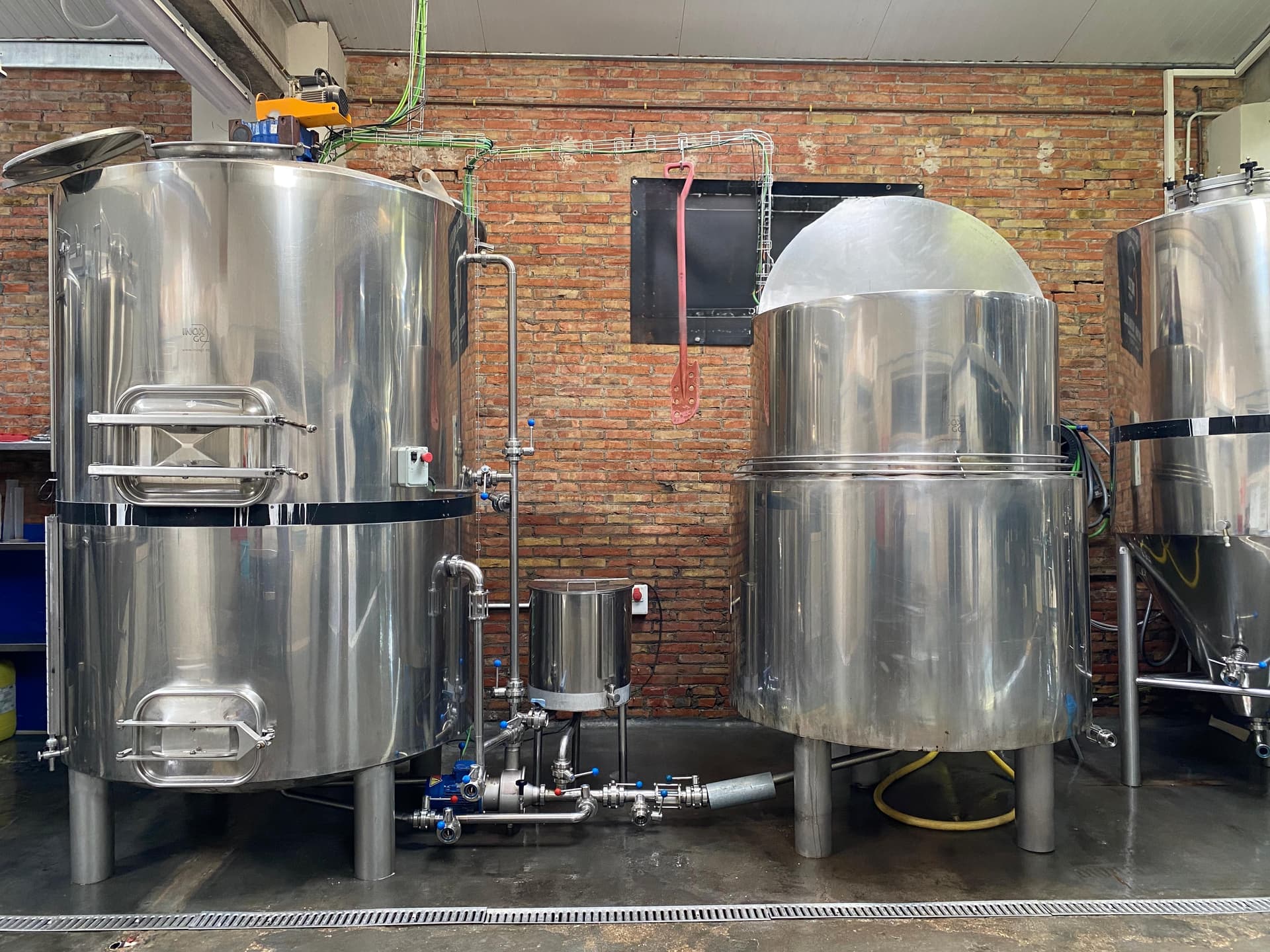

This complete brewhouse was manufactured and put into operation in 2014. It is semi-automatic, heated by steam and has a total capacity of 20 - 25hl.  The brewhouse is still in operation and can be visited.

• Capacity
  • 25 hl at 13% plato
  • 22 hl at 15,5% plato
  • 20 hl at 17% plato

Components

Malt processing

• Conveying, grinding and feeding to the mash tun
• 1000kg malt silo
• Mashing time: 20 - 30 min
• SPS controlled

Mash and boiling vat

• All stainless steel 304
• Double walled single mash tun
• Agitator with 2 speeds
• Temperature probe
• CIP connection

Filter tank

• 3.500 l
• Removable filter grids
• CIP connection
• Automatic cleaning

Whirlpool tank

• 3.500 l
• Lateral wort inlet
• CIP connection

Hot water tank

Control system

• Automatic crushing, mashing, filtering, rinsing and boiling of the wort
• Storage of up to 10 beer recipes

Heat exchanger

• 2,500 l/ h
• Oxygen supply

Brewhouse

• On stainless steel platform
• Density measurement by means of cooling tube

Steam boiler

• Gas-fired steam boiler for 300 kg of steam

System for softening and treatment of water entering the boiler
