Krones Modulpal 2A / Robobox Palletizer (2015)

Overview

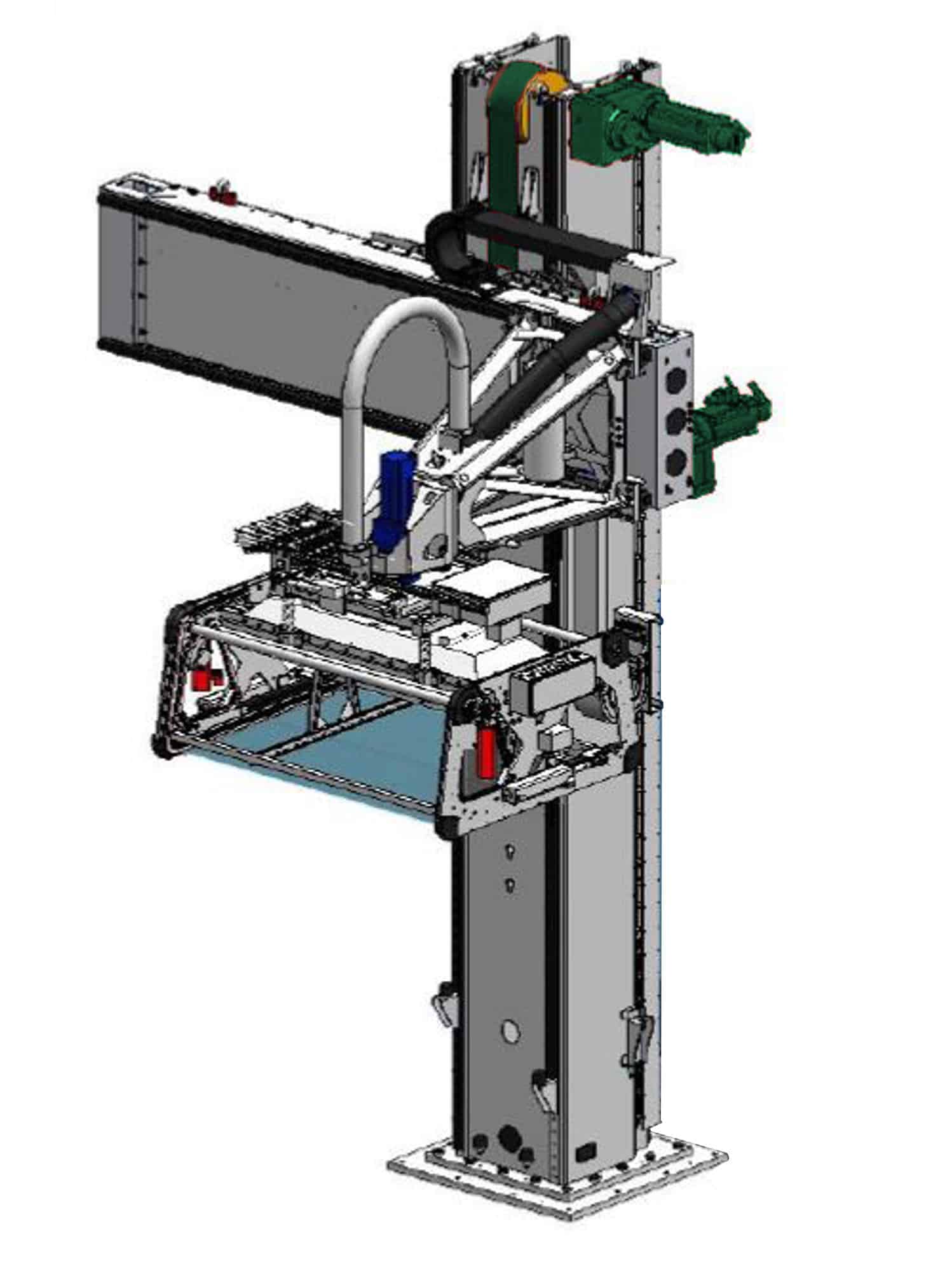

The Krones Modulpal 2A palletiser picks up the pre-grouped packs at the grouping station and sets them down again at the loading station. Depending on the gripper head fitted, this palletizer is suitable for palletizing non-returnable and returnable packs or depalletizing returnable packs. Up to 500 layers per hour can be palletized. The Robobox grouping system arranges packs according to a predefined layer pattern. Positive-locking precision grippers bring the packs safely and gently to the pre-programmed position.All commercially available non-returnable packs can be processed.
This well-maintained machine comes from the liquidation of a contract bottler’s line. Mainly soft drinks in PET bottles have been processed on the machines. The line will be dismantled because the space is needed for a new line for other products.

Tech Specs:

• Load Capacity: 700 kg
• 1 l PET bottles / 6 item shrinkpacks were processed
• Suction gripper system for flexible layer pads

Scope of supply:

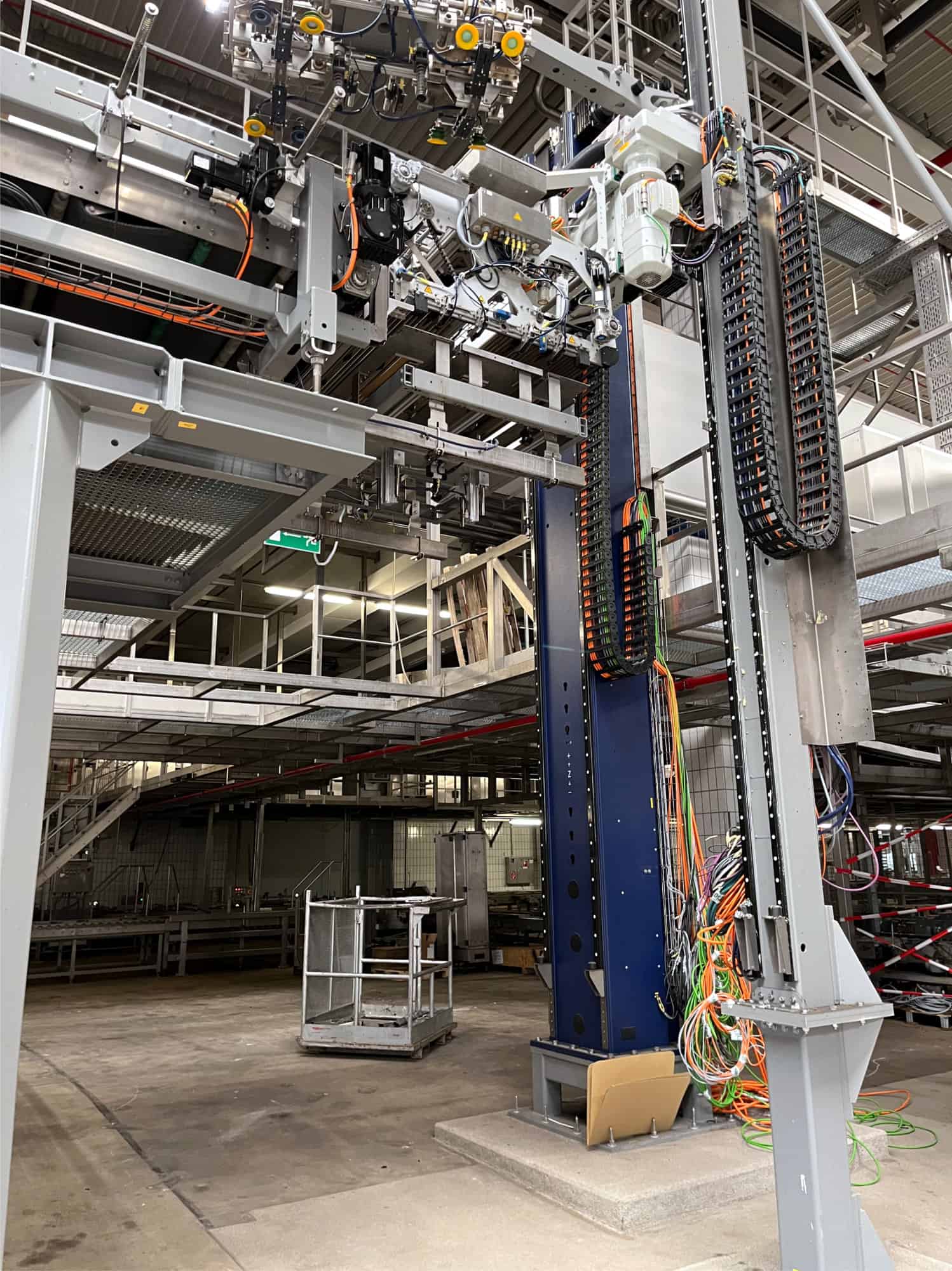

• Palletizer Modulpal 2A

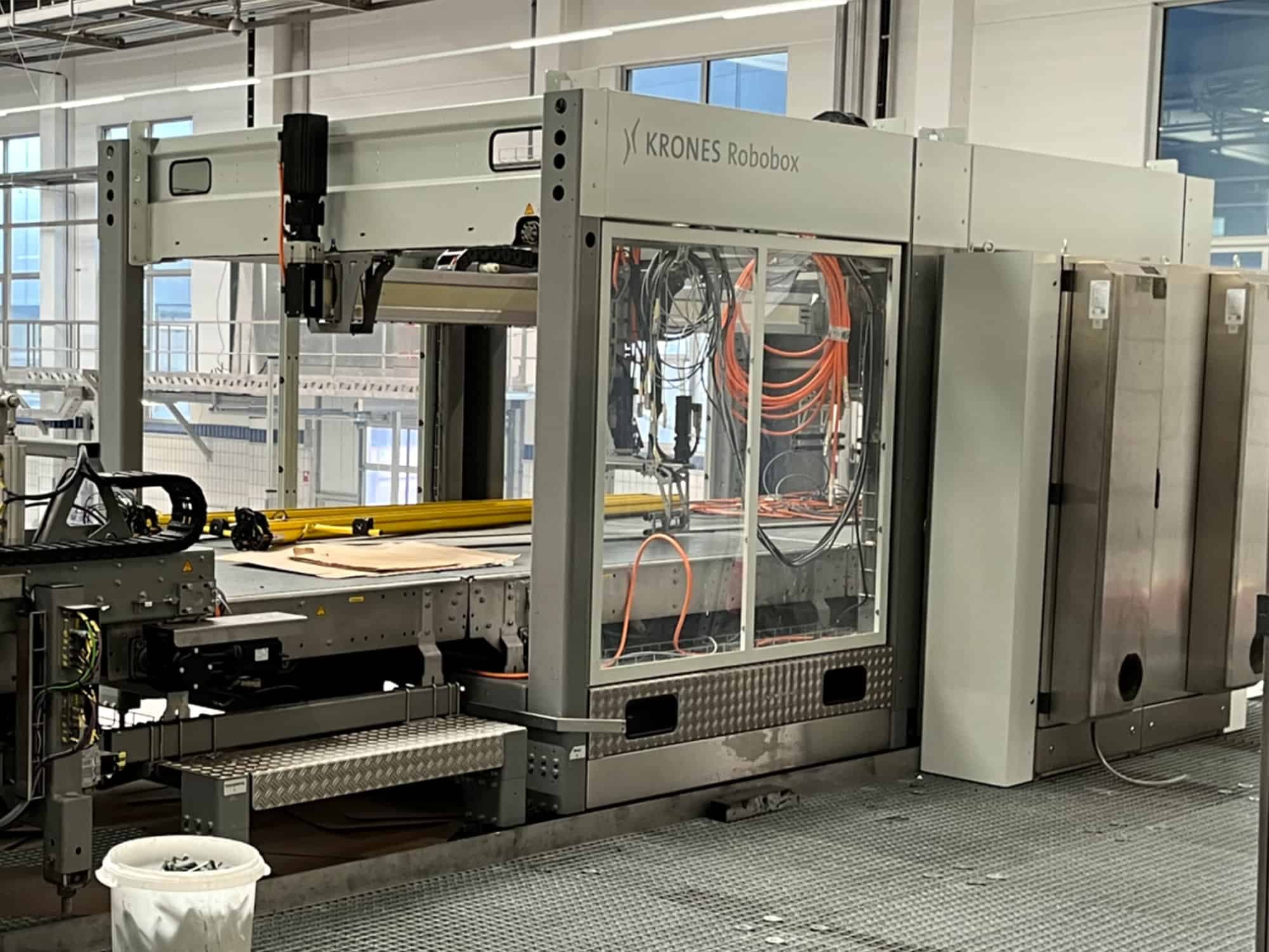

• Grouping System Robobox
