Cimec IMEC America DPS 6/6/1 Line for Non-Returnable Glass Bottles (2018)

80,000 (ExWorks)

Get an official quote

Country:

Germany

Year:

2018

Category:

Complete Filling Lines

Manufacturer:

Cimec

Model:

IMEC America DPS 6/6/1

Availability:

Immediately

SKU:

DE-COM-CIM-2018-00001

Overview

This America DPS 6/6/1 C´ filling line was assembled in 2017 by Italian manufacturer CIMEC. The line was cleaned and dismantled in 2024. The bottling line for beer and CSD has a filling output rate of 900 bph with 0.33L cylindrical glass bottles. The bottling temperature has to be 0~4 °C.

Automatic Linear Labelling Machine

Clockwise direction (max production 2000 bph/h – the max production can change according with the length of the labels and the number of labeling stations

Machine able to work with CYLINDRICAL GLASS BOTTLES – basically for the application of one partial or wraparound self adhesive label.

  • Adjustable height 1050 +/- 50mm
  • SYSTEM Self-adhesive
  • SELECTION OF THE BOTTLES By screw
  • NUMBER OF STATIONS (base) 1
  • SPEED ADJUSTING By inverter
  • MAX LENGHT OF THE LABELS (BODY OR BACK) 300 mm
  • MAX HEIGHT OF THE LABEL (BODY OR BACK) 160 mm
  • MIN/MAX DIAMETER OF THE BOTTLE 55 - 110 mm
  • MAX HEIGHT OF THE BOTTLE 380 mm

6 Head Rinsing unit - fixed nozzle version – single stage (with water)

  • Capacity: up to 900 bph
  • the rinsing turret is manufactured in stainless steel AISI304. The parts in contact with the cleaning fluid are manufactured in alimentary industry-graded materials.
  • The Unit is equipped with a lifting system to adjust the distance between the grippers and the passage level to the
  • various bottle heights. The movement of the mechanical parts is made by means of a chain of gears that are of steel and plastic material alternatively to improve noiselessness.

6 Valve Counter-Pressure Filling machine with double pre-vacuum “AMERICA DPS 6”

Number of filling valves: 6

  • The base of the machine is a firmly welded structure with height adjustable supports, resistant to bending or vibration.
  • Upon the chassis is fitted:
    • the main filler support,
    • the driving system (drive motor and a worm gear reducer),
    • the helical gears which control the entry/exit star-wheels, and the worm.
  • All machine parts in contact with the product are made from stainless steel AISI 304, while all the the seals are in PTFE-EPDM-VITON, FDA certified and are resistant most common types of sanitation.
  • Perfect sterilization and faultless reliability of the system are guaranteed.
  • All parts in contact with the product are made of stainless steel

Automatic Single-Head Crowning Unit “C”

  • uitable to apply one format of Ø 26 mm crown-cork finish, on a format of glass bottles 0,33 lt. max. diam. 110 mm; bottles height range 180 / 350 mm
  • Vibrating sorter (without sound proof cover), made of AISI 304 stainless steel, with a cap level monitoring device
  • Chute, made of AISI 304 stainless steel, equipped with cap presence monitoring device.
  • Pressure-closing head with cone for permanent cap deformation
  • Device for capping-head height adjustment in order to allow extra container sizes handling.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

If you have any further questions please contact us

Image of the product

Carsten Hormes

Your Account Manager

CLICK TO CHAT ON WHATSAPP

Related Products

Image of the product

Hormes - 2015 - Sweden

Line for Non-Returnable Glass Bottles

345,000

Image of the product

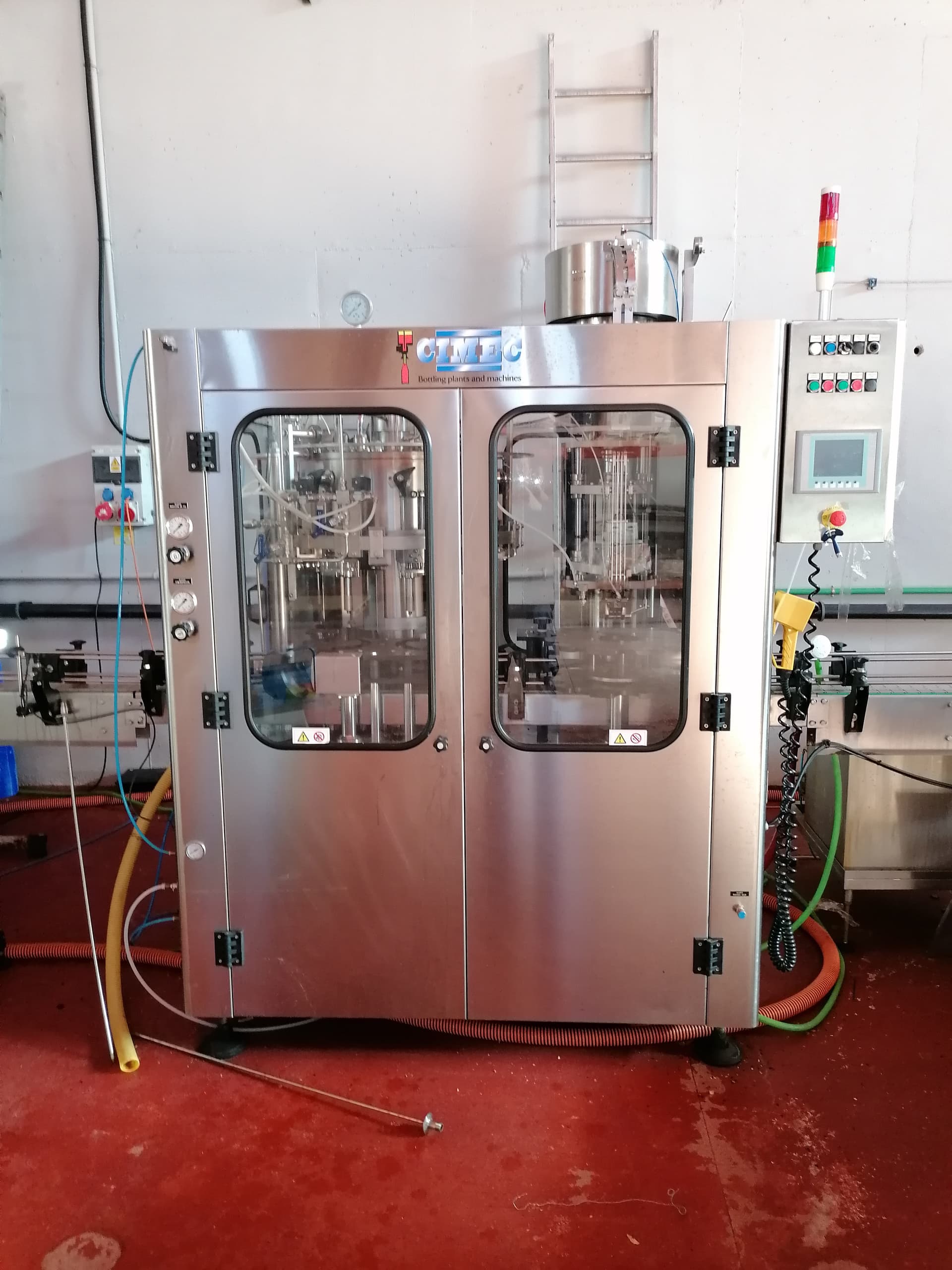

Cimec - 2016 - Spain

Non-Returnable Glass Bottles

65,000

Image of the product

Nissei ASB - 2003 - Spain

Kosme - GyM- SMI

Price Upon Request

Image of the product

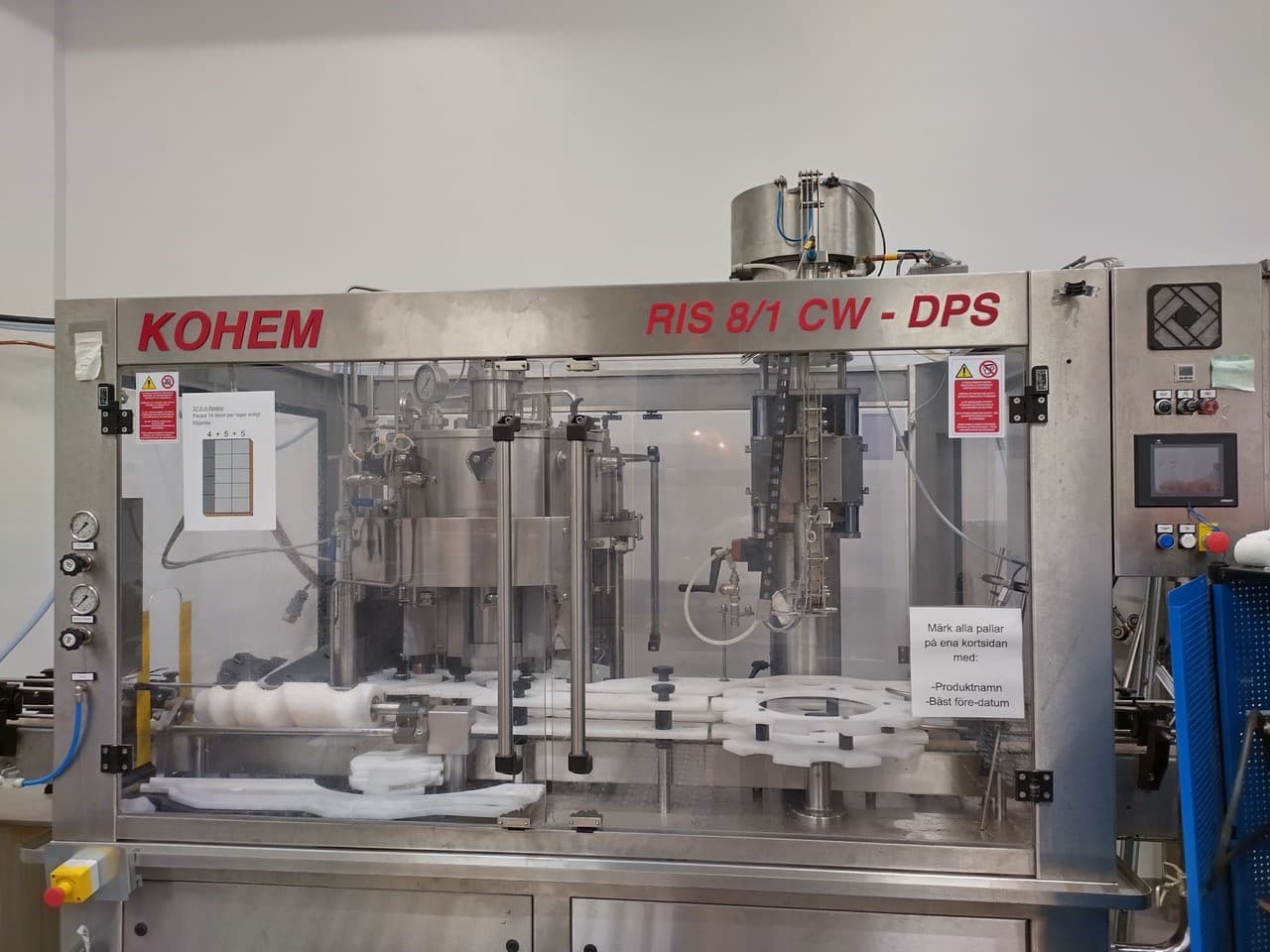

Kohem (now CIMEC) - 2014 - Sweden

Kosme - GyM- SMI

40,000

Image of the product

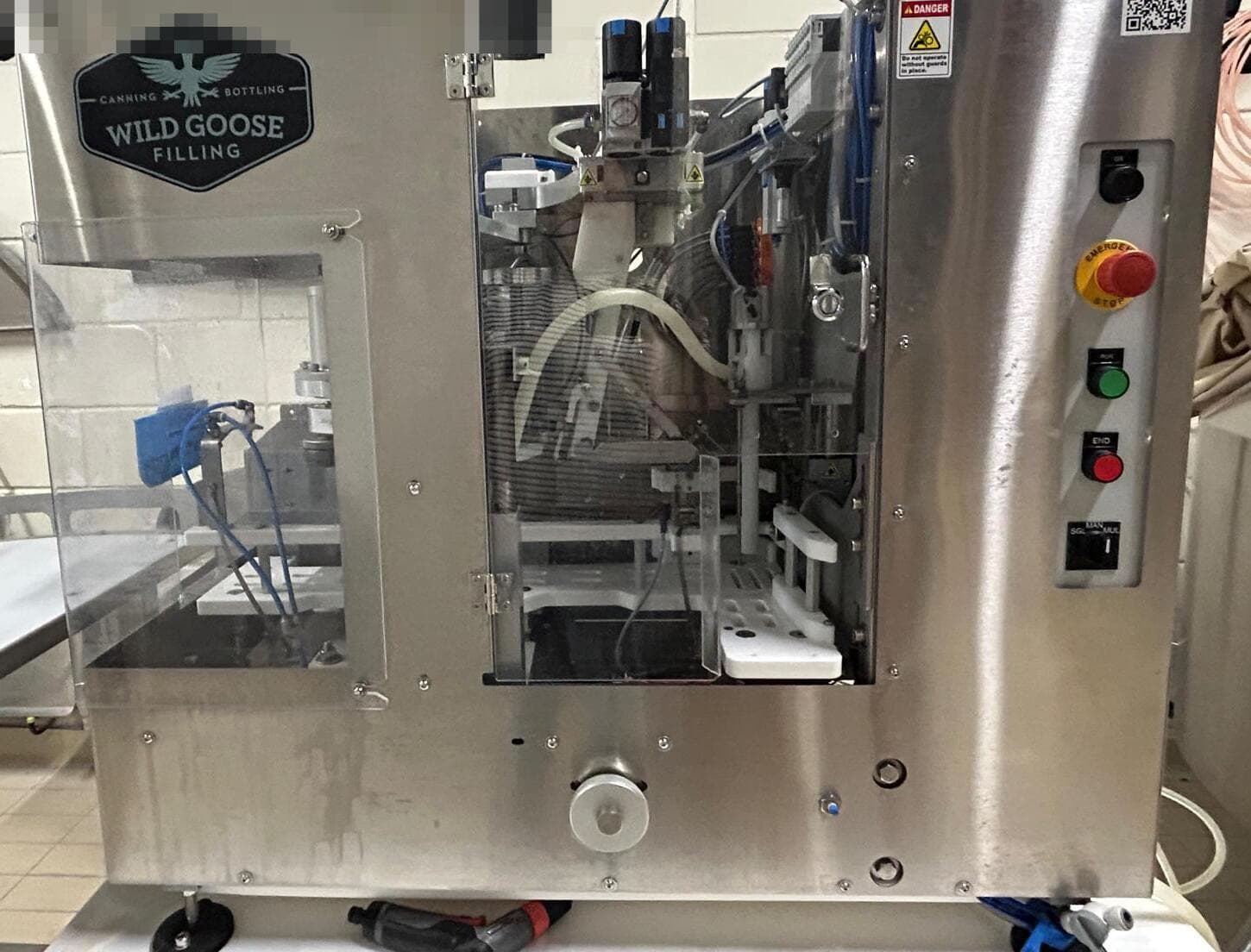

Wild Goose - 2019 - Netherlands
