JOHA - Chamber Pasteurizer (1996)
Country:Germany
Year:1996
Category:Process Technology
Manufacturer:JOHA
Model:-
Availability:Sold
SKU:DE-PRO-JOH-1996-00001
Overview
This chamber pasteurizer was manufactured in 1996 by German company JOHA (Johannes Arno Hartenstein). According to available documentation, the machine was acquired in 2021 as a unit described as overhauled and partially renewed, and the control system was renewed in 2020. The machine is immediately available and can be viewed in person.
Technical data
- Type: Chamber pasteurizer
- Heating: Steam
- Capacity / Content:
- Total chamber volume: approx. 10.3 m³
- Net usable volume: approx. 5,850 L
- Electrical connection:
- 230 / 400 V, 50 Hz
- Installed power: approx. 5.2 kW
- Current: approx. 10.5 A
- Fuse: 3 × 35 A (slow-blow)
- Protection class: IP54
- Steam connection: DN 80
- Condensate connection: DN 50
- Max. steam pressure: approx. 0.2 bar
- Steam consumption: approx. 300 kg/h
- Noise level: < 70 dB(A)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
If you have any further questions please contact us

Carsten Hormes
Your Account Manager
Related Products

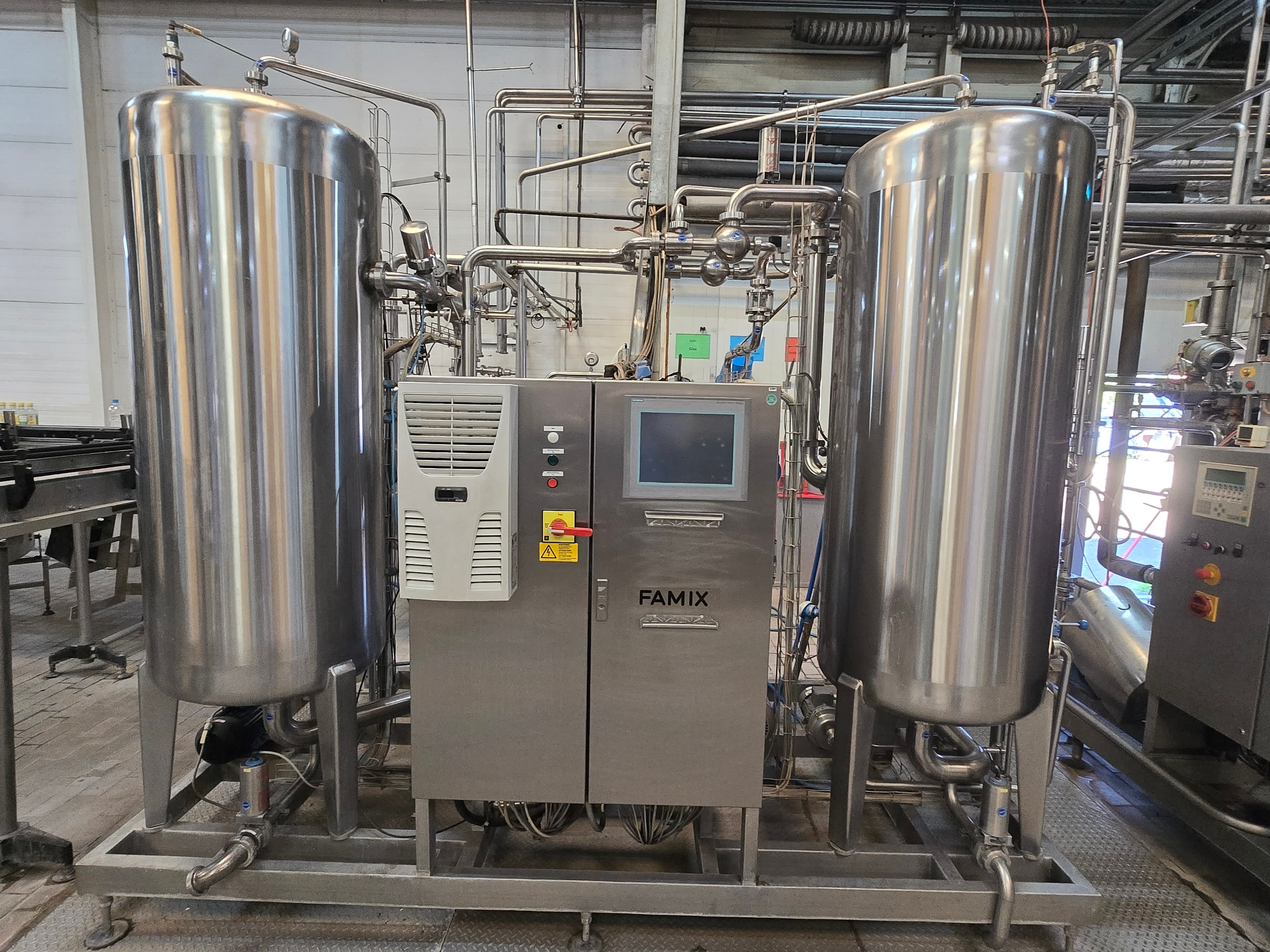

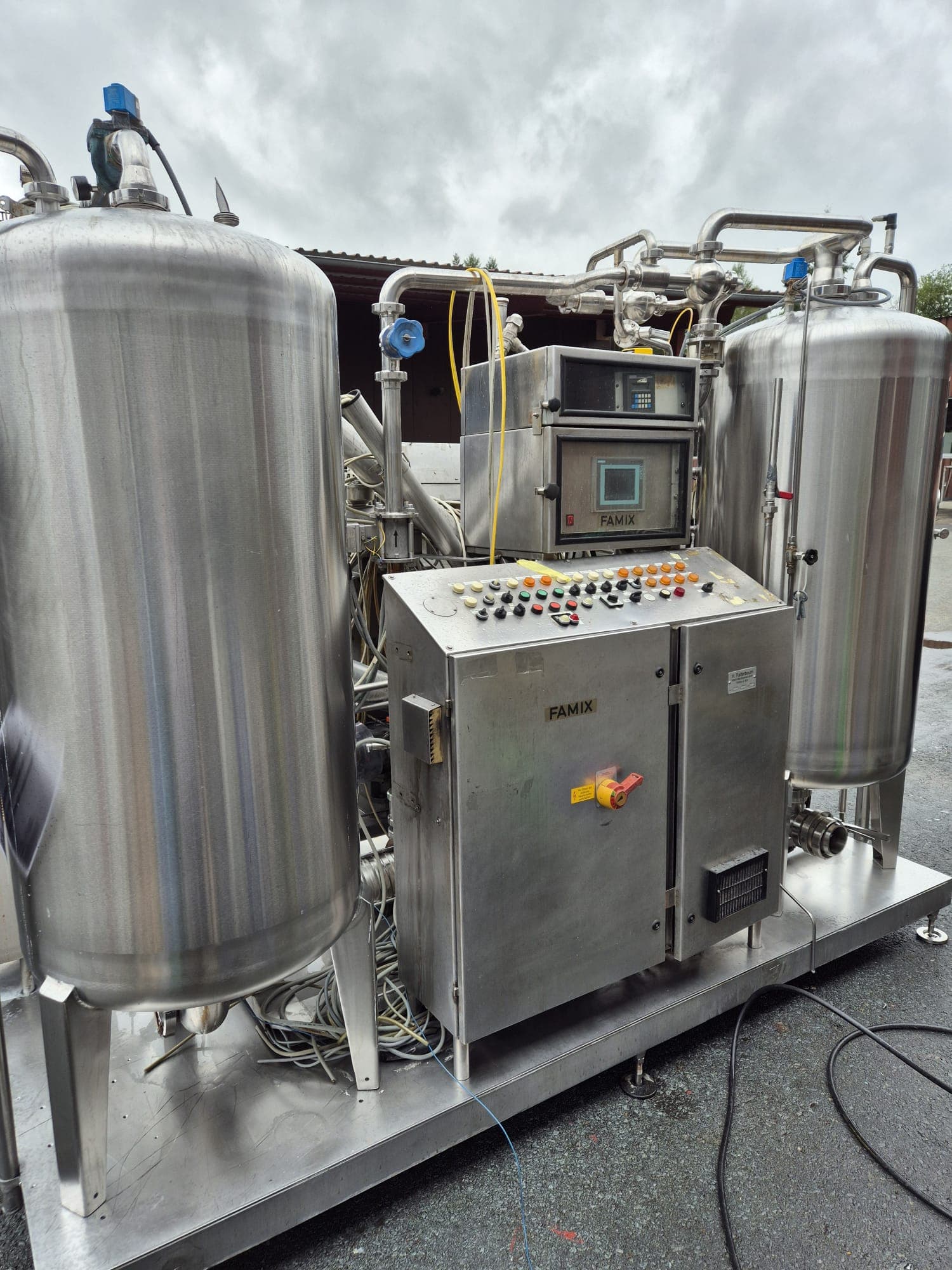

FAMIX - 2000 - Germany
Mixer
50,000 €

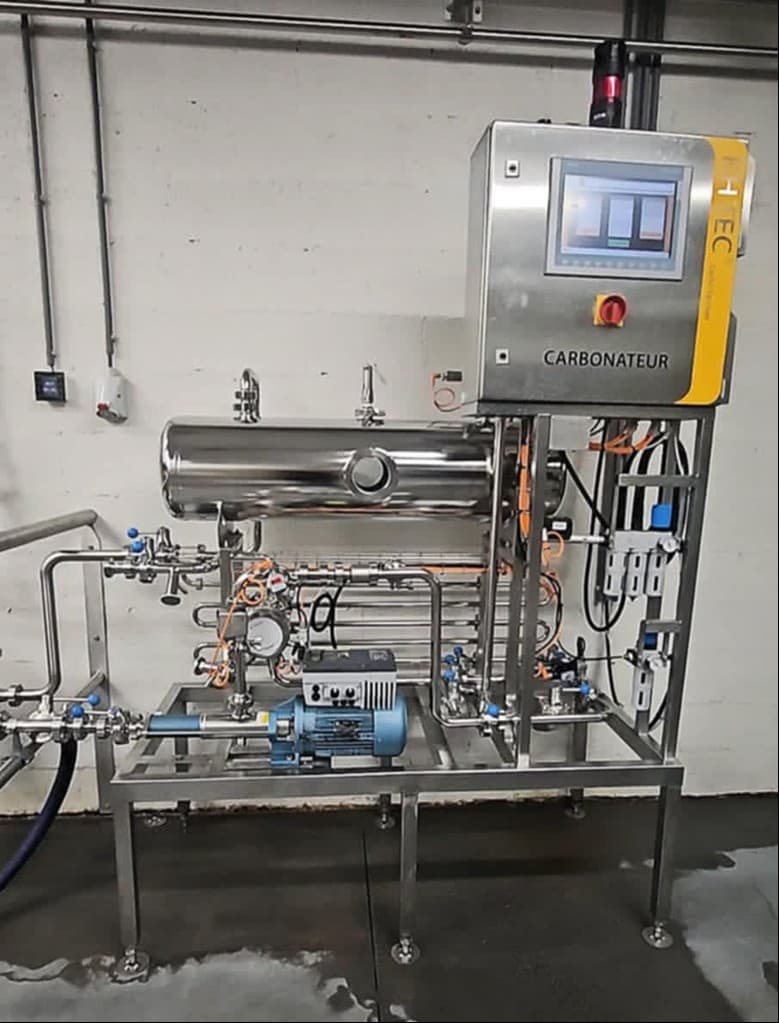

UNITEC - 2001 - Germany
Carbonating Unit
33,500 €

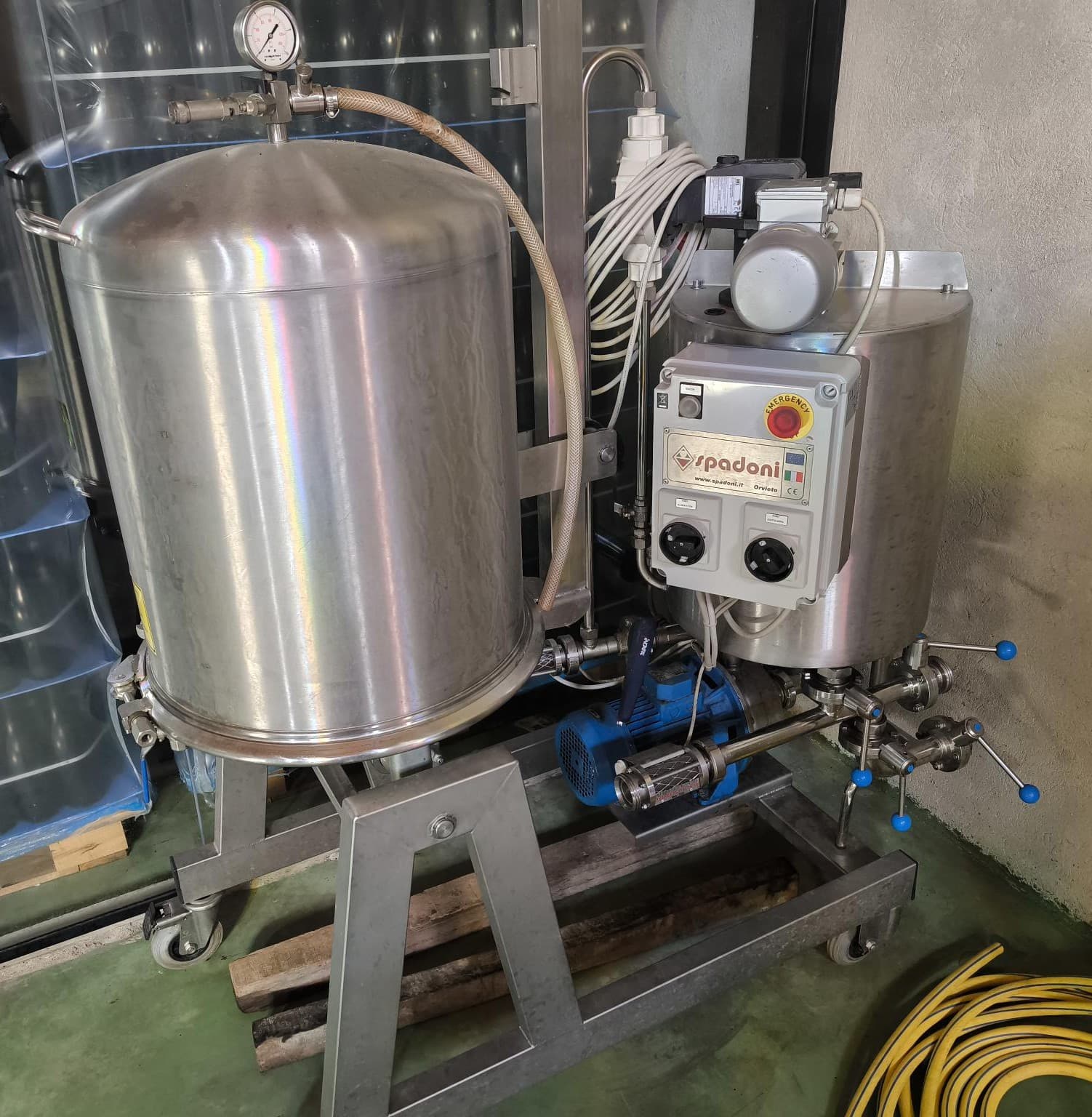

Spadoni / In.VIA - 2013 - Spain
Diatomite Filter
11,000 €

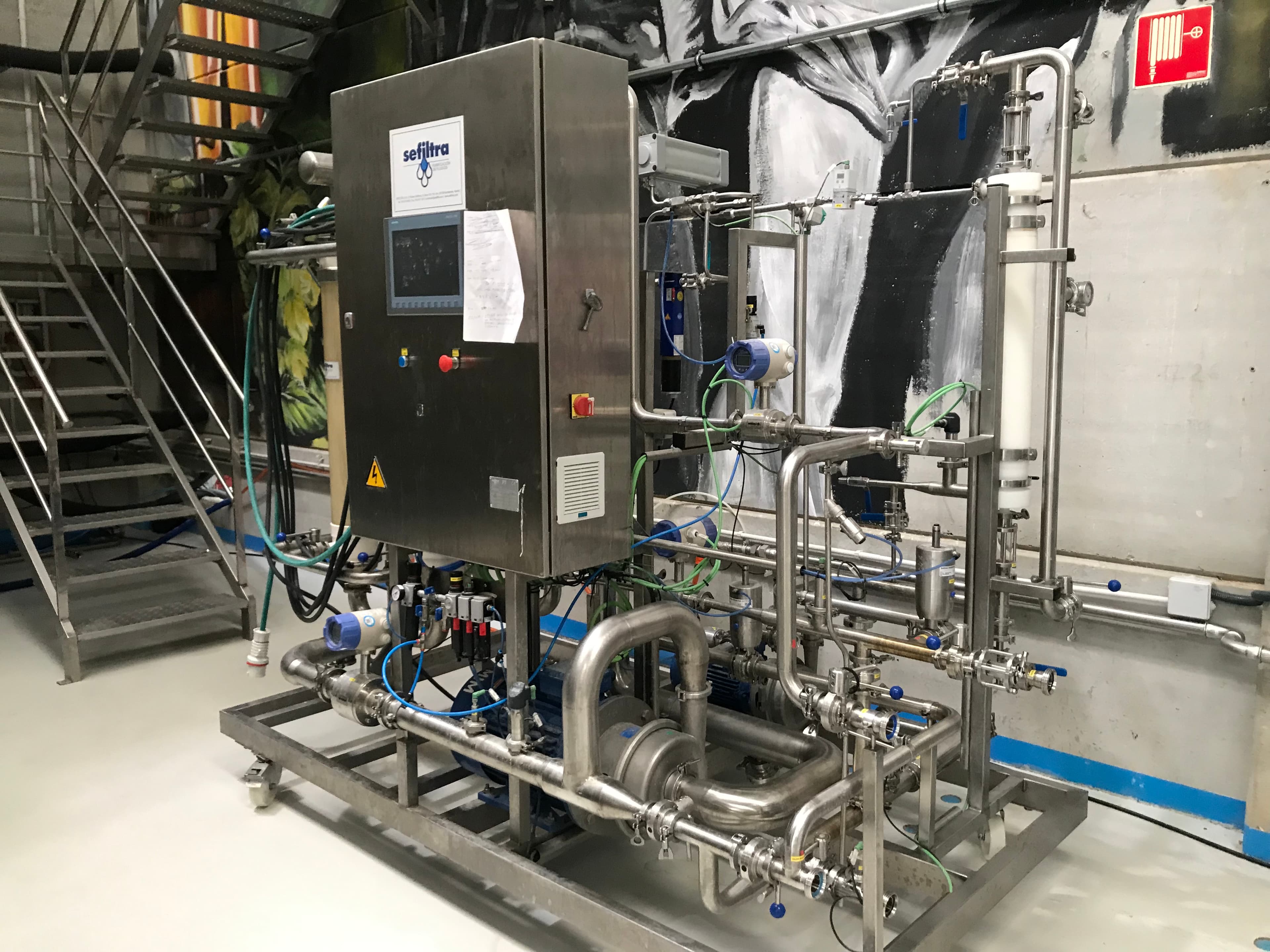

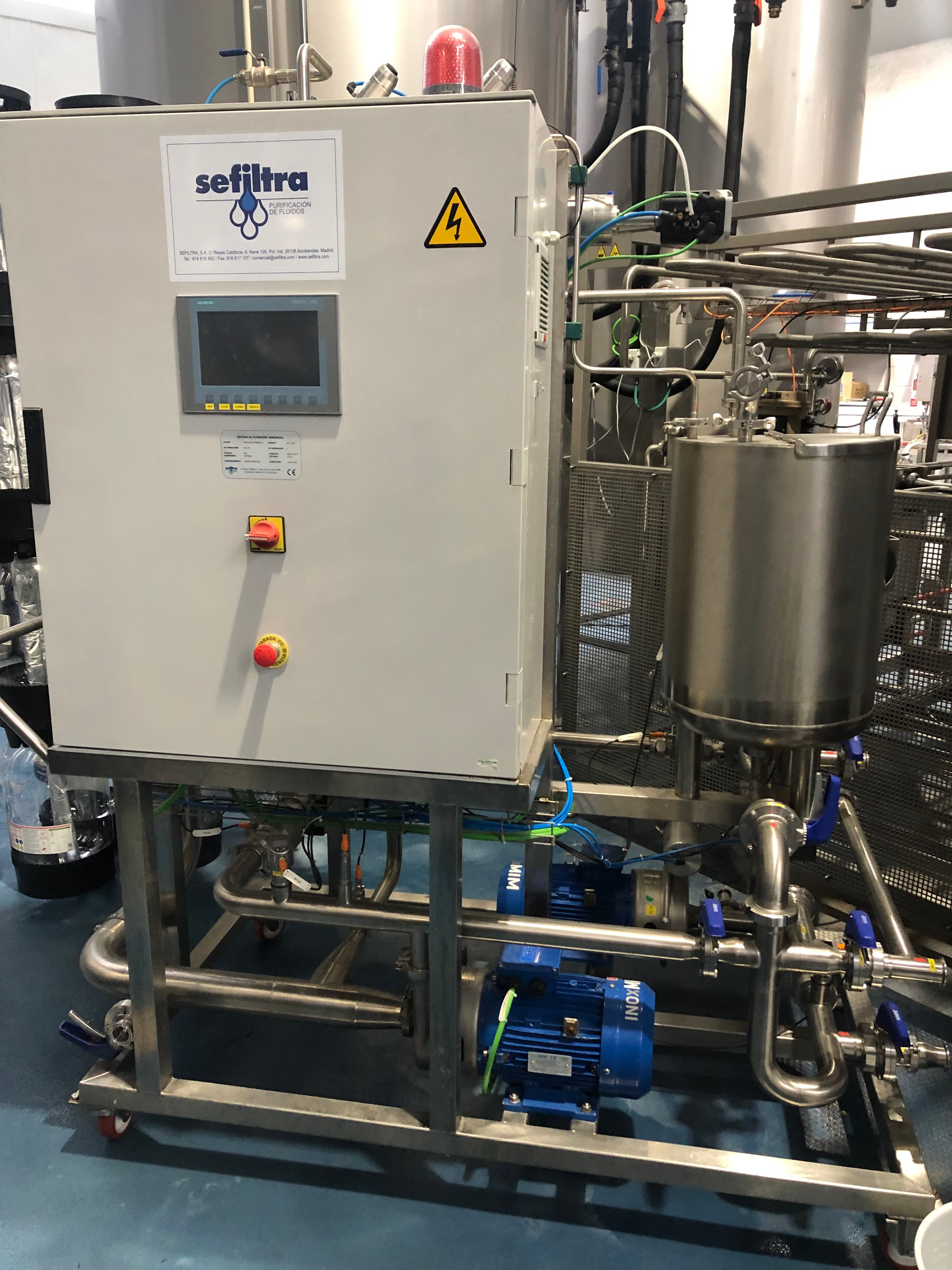

sefiltra - 2021 - Spain
Crossflow Filter
50,000 €

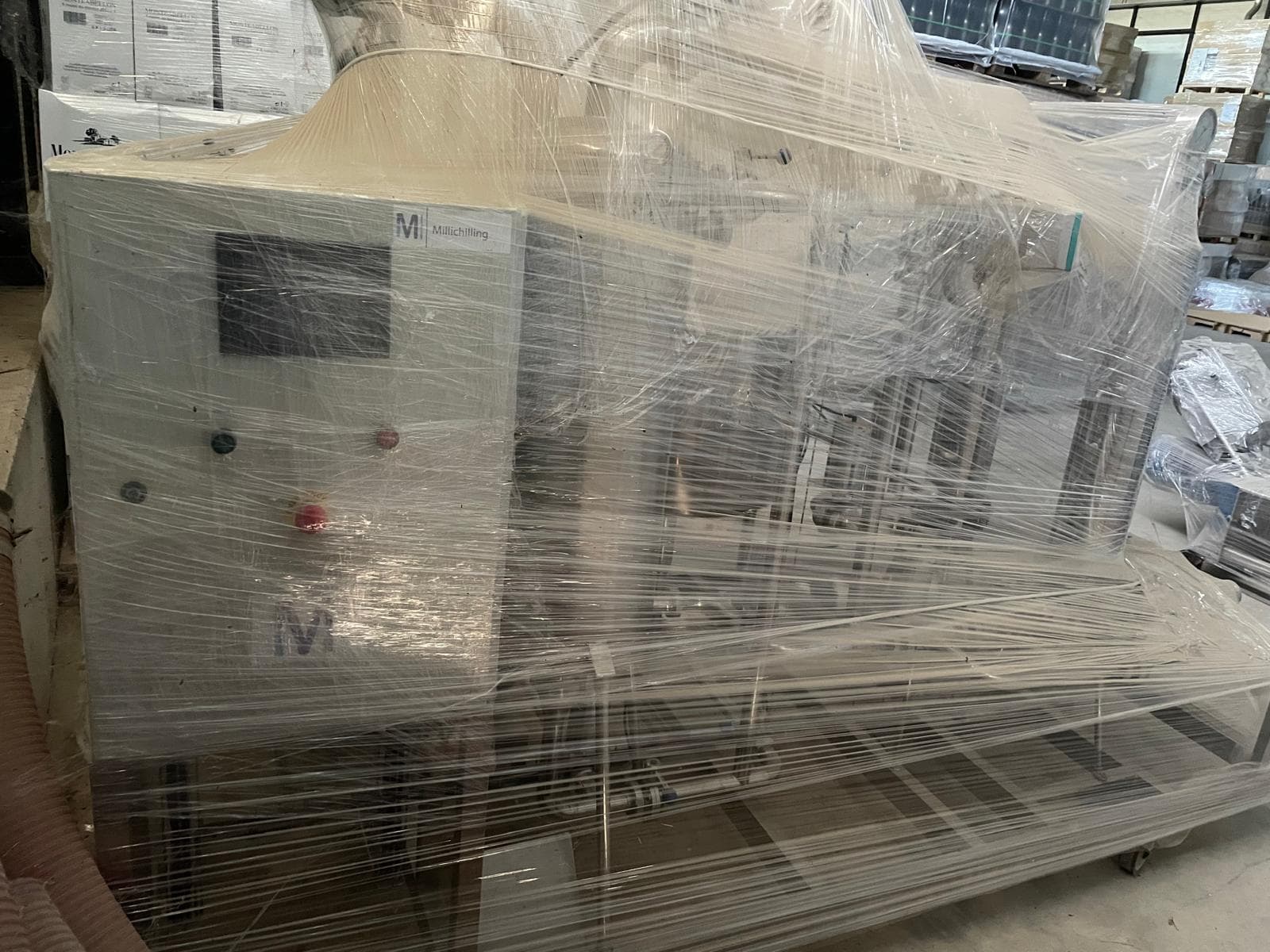

Millipore Ibérica - 2014 - Spain
Normal Flow Filtration
26,000 €

UNIPEKTIN - 1992 - Switzerland
Vacuum evaporator
137,500 €

KHS - 1992 - Germany
Mixer
20,000 €

PALL - 2003 - Germany
Crossflow Filter
32,000 €

BECA - 2024 - Germany
Crossflow Filter
175,000 €

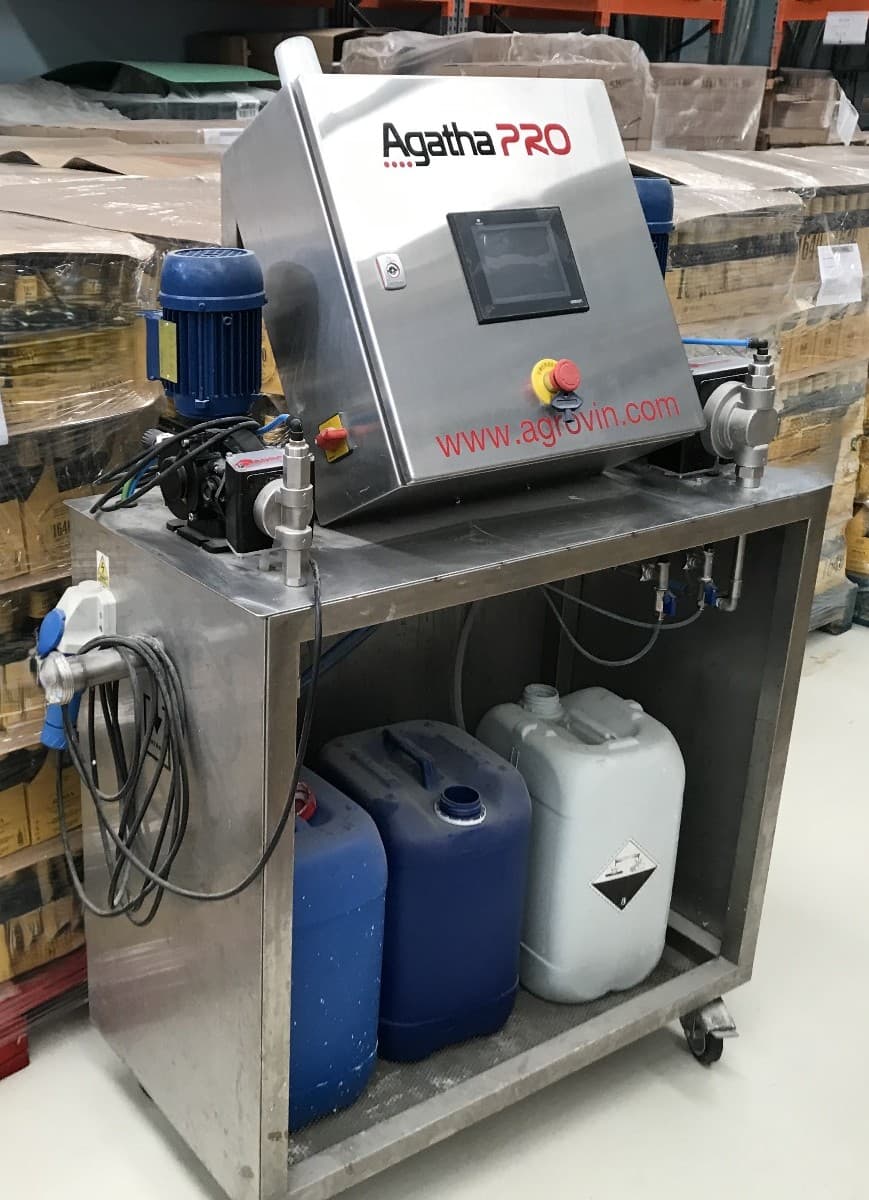

AGATHA - 2021 - Spain
Dosing system
10,000 €

ABE - 2016 - Spain
CIP Unit
9,000 €

KHS - 2013 - Netherlands
Flash Pasteurizer
75,000 €

Jakü - 2017 - Germany
Carbonating Unit
35,000 €

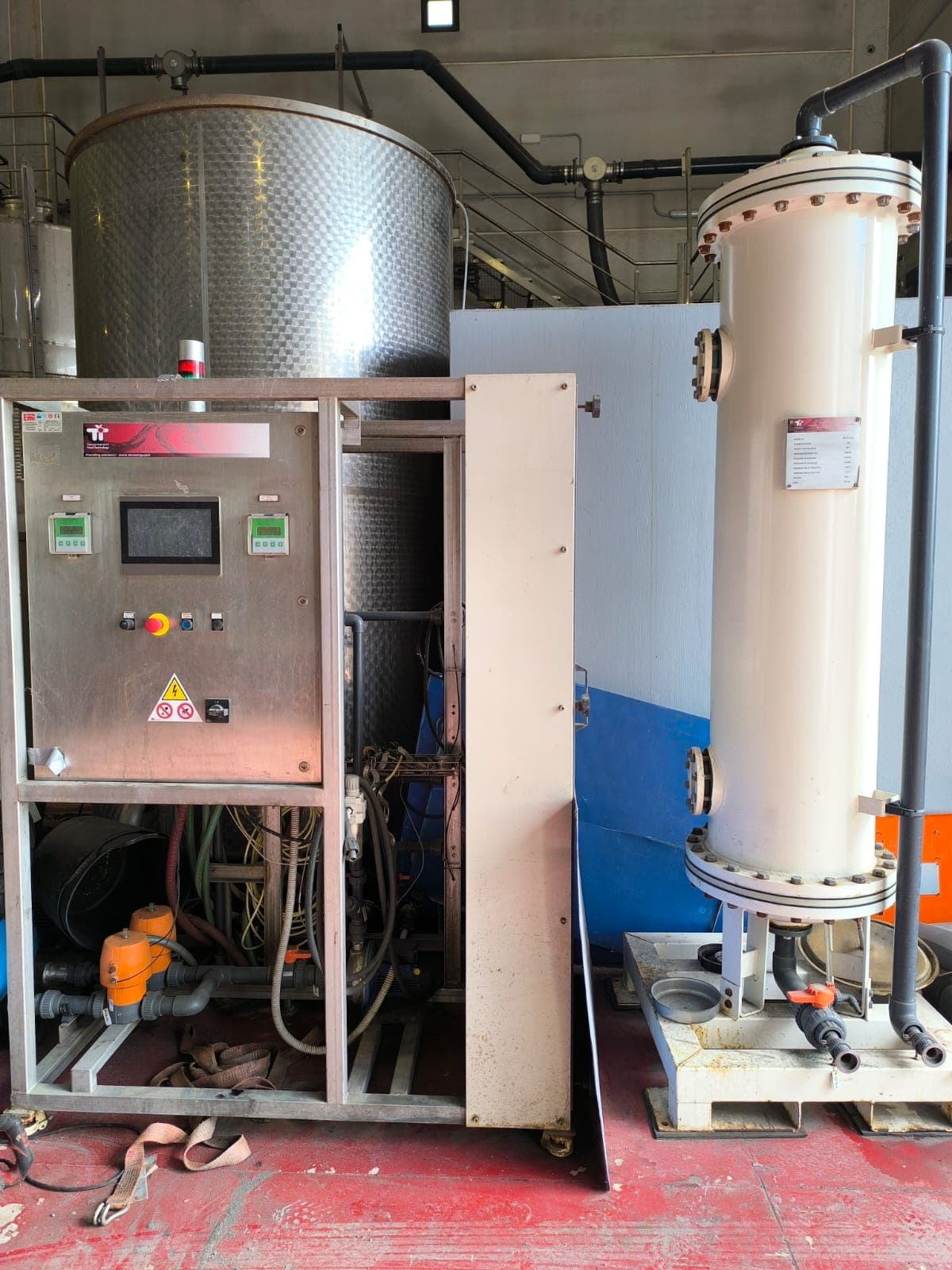

Tecnoimpianti W. T. - 2017 - Spain
