Krones Contiform, Modulfill, Variopac Line for Non-Returnable PET Bottles (2012)

Overview

Complete Krones PET line from 2012 for carbonated water in non-returnable PET bottles of 0.5 L, 1.0 L and 1.5 L, rated at 16,000 bottles/h on the 1.5 L format. The line runs from preform feeding through a blow moulder-filler-capper bloc in a clean room, beverage treatment and CIP, inspection, drying, coding and wrap-around labelling, to shrink-film packing with handle application, palletizing and stretch wrapping. A separate sleeve section with sleeve labeller, steam shrink tunnel, inspection and two dryers is included.

Technical data

• Year of manufacture: 2012
• Output: 16,000 bottles/h (1.5 L)
• Product: carbonated water
• Bottles: PET, 0.5 L, 1.0 L and 1.5 L
• Labeller: up to 20,000 bottles/h
• Packer, palletizer and stretch wrapper: up to 24,000 bottles/h
• Packs: shrink-film packs with carry handle, 3x2 and 4x3
• Pallets: 800 x 1200 mm and 1000 x 1200 mm
• Electrical: 380/220 V, 3/N/PE, 50 Hz

Scope of Delivery

• Preform feed unit | Krones | CONTIFEED | with tilting device for the preform hopper | 2012
• Preform interior cleaning | Krones | PREJET | 2012
• Stretch blow moulder | Krones | CONTIFORM S8 | 16,000 bottles/h (1.5 L) | 2012

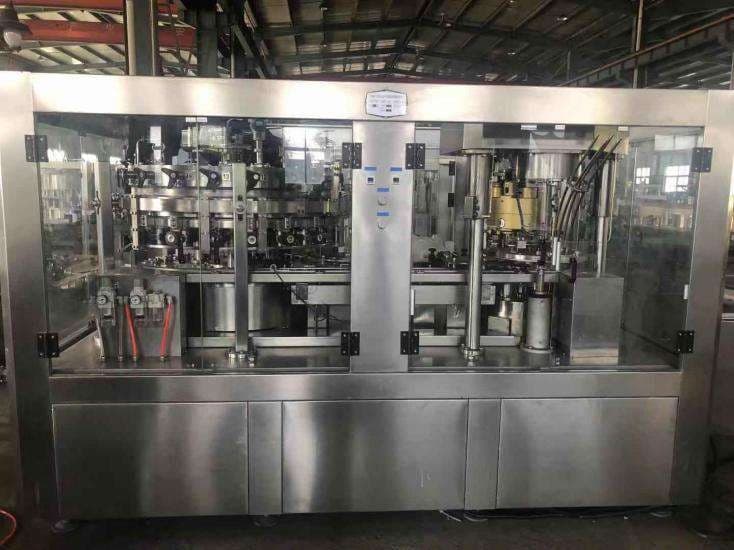

• Filler-capper | Krones | MODULFILL VFS | 60 filling valves, 16,000 bottles/h (1.5 L) | 2012
• Clean room | Krones | for the blow moulder-filler-capper bloc | 2012
• Closure conveyor | Krones | 2012
• Beverage treatment | Krones | CARBOFLOW | 2012
• CIP system | Krones | VARIOCLEAN | 30 m³/h | 2012
• Container conveyors | Krones | SYNCO | 2012
• Inspection machine | Krones | CHECKMAT 707 | 2012
• Container dryer | Krones | LINADRY | 2012
• Container coding | Videojet | inkjet coder | 2012
• Labelling machine | Krones | CONTIROLL COMBI | wrap-around OPP labels, up to 20,000 bottles/h | 2012
• Inspection machine | Krones | CHECKMAT 731 | 2012
• Sleeve labeller | Krones | SLEEVEMATIC | 2017
• Steam shrink tunnel | Krones | SHRINKMAT
• Inspection machine for the sleeve section | Krones | CHECKMAT
• 2 container dryers for the sleeve section | Krones | LINADRY | 2017
• Pack conveyors | Krones | MULTICO | 2012
• Shrink-film packer | Krones | VARIOPAC PRO FS | 3x2 and 4x3 packs, up to 24,000 bottles/h | 2012
• Handle applicator | Krones | VARIOSTICK | 2012
• Palletizer | Krones | MODULPAL | 800 x 1200 and 1000 x 1200 mm pallets, up to 24,000 bottles/h | 2012
• Pallet conveyors | Krones | PALCO | 2012
• Stretch wrapper | Robopac | 2012
• Electrical power distribution for the line | Krones | 2012

Condition

Dismantled and stored. Inspection on site by appointment.

Availability

Available immediately. Location: Georgia.
