Krones Emmeti, Kisters, Haloila Line for Non-Returnable Glass Bottles (2019)

650,000 (ExWorks)

Get an official quote

Country:

Ireland

Year:

2019

Category:

Complete Filling Lines

Manufacturer:

Krones

Model:

Emmeti, Kisters, Haloila

Availability:

Immediately

SKU:

IE-COM-KRO-2019-00002

Overview

This complete filling line for single-use glass was delivered in 2019. Commissioning was stopped in Q1 2020, and resumed in Q4 2021. The line has been running 2/3 days per week since Q4 2021. The line can do 20 variations of bottles including 300ml, 330ml, 500ml, 568ml & 650ml.

Components

  • Depalletiser | Emmeti | MT565 | 2016
    • Siemens Simatic controls, Harford control panel.
    • Bottle outfeed conveyor, plastic chain-link 1400 mm x 9.6 m
  • Krones Glideliner
    • Accumulator with tapered outfeed, 850 mm to 350 mm wide
  • Empty bottle inspector | Krones | Linatronic | 2003
    • 60,000 bottles per hour
    • Throughfeed stainless steel slat chain conveyor
    • Height adjustable legs complete with dust canopy.
    • Left to right orientation

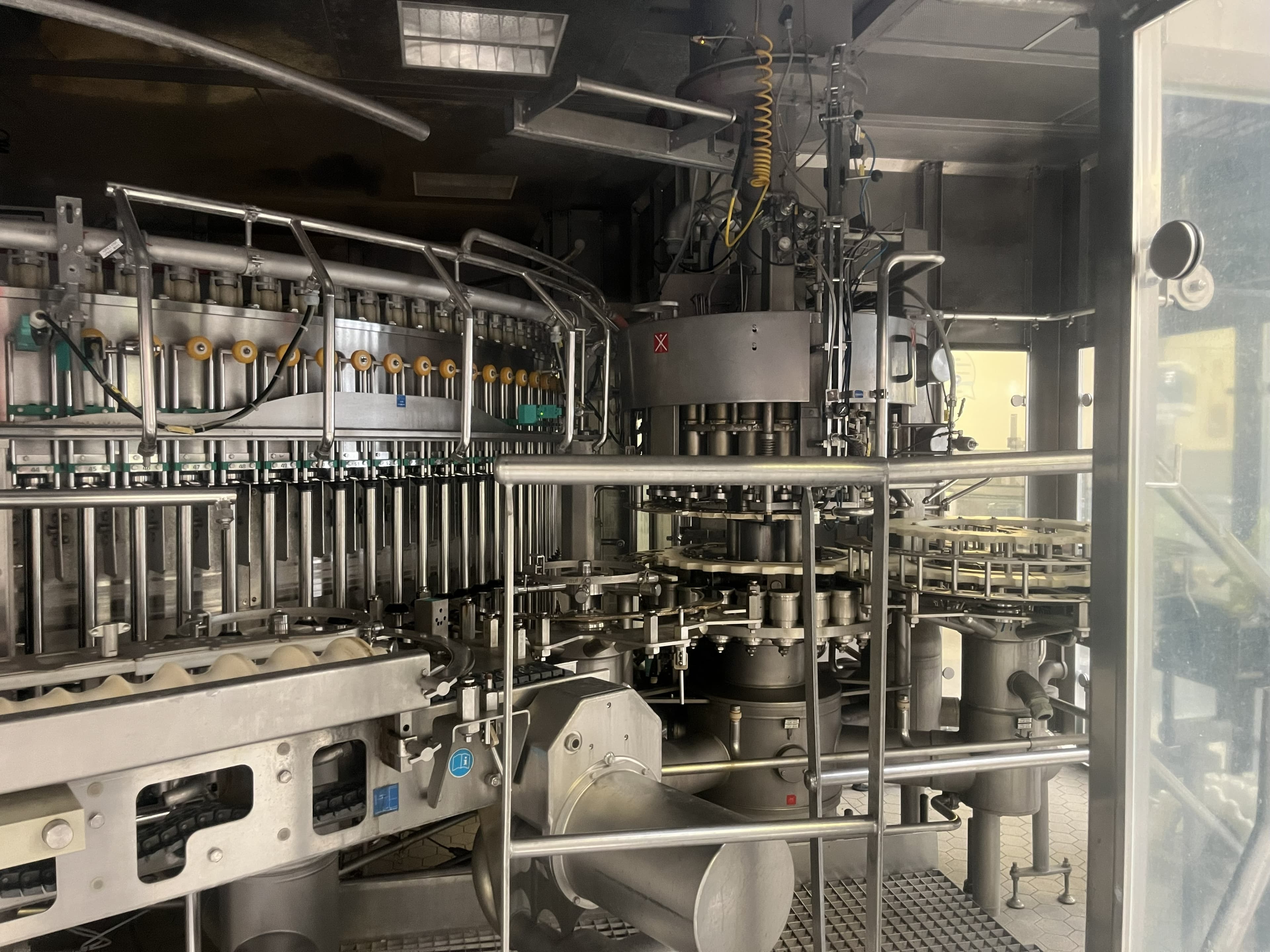

  • Filling block for glass | Krones |  2003 rebuilt 2018, installed 2019
    • Capacity: 50.000 bottles/h at 0,33 l long-neck glass bottle
    • Formats: 0,33 l long-neck and 0,5 l glass bottle
    • Direction L-R
    • Filling product Beer at 4°C
    • Co2-content 5,6 g/l
    • ProLeit process control system, control console, Siemens S7-400, machine enclosure with
    • Adjustable stainless-steel legs
  • Rinser | Variojet | 2004
    • 88 rinsing nozzles, electro-pneumatic valve control
    • 2-channel-execution, channel 1 sterile water, channel 2 sterile air
  • Filler | Sensometic VP-VI 110-22-103 | 2002
    • 110 filling valves, product contact and gas-contact parts in stainless steel
    • High-pressure injection system with automatic pressure control system
  • Crown capper
    • 22 capping heads, motoric height adjustment system
  • Fill level control | Krones Checkmat 731 | 2019
    • Automatic throughfeed fill level and inspection system
    • With conveyor mounted cap and fill level sensors, pneumatic reject device.
  • SEN twin deck bottle pasteurizer
    • 38,000 bottles per hour,
    • 5 m wide, 6 zone, 15 m throughfeed,
    • Steam connections, circulatory pumps, part stainless steel cased, top and bottom deck
  • Labeller | Krones Topmatic | 1800-45-8-9-130 | 2001
    • 3-head
    • Orientation: Left to right
    • Front, back & neck label application, 3 x Krones Unipump-4 adhesive pumps,
    • Domino type D620i laser coding machine with Domino DPX 1000 control
    • Krones Checkmat label placement inspection system (sensor on 4 th starwheel)
    • Packaging Creative Systems in feed and outfeed labeller conveyors
  • Multi pack system | Riverwood International | Autoflex 1500 | 2003
    • 4 & 6 bottle carry pack
    • Bottle diameter 51 – 70 mm
    • Bottle height 152 – 330 mm
  • Kisters Combiline 420/50 automatic case packing machine
    • Automatic wraparound case packing, 50 cases per minute
    • Siemens Simatic touch panel controls
    • Nordson Problue Liberty 14 hot melt glue application
    • Videojet 3330 laser coding system
    • Outfeed shrink tunnel
  • Krones Multidivider automatic throughfeed case lane divider and positioning system with outfeed
  • Kettner Pressant Universal case palletiser
    • Layer type with empty pallet magazine and infeed,
    • photoelectric guards
  • Haloila Octopus automatic rotary ring pallet stretch wrapping machine, 2400 mm maximum pallet
  • Extensive conveyors available
  • Safety enclosures

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

If you have any further questions please contact us
