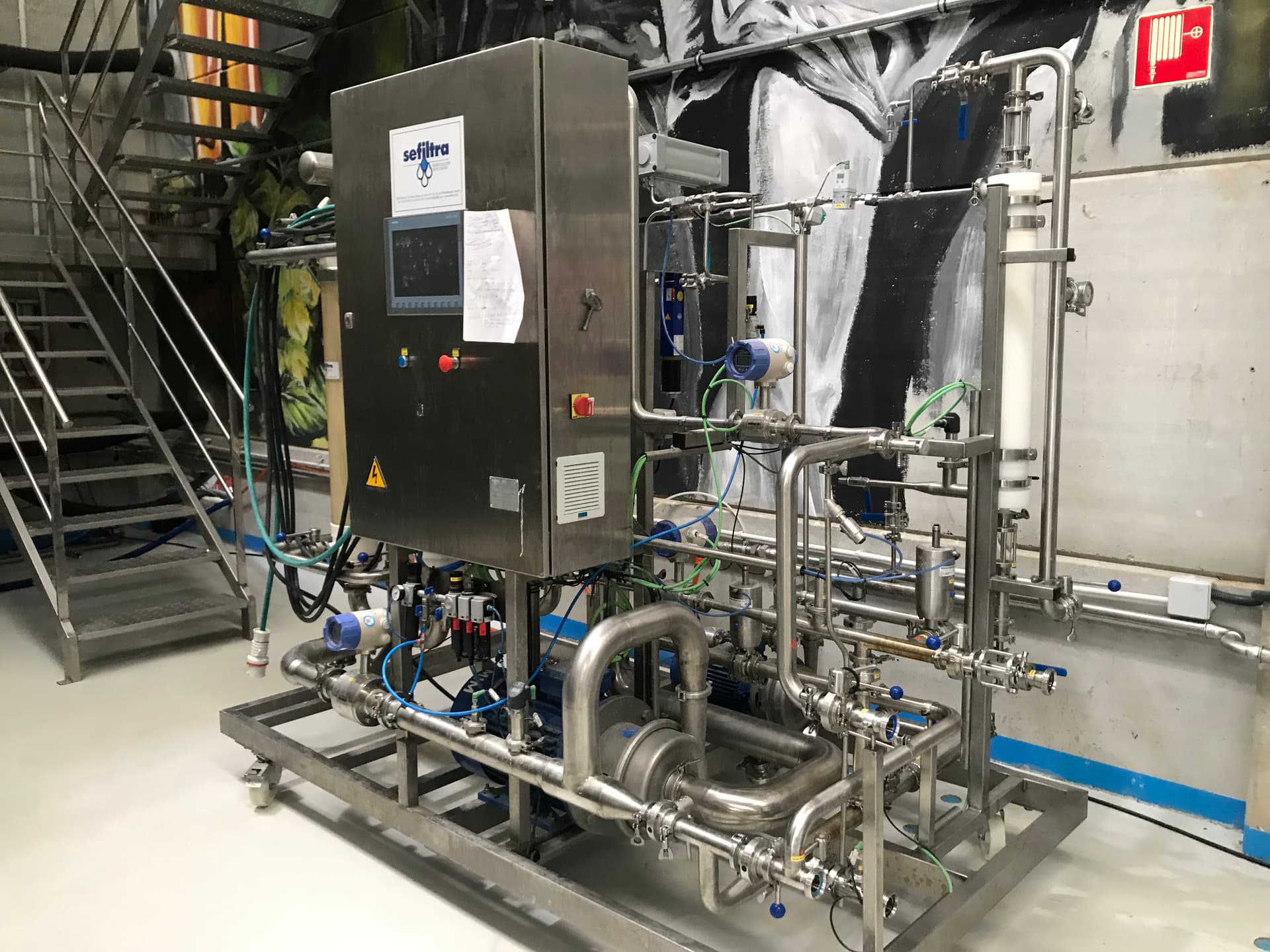

sefiltra BF2-S SEF Crossflow Filter (2020)
27,500 € (ExWorks)
Get an official quote
Get an official quote
Fill in the information below to receive an official quote on the machine you have selected.
Country:
Spain
Year:
2020
Category:
Process Technology
Manufacturer:
sefiltra
Model:
BF2-S SEF
Availability:
Immediately
SKU:
ES-PRO-SEF-2020-00001
Overview
The tangential filter was manufactured in 2020 by Spanish manufacturer Sefiltra. It can be visited anytime. The structure is made of AISI-304 stainless steel; it has four wheels and a handle for its wheels and a handle for its displacement. All pipes and accessories are made of AISI-316L, Stainless Steel AISI-316L. The system is operated from the SIEMENS KTP 900 color touch screen, which is located on the front of the electrical panel.
Techn. Details
- Capacity: depending on beer type, recently 1,000 – 1,500 litres per hour
- Unitary filtration surface: 10 m²
- Two 0.5 micron hollow fiber membranes
- Dimensions (LxlXh): 1.800 x 950 x 2.300 mm
- Weight empty: 350 Kg
- Operating weight: 470 Kg
Equipment
- 1 pc Centrifugal feed pump 3.0 kW
- 1 pc Recirculation centrifugal pump 4,0 kW
- 2 pc Diaphragm HF 6043 MF 05 (KDP3358)
- 1 pc Modulating valve
- 5 pcs Pneumatic valves
- 1 pc 100 L CIP tank
- 1 pc Angle filter 500 microns
- 3 pc Electromagnetic flowmeters
- 5 pc Pressure transmitters
- 1 pc Temperature transmitter
- 1 pc Level transmitter
- 1 pc Liquid detector
- 1 pc Electrical panel with Siemens S7-1200 programmable logic controller and touch screen
- Siemens 7" touch screen
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
