SEMA - Palletizer (2018)

Country:

Germany

Year:

2018

Category:

Palletizing

Manufacturer:

SEMA

Model:

-

Availability:

Sold

SKU:

DE-PAL-SEM-2018-00001

Overview

The palletizer and wrapper were manufactured by German companies sema and Liegat respectively in 2018 and until recently were part of a filling line at a large German dairy company. The palletizer and wrapper are now becoming available as the owner is investing in a completely new line.

Technical data

Palletizer | SEMA | - | 2018

  • Capacity: 695 crates/ h (at 0.5l)
                    1,333 crates/ h (at 1.0l)
  • Formats processed: Glass bottles 0,5l + 1,0l
  • Bottles in the crate: 12 (0,5l)/ 6 (1,0l)
  • Formation in the crate: 3x4 (0,5l)/ 2x3 (1,0l)
  • Layers per pallet: 6 (0,5l)/ 5 (1,0l)
  • Crates per layer: 12 (0,5l)/ 16 (1,0l)
  • Number of heads: 1
  • Type of head: transfer plate
  • Euro pallet (1200mm x 800mm x 144mm)
  • Min./ Max. Pallet height (incl. pallet): 600mm/ 1700mm

Wrapper | Liegat | LITOMAT V 300 | 2018

  • Capacity: 60 pallets/ h

Scope of supply

Protective fence, empty pallet magazine, pack and pallet conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

If you have any further questions please contact us

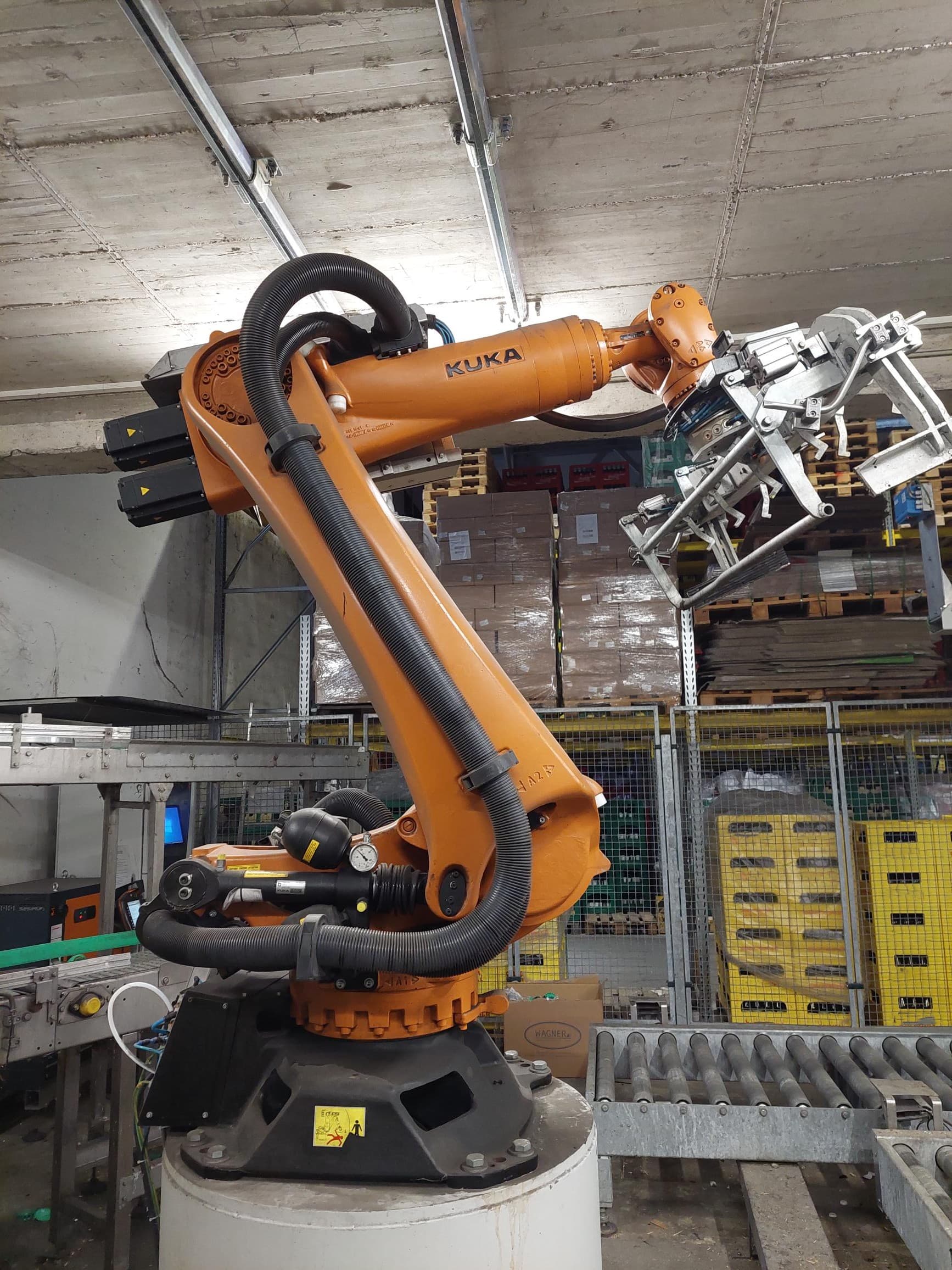

Image of the product
