Sraml I12P12PT Line for Non-Returnable Glass Bottles (2022)

Country:

Netherlands

Year:

2022

Category:

Complete Filling Lines

Manufacturer:

Sraml

Model:

I12P12PT

Availability:

Sold

SKU:

NL-COM-SRA-2022-00001

Overview

The filling line consists of a filler block (rinser, filler, capper) and a labeler. Both machines were built in 2022 and are vacant due to a change in production. Milk was bottled last.

Technical data

  • Rinser/ Filler/ Capper | Sraml |I12P12PT | 2022
    • Capacity: 3000 bph
    • Direction of rotation: clockwise
    • Number of filling valves: 12 (gravity filling)
    • Number of capping heads: 1
    • Type of container closure: steam rotary closures
    • Format parts included: 250 ml, 750 ml, 1000ml (Other formats possible with additional equipment)
    • Container type: glass (conversion to PET possible)
    • Filling temperature: suitable for cold filling & hot filling
    • Steam consumption at 3 bar: 20 kg/h
    • Compressed air: 600 l/h, 6-8 bar
    • Dimensions (LxWxH): 2670mm x 1310mm x 2280mm
    • Weight: 2000 kg
    • Electrical connected load: 3kW
    • Supply voltage: 3|N|PE~400|230 50 HZ
  • Labeler | Etipack | System 5/2 Active with Energy 200 labellers | 2022
    • Front label - back label - closure seal
    • Speed: 20 m/min
    • Label sizes
      • Length 20mm - 350mm
      • Height 20mm - 198mm
    • Label roll size
      • Outer diameter 280 mm
      • Inner diameter 40 - 76 mm
    • Dimensions (LxWxH): 3500 mm x 1970 mm x 1470 mm
    • Weight: +/- 480 kg
    • Electrical power: 1,7 kW
    • Supply voltage: 115-230V., one phase 50-60 Hz
    • Durability printer: Domino G20i included

More pictures, videos and technical documentation available on request.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

If you have any further questions please contact us

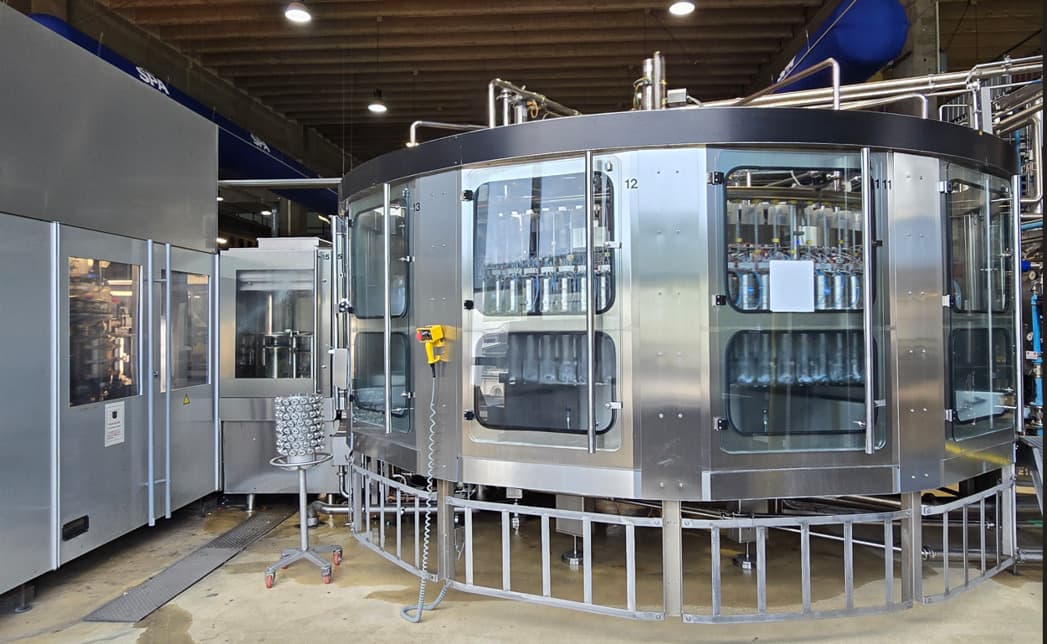

Image of the product
